GRT655/655L OPERATOR MANUAL OPERATING PROCEDURES
Setting the Boom Angle Limitation
If the Boom Angle Limitation is selected from the menu of
WRL limitations, the Boom Angle Limitation Screen will be
shown (Figure 4-44).
Using the Left Arrow and Right Arrow function on the
Navigation Control Pad or the Jog Dial changes the object
highlighted on the screen. As the arrow keys are pressed,
the highlight will move between the objects, with the color
orange typically meaning that the object is selected and can
be affected by subsequent actions. In Figure 4-44, one can
see that the symbol for the maximum boom angle is
selected since it has the orange color highlighting. Table 4-7
shows the objects available on the Boom Angle Limitation
Screen. Note that the boom angle cannot be typed in (as is
possible with the Height Limitation).

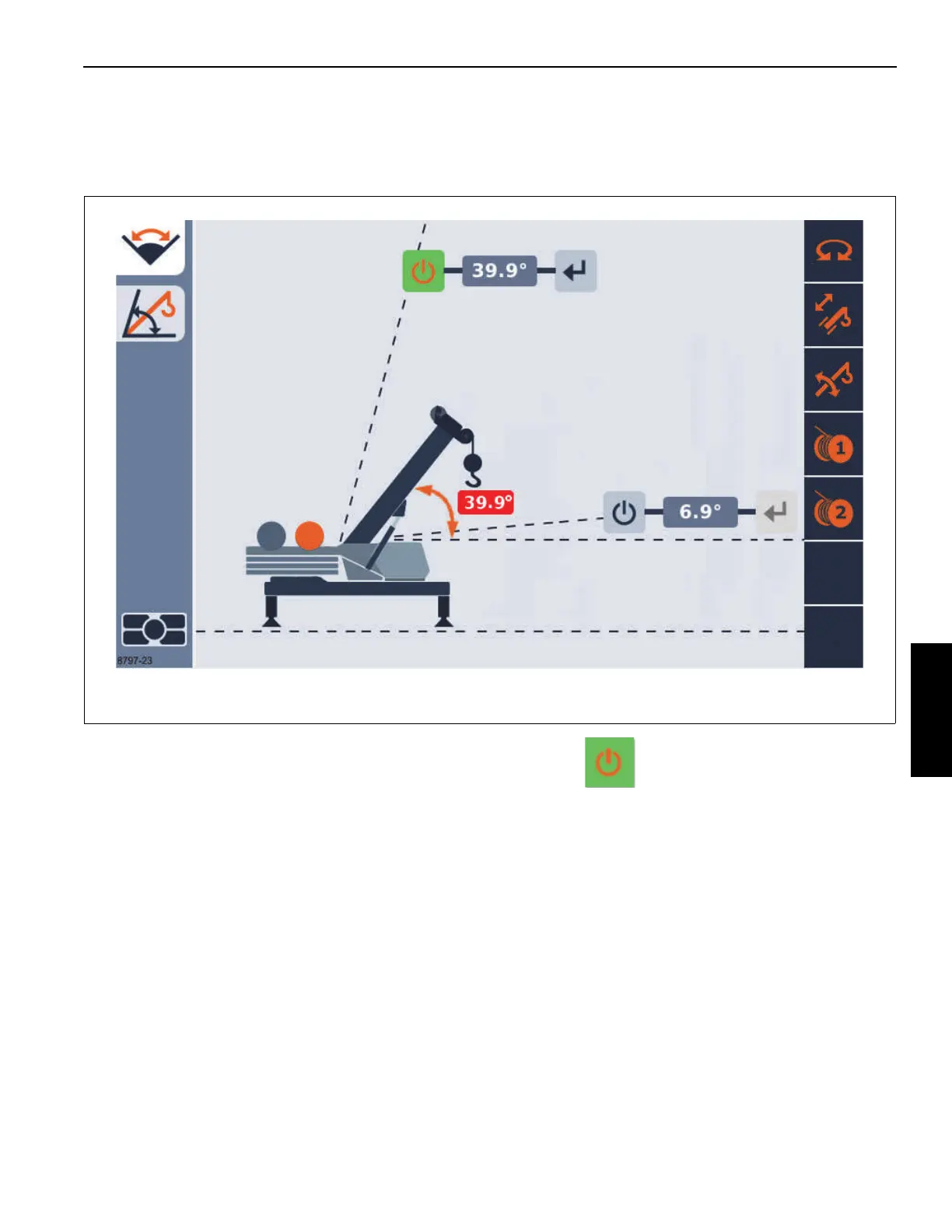

FIGURE 4-44
8797-23
Boom Angle Limitation Screen
