5-18 Published 3-23-2020, Control # 654-04

SET-UP AND INSTALLATION GRT655/655L OPERATOR MANUAL

FIGURE 5-15 continued

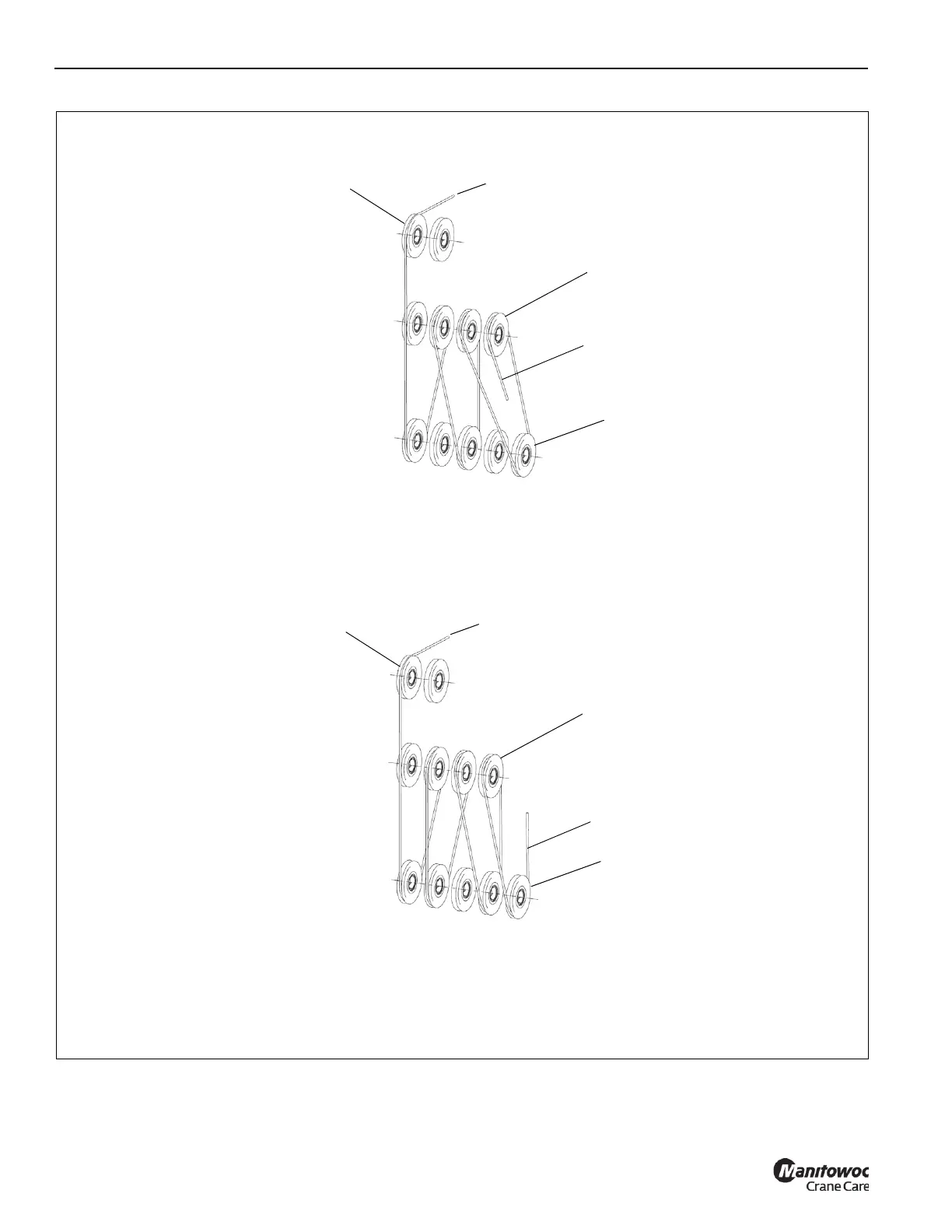

8 Parts Line - 5 Sheave Hook Block

Boom Nose

Dead End

Lower Boom

Nose Sheaves

To M ain H o is t

Hook Block

Sheaves

8993-3

Upper Boom Nose

Sheaves

Hook Block

Dead End

Lower Boom

Nose Sheaves

To Main Hoist

Hook Block

Sheaves

Upper Boom Nose

Sheaves

8993-4

7 Parts Line - 5 Sheave Hook Block
