Maple Systems Silver Series - Security Settings; Rep Re Sent Ing PLC Coil Reg Is Ters; The Bit Lamp ob Ject

60066 Common window: Attribute
60067 Extra No. of Events
60068 RTC Source
60069 Printer:Printer
60070 Message board window No.
Security Settings
Address Function Access Description
60071 Security Control R/W
0=Disables all security control passwords
1=Enables Security control of windows
60072 Password for: Level 0 R/W Contains password value (2 words, 32-bits)
60074 Password for: Level 1 R/W Contains password value (2 words, 32-bits)
60076 Password for: Level 1 R/W Contains password value (2 words, 32-bits)
If Recipe: Save System Parameter: is set to "Yes", then set a bit of LB:9044 to ON will restore these system
parameters from these recipe word memory.
Rep re sent ing PLC Coil Reg is ters
PLC coils (or binary registers) and internal coils of the OIT are represented using three parts: the Bit Lamp Object,
the Set Bit Object, and the Toggle Switch Object. Each has a particular function that makes them unique but they
are all constructed and used in essentially the same manner.
The Bit Lamp Ob ject

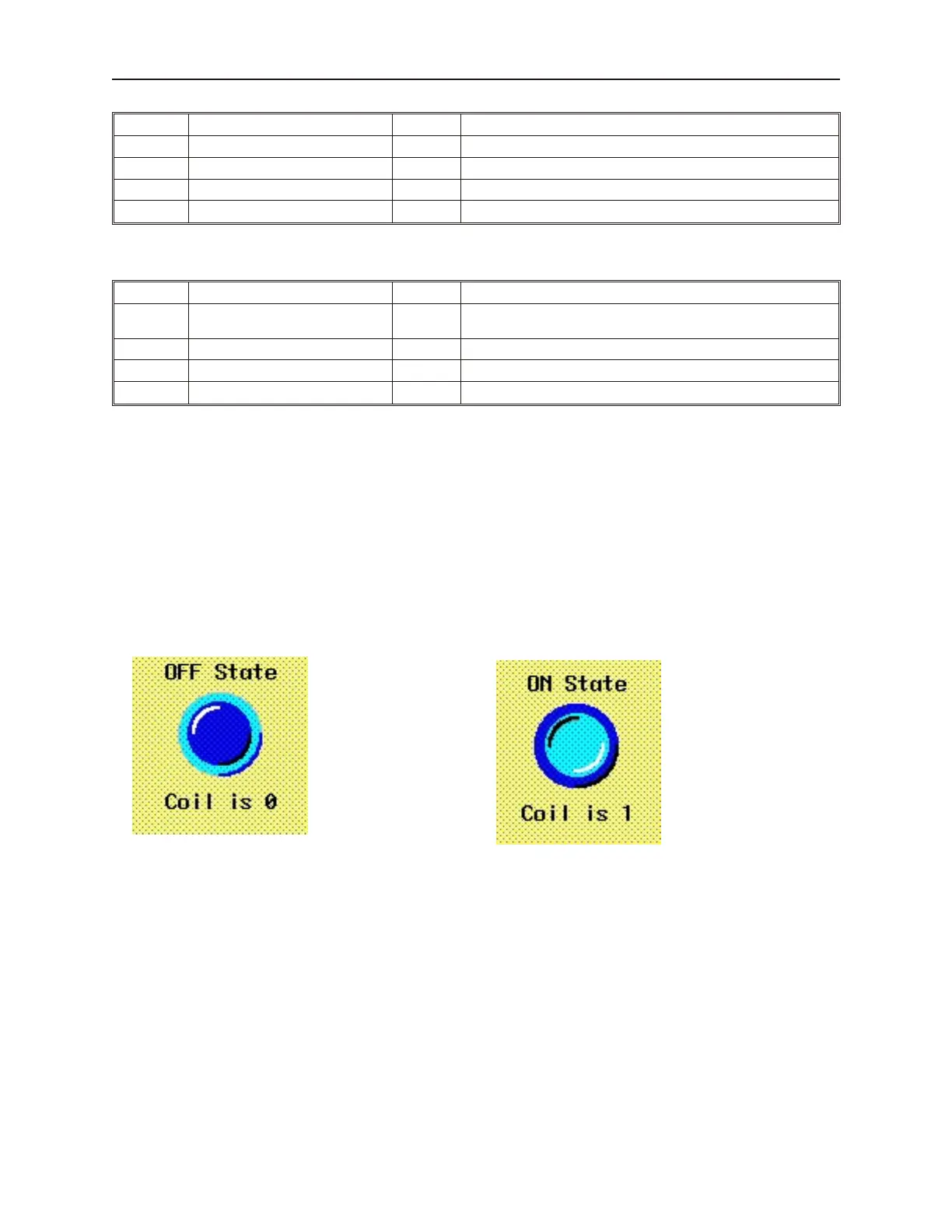

The Bit Lamp Object is used to represent the value of a PLC coil. The object continuously reads the PLC coil and
displays the corresponding shape or bitmap that is tagged to the On or Off state of the coil.
