Editing and Cre ating Screen Ob jects
This section shows how to manipulate graphics objects that are placed onto the work area of EasyBuilder. We will
use examples from sample projects that are included with the EasyBuilder software: HMI504T.EPJ, HMI520M.EPJ,
HMI520T.EPJ, HMI530T.EPJ, and HMI550T.EPJ. Please load one of these project files and have EasyBuilder
ready before you begin this section.

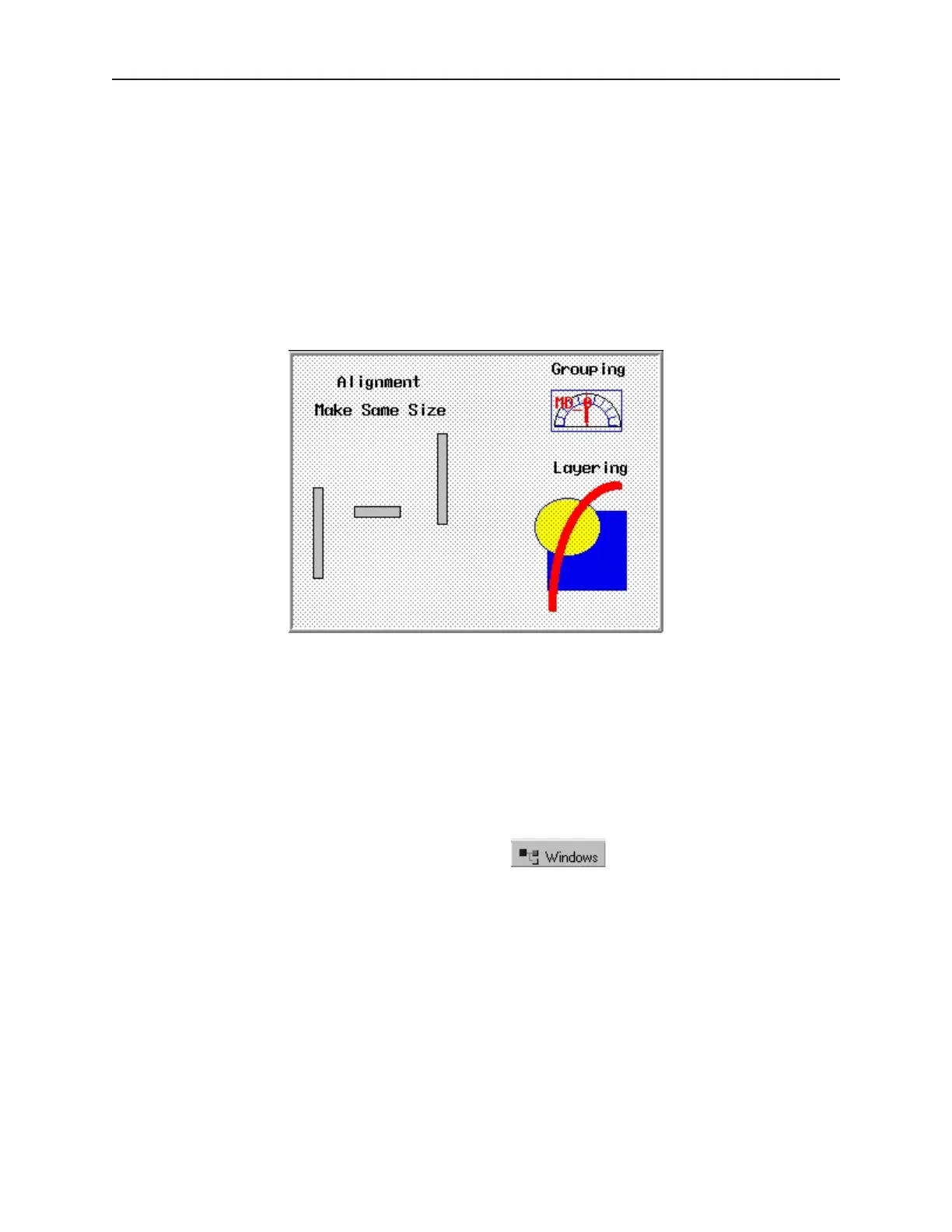

We will refer to Window_12 of the project. To display Window_12 on EasyBuilder, perform the following steps.
4To open a window
1. On the Window Menu, click Open Window. The Open Window dialog box appears.
2. Click Window_12.
3. Click Open. Window_12 appears in the work area of EasyBuilder.
Dis play Op tions
Before we begin describing some of the commands that can be used to edit graphics objects, there are a few
commands that apply to the general work area of EasyBuilder.
EasyBuilder provides a Window No. Treebar window that can be used to easily maneuver between windows of a
project. It also allows you to select any object that is on the window that is currently displayed.
4To display/hide the Window No. Treebar
1. On the View Menu, click Window No. Treebar.
4Using the Window Treebar to display window screens
1. The Window Treebar combines into a single tree a list of all of the windows in a project, and
