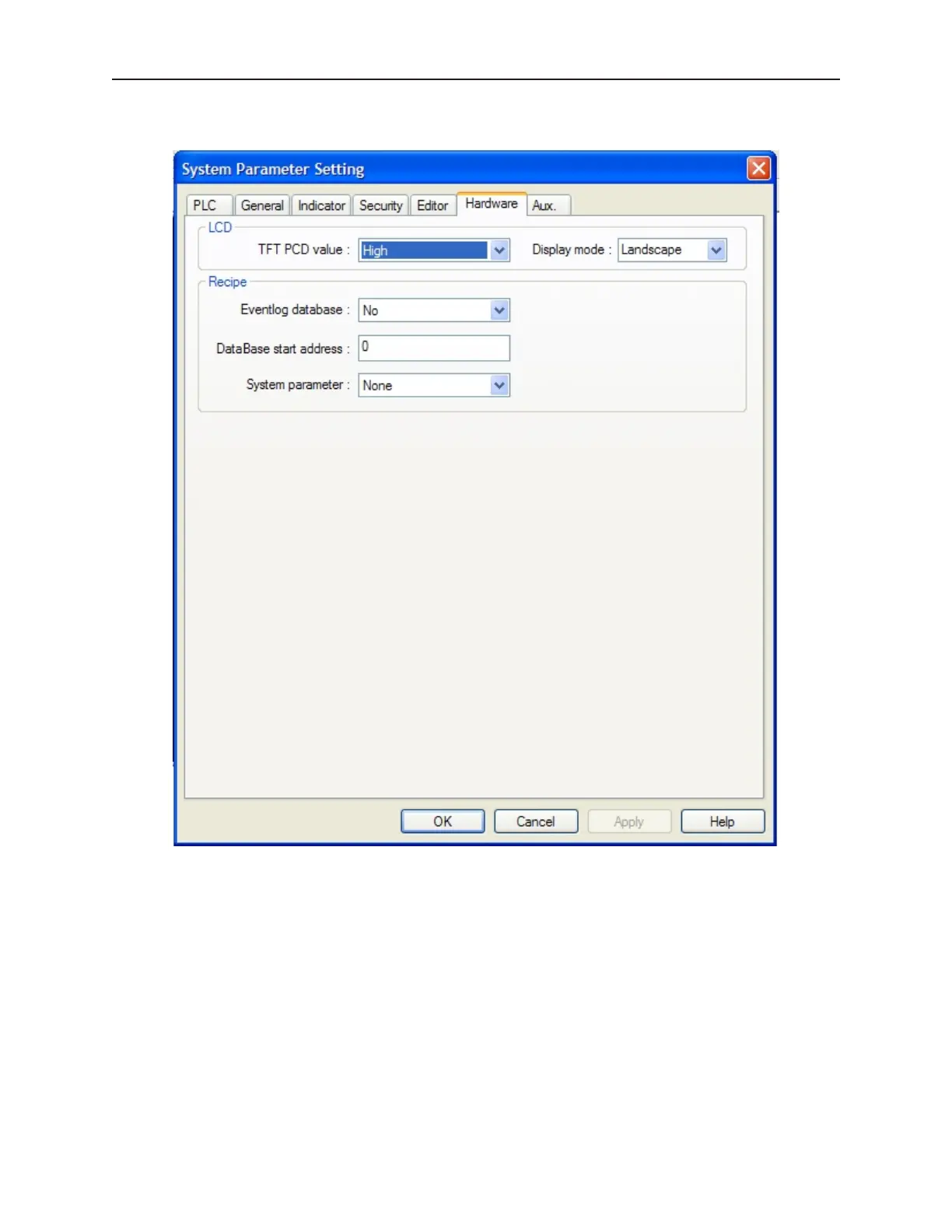

Hard ware Set tings Con fig u ra tion
· TFT PCD value: Used to adjust the refresh rate of the TFT display. (This option applies only to the OITs
with TFT LCD display type.) This option allows you to select high or low refresh rate. We recommend
using the high refresh setting.
· Display mode: Used to select the OIT’s display mode. The two options are landscape and portrait. The
default is landscape.
· Eventlog database: Enables storing of the event log data in part of the recipe module’s non-volatile
storage.
· DataBase start address: The starting RW address in which Eventlog data is stored. When the memory is
full, new Eventlog data is written to this address, overwriting the existing data.
· System Parameter: Enables storing of System Parameters in part of the recipe module’s non-volatile
storage. Data from the General, PLC and Security tabs of the System Parameters dialog can be stored.
When this feature is enabled, the OIT reads the data from the non-volatile memory when the OIT is
powered up or reset. At runtime, any of these parameters can be modified with standard objects that write
data to the appropriate recipe address. The new values take effect when the OIT is reset.
1010-1001a, Rev 02
Us ing EZware-500 67
