PRODUCT PREVIEW
PQFP208 (Plastic Quad Flat Pack)
ORDER CODE : STi5505ACV
STi5505 (Rev. Ax)
DVD BACKEND DECODER
WITH INTEGRATED HOST PROCESSOR
.
INTEGRATED 32-BIT RISC HOST CPU
- 2KBYTES INSTRUCTION CACHE, 2KBYTES
DATA CACHE/SRAM
- 50K DHRYSTONES/SEC (2.1) - 50MHz
.
VIDEO DECODER
- FULLY SUPPORTS MPEG-2 MP@ML
- MEMORY REDUCTION - PAL IN 12MBITS
.
SUBPICTURE DECODER
.
HIGH PERFORMANCE ON-SCREEN DISPLAY
.
AUDIO DECODER
- 5.1 CHANNEL DOLBY AC-3® / MULTI
CHANNEL MPEG-2 DECODING
- DOWNMIX TO STEREO OR TO DOLBY
PRO-LOGIC COMPATIBLE OUTPUTS FOR
MPEG-2 AND AC-3
- IEC6958 - IEC61937 COMPATIBLE OUTPUT
- LPCM (DVD) MODE SUPPORTED
- 6 CHANNELS OUTPUT
.
PAL/NTSC ENCODER
- MACROVISION
TM
7.01/6.1 COMPATIBLE
- TELETEXT, AND CLOSED CAPTION
.
HIGH PERFORMANCE SDRAM INTERFACE
.
PROGRAMMABLE MEMORY INTERFACE
FOR DRAM, ROM, PERIPHERALS ETC.
.
FRONT-END CHANNEL IC INTERFACE
- DVD, VCD AND CD-DA COMPATIBLE
- DSS - DVB BISTREAMS
- SERIAL AND PARALLEL INTERFACES
- HARDWARE SECTOR FILTERING
- INTEGRATED CSS DECRYPTION AND
TRACK BUFFER
.
INTEGRATED PERIPHERALS
- 2 UARTS, 1 I
2
C CONTROLLER, 3 PWM OUT-
PUTS, 3 TIMERS, 3 CAPTURE TIMERS,
SMART CARD
- 34 BITS OF PROGRAMMABLE I/O
-OS LINK
.
PROFESSIONAL TOOLSET SUPPORT
- ANSI C COMPILER AND LIBRARIES
- OPERATING SYSTEMS SUPPORT
- ADVANCED DEBUGGING TOOLS
.
208 PIN PQFP PACKAGE
DESCRIPTION
The STi5505 provides a very highly integrated back-
end solution for DVD and combo DVD-DVB (Set
Top Box) applications. The STi5505 incorporates a
host CPU which handles both general application
(DVD navigation, CD-DA, VCD, DVB) and drivers
of the different embedded periphals (audio/video,
subpicture decoders, OSD, PAL/NTSC encoder...).
The STi5505 offers one of the best cost-effective
(memory savings, internal peripherals availability) solu-
tion to DVD-DVB applications with rapid time to mar-
ket (Reference design, DVD-DVB Software Toolkit).
DMA CHANNELS
ARBITOR
FRONT-END
INTERFACE
(SECTOR
PROCESSOR
& DVD
DECRYPTION)
2K
INSTRUC.
CACHE
2K DATA
CACHE AND
2K SRAM
OS LINK 2 UART
1 I
2
C
PIO
3 PWM
SMART CARD
DIAGNOSTICS
CONTROLLER
AND SYSTEM
SERVICES
EXTERNAL
MEMORY
INTERFACE
MPEG2/AC3
AUDIO
5.1 CHANNEL
PAL/NTSC
TELETEXT
INTERFACE
MPEG2 VIDEO
SUBPICTURE
OSD
ST20 CPU

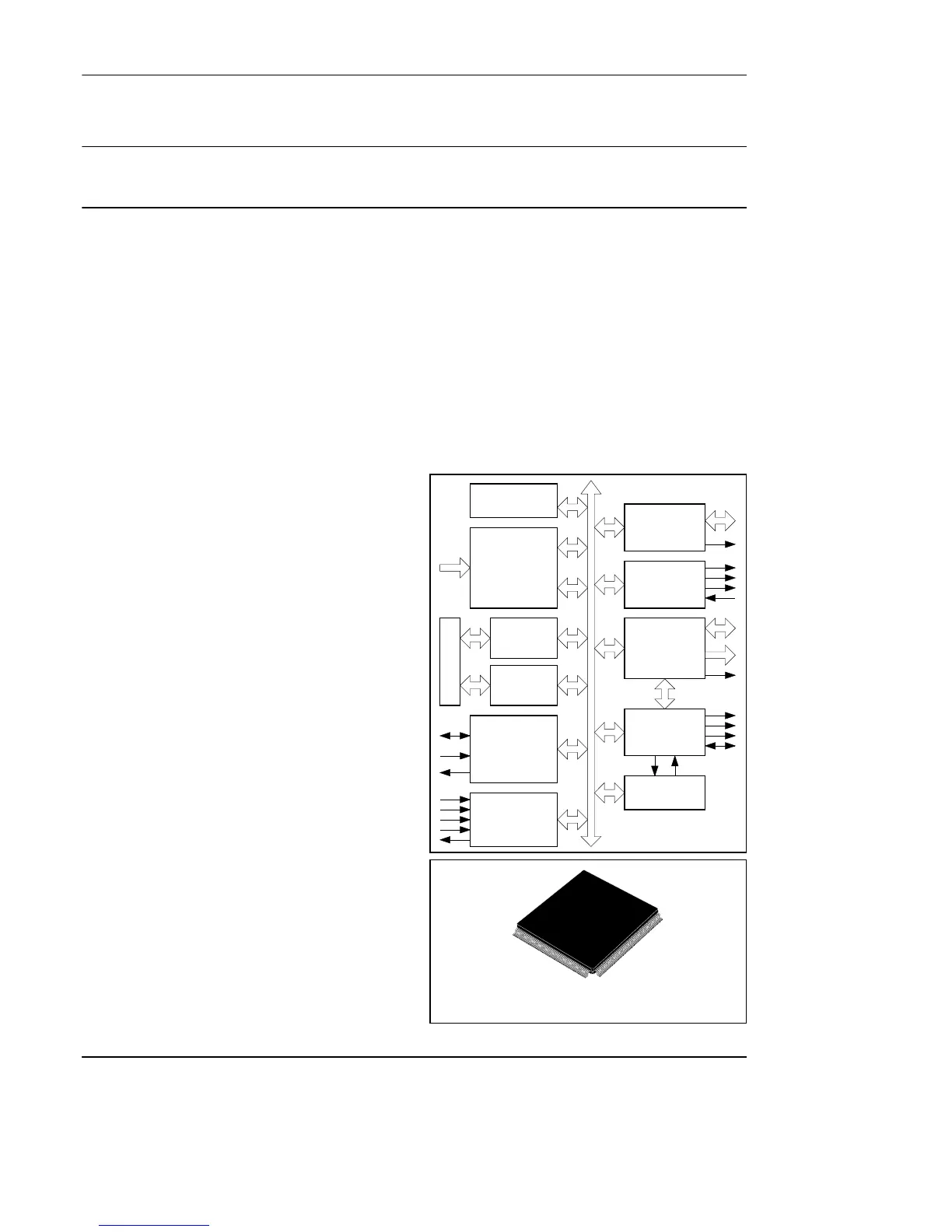

Figure 1 : General Block Diagram
