Marantz SA12 - Measure the Following Signals; RF Signal Amplitude; SACD Processor;Furore; DSD Outputs

30
Chrominance C_VID
Measured at F665
Red R_VID
Measured at F646
Green G_VID
Measured at F649
Blue B_VID
Measured at F653
Switch off the colour bar with the following command:
SACD Processor/Furore
With the following commands, the access of the Furore and
its SDRAM is checked.
RF signal amplitude
This signal is measured at F851 just at the input of the
Furore. When no disc is in the player, we measured 54 mV.
Then a disc is inserted and played, at this moment the RF
signal increases. We measured 1.05 V amplitude and the
level of this input should be between 0.2V and 1.5 V. Then
we can play normally a SACD disc.
DSD outputs
With the diagnostic software, we can partially test the
DSD_PCM bus toward the DAC board. When you play a pink
noise, digital bit stream is coming out of the Furore and is fed
to the DAC board.

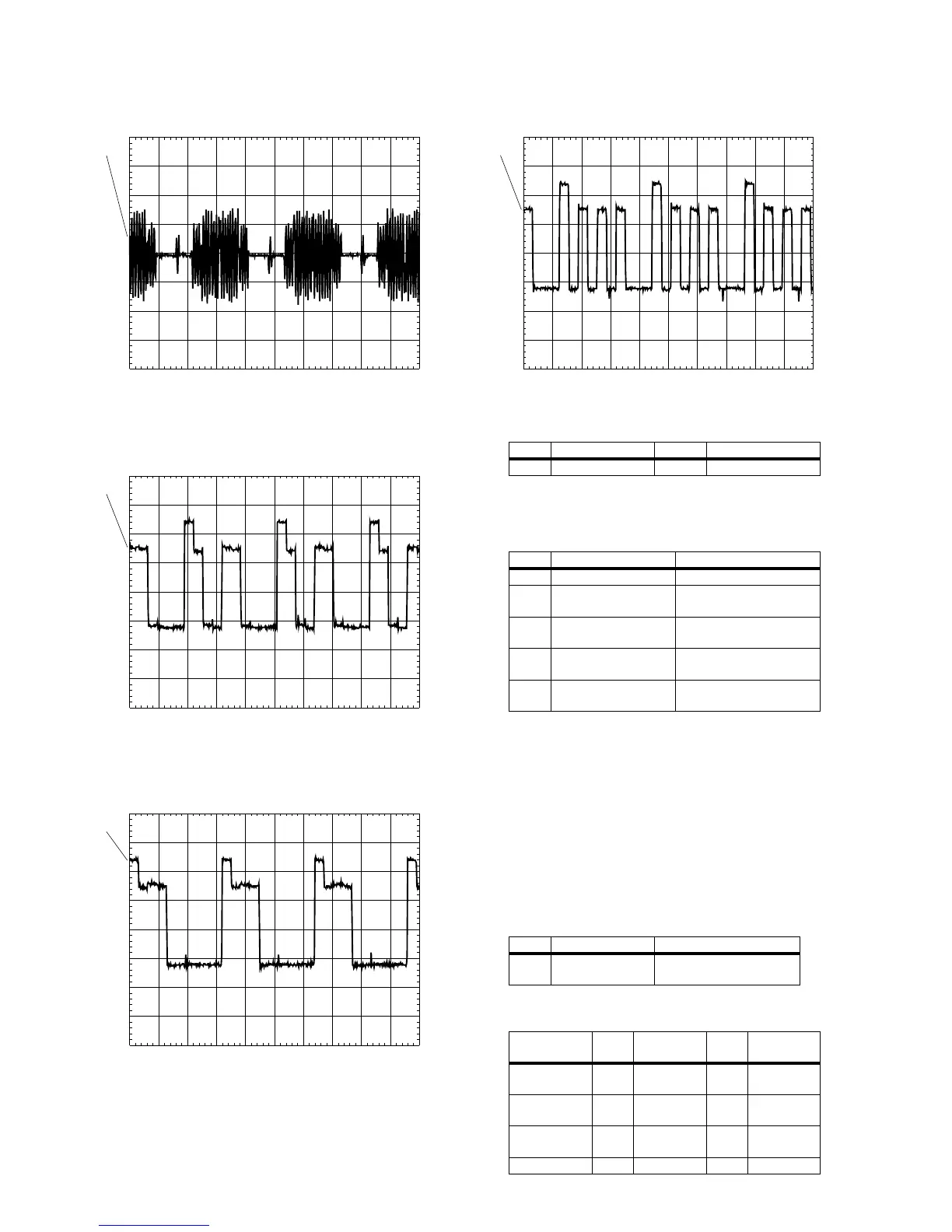

Measure the following signals
PM3394B
ch1
CH1 200mV~ MTB20.0us ch1+
1
C_VID
CL 06532152_033.eps
051200
PM3394B
ch1
CH1 200mV~ MTB20.0us ch1+
1
R_VID
CL 06532152_034.eps
051200
PM3394B
ch1
CH1 200mV~ MTB20.0us ch1+
1
G_VID
CL 06532152_035.eps
051200
Ref.# Command Name Remark Value
121 Colour bar Off Disable the pattern
Ref.# Command Name Remark
1204 DS_FURORE_Id Check Furore ID
1200 DS_FURORE_Sdram
WrRLow
Check full speed SDRAM
1201 DS_FURORE_Sdram
WrRHigh
Check full speed SDRAM
1202 DS_FURORE_Sdram
WrRLowFast
Check full speed SDRAM
1203 DS_FURORE_Sdram
WrRHighFast
Check full speed SDRAM
Ref.# Command Name Remark
115 Pink Noise ON Play the pink noise at the
audio outputs
Signal Test
point
type Level Frequency
DSD_PCM(8) F002 Clock LVTTL 12.288 MHz
< 0.02%
DSD_PCM(6) F003 Clock LVTTL 3.072 MHz
< 0.02%
DSD_PCM(7) F004 Clock LVTTL 48 kHz
< 0.02%
DSD_PCM(0) F005 Data stream LVTTL N/A
PM3394B
ch1
CH1 200mV~ MTB20.0us ch1+
1
B_VID
CL 06532152_036.eps
051200
