3-5 Masterflex
®
I/P
®
MasterSense™ Process Drives
Section 3: Operation
Masterflex
TIME MODE
In Time Mode the pump will operate at a selected rpm and/or ow rate for a selected time and/or batch total.
At the completion of the selected time or batch total the pump will automatically stop.

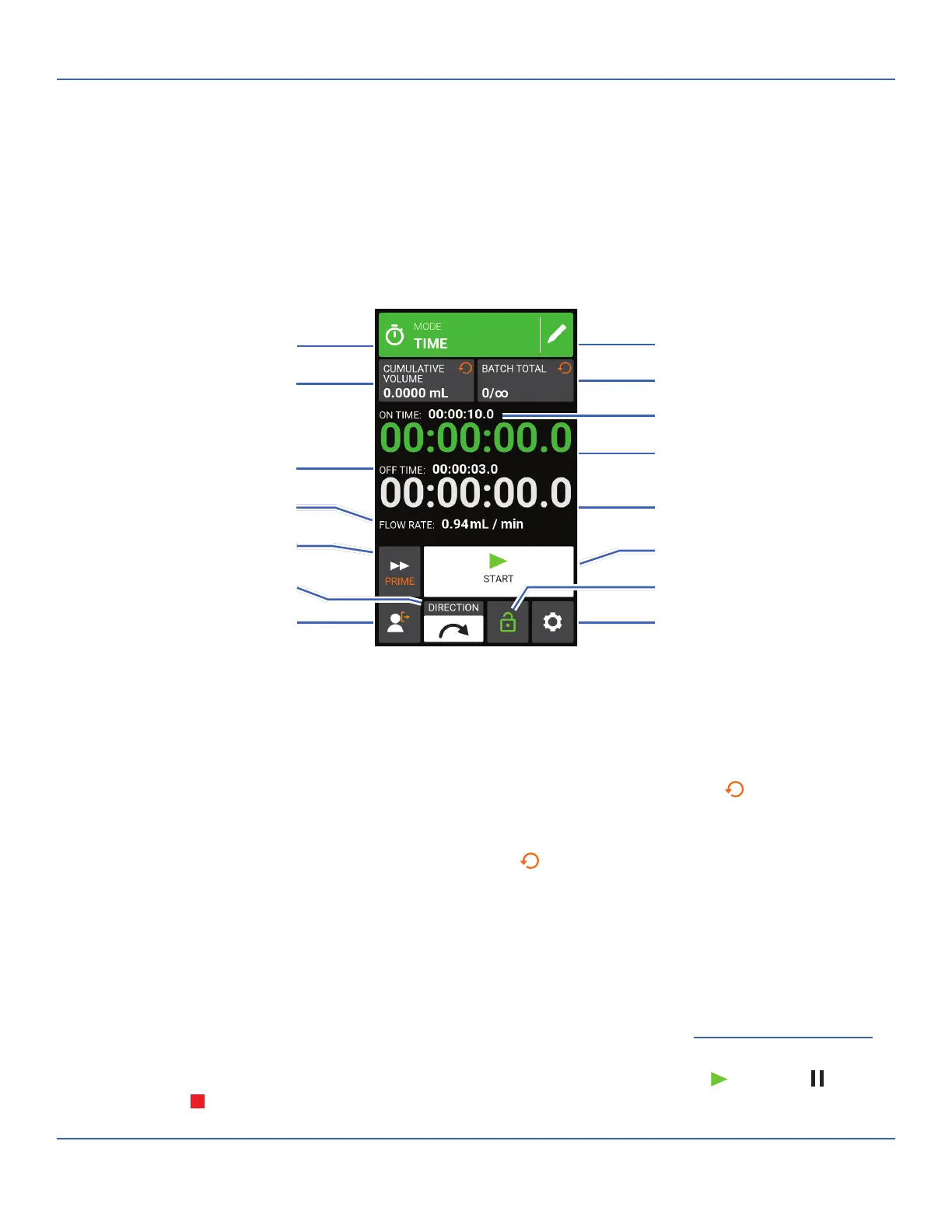

Time Mode Run Screen
e Time Mode Run Screen is accessed by selecting TIME from the Mode Selection Screen.
A. MODE NAME BANNER: Tap the Mode Name Banner to return to the Mode Selection Screen.
B. EDIT: Tap to access the Time Mode Edit Screen. From the Time Mode Edit Screen changes can be made
to ow rate, ow units, tube size, tube calibration, on time, o time, and batch total.
C. CUMULATIVE VOLUME: Displays the current Cumulative Volume of uid that has been pumped. To
reset the cumulative volume: Press and hold CUMULATIVE VOLUME RESET
until the display
changes to zero.
D. BATCH TOTAL: Displays the number of dispenses that have been completed in the current batch. To
reset the batch total: Press and hold BATCH RESET
until the display changes to zero.
E. SET ON TIME: Displays the set dispense operation time.
F. ON TIME COUNTER: Displays a countdown of the set dispense time during operation.
G. SET OFF TIME: Displays the set duration of time the pump pauses between each dispense operation.
H. OFF TIME COUNTER: Displays a countdown of the set o time during operation.
I. FLOW RATE: Displays the current ow rate in the unit of measurement selected by the user.
J. PRIME: Press and hold to prime the pump drive (for further information see "Priming the Pump Drive"
on page 2-10).
K.
START/STOP/PAUSE: During operation, the display will change from START
to PAUSE STOP/
RESET
.
D. Batch Total
B. Edit
K. Start/Stop/Pause
J. Prime
F. On Time Counter
E. Set On Time
O. Settings
M. Screen Lock
N. Logout
A. Mode Name Banner
C. Cumulative Volume
G. Set Off Time
I. Flow Rate
L. Flow Direction
H. Off Time Counter
To Next Page
