L. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise  ow
direction.
M. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Press and
hold UNLOCKED
until the icon changes to LOCKED and a red border appears around the
screen. To unlock the screen: Press and hold LOCKED
until the icon changes to UNLOCKED .
N. LOGOUT: Tap to log out a user. NOTE:  is option is only available if User Management is enabled in
Settings (for further information see "
User Management" on page 2-8).
O. SETTINGS: Tap to access the Settings Screen (for further information see "Settings" on page 2-4).
Time Mode Edit Screen
Time Mode Operation
General Preparation:
• Con rm the correct tubing has been selected and is properly loaded into the pump drive (refer to the
pump head user manual for further information).
• Ensure the correct pump head and tube size have been selected (for further information see "
Pump Head
Selection
" on page 2-9).
• Con rm all  uids and containers are ready.
• Switch the drive on using the power switch located at the rear of the drive. NOTE: If User Management
is enabled you may be prompted for a username and password (For further information see "
User
Management
" on page 2-8).  e touchscreen display will revert to the previously used operation mode.
• Con rm that the tubing has been calibrated by checking that Calibration Complete
is displayed on
the Time Mode Edit Screen (for further information see "
Tube Calibration" on page 2-11).
• If required, prime the pump before operation (for further information see "
Priming the Pump Drive" on
page 2-10).
Calibrate
Off Time
Confirm
Batch Total

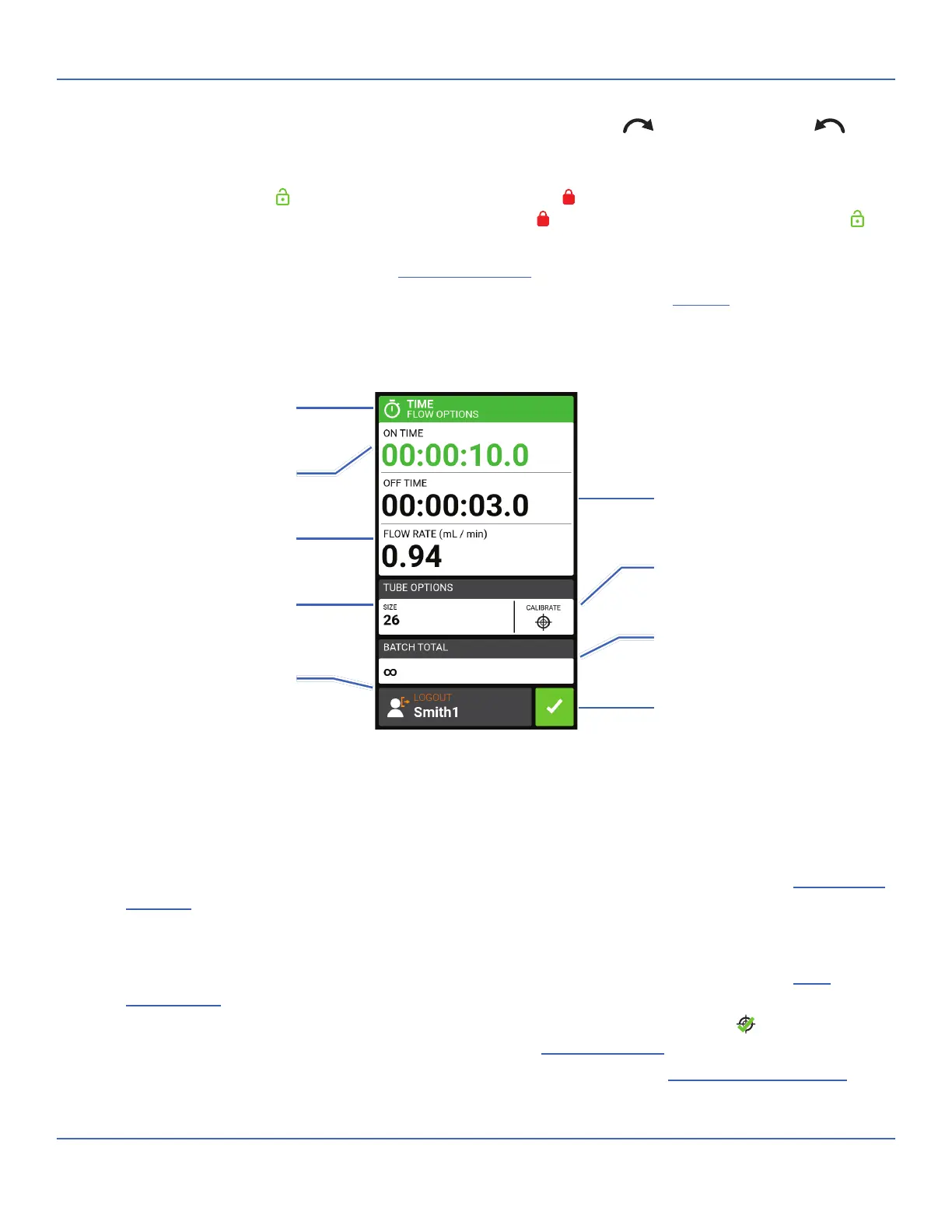

Mode Name Banner
On Time
Flow Rate
Tube Size
Tap to access the
On Time Edit Screen
Tap to return to
the previous screen
Tap to access the
Flow Rate Edit Screen
Tap to access the
Tube Size Screen
Tap to access the
Interval Time Screen
Tap to access the
Tube Calibration Screen
Tap to access the
Batch Total Screen
Logout
