40 Chapter 2: Hardware installation
• External auxiliary I/O connector 1 (DB-9). Used to receive opto-isolated trigger
input signals.

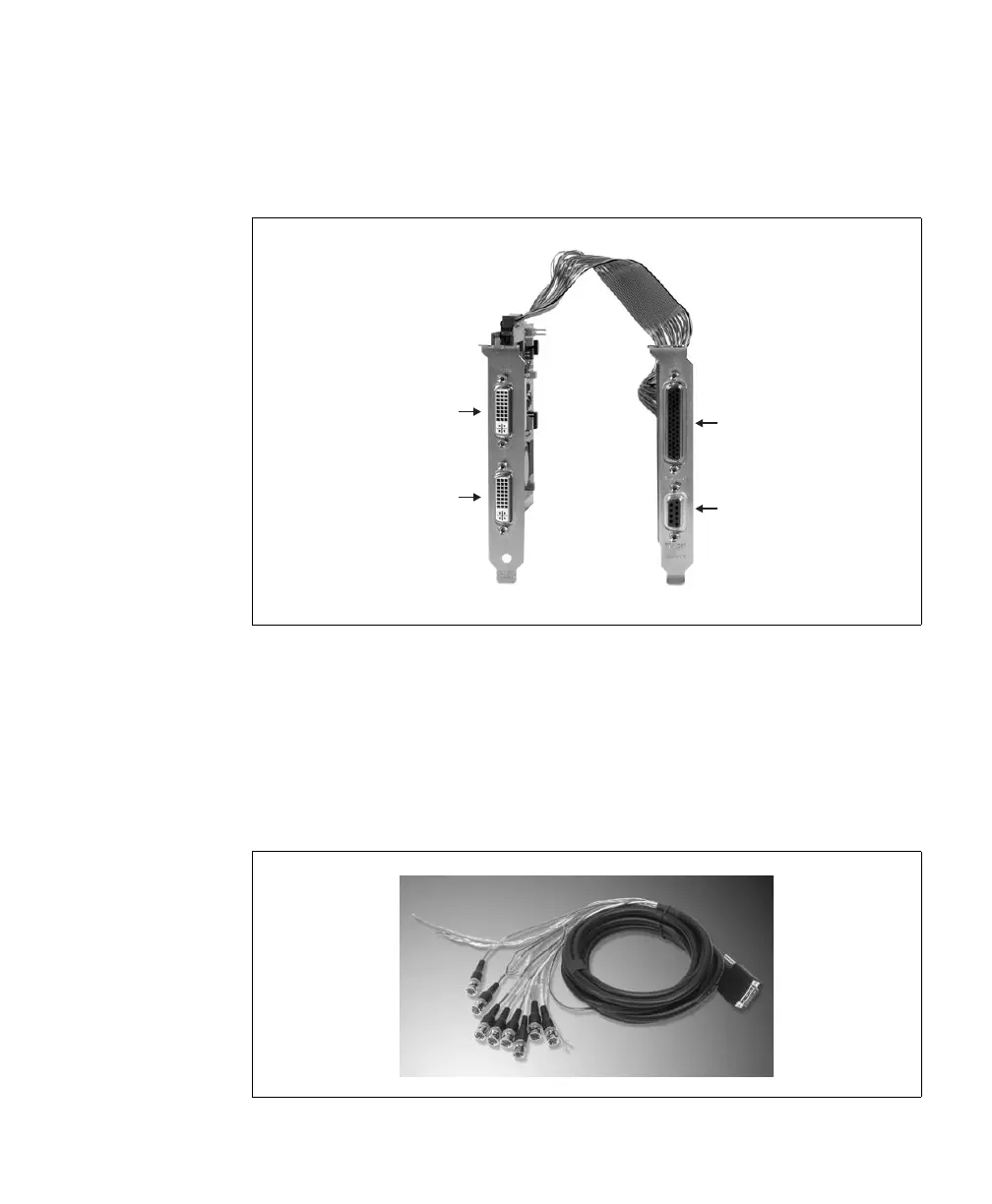

You can use the Matrox DVI-TO-8BNC/O input cable to connect to your video
sources. The cable has a DVI connector on one end and both 8 BNCs and
open-ended wires on the other end; the open-ended wires allow you to connect
to some timing, synchronization, and control signals of the frame grabber. Two
of these cables are required to connect to more than 4 video sources if using Matrox
Solios eA/XA Quad, more than 2 video sources if using Matrox Solios eA/XA
Dual, or more than one video source if using Matrox Solios eA/XA Single.
Connector #1
Connector #0
Connector #0
Connector #1
Analog
Video Input
External
Auxiliary I/O
