42 Chapter 2: Hardware installation
To access the signals of the internal auxiliary I/O connector from outside of the
computer enclosure, you might have installed the corresponding adapter bracket.
It has the following connectors:
• External auxiliary I/O connector (HD-44). Used to transmit timing and
synchronization signals, and transmit/receive auxiliary signals.
Matrox Solios GigE supports acquisition from up to 4 GigE Vision-compliant
video sources. You can connect one GigE Vision-compliant video source directly
to each Ethernet connector on Matrox Solios GigE. Alternately, you can connect
each Ethernet connector on Matrox Solios GigE to any Ethernet network that
contains at least one GigE Vision-compliant video source.

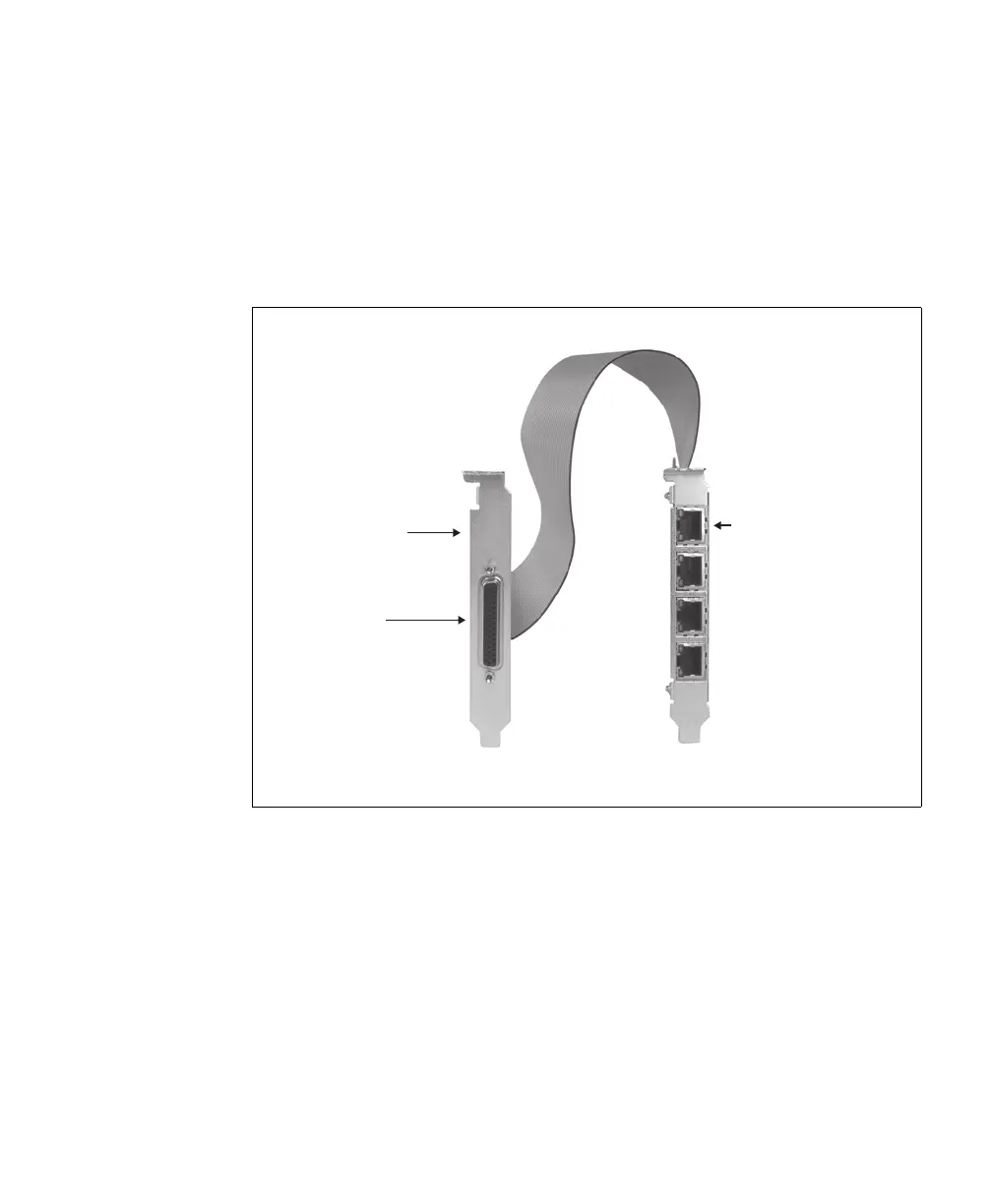

Adapter bracket
Ethernet connectors
External
Auxiliary I/O
connector
