4.8 Changing Main Menu Settings
The steps below demonstrate how to modify the Full Scale value from the Main Menu.
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER

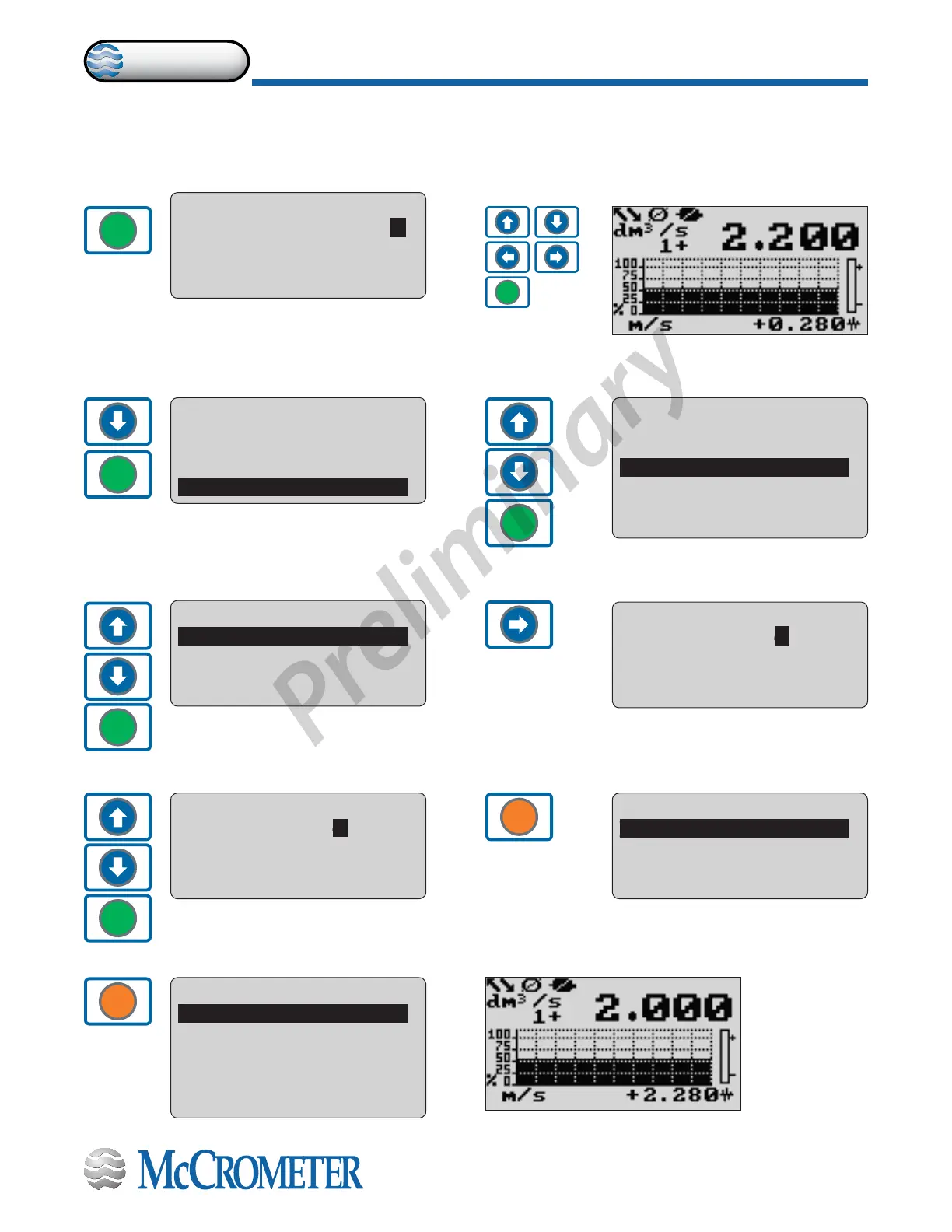

1. Beginning at one of the visualization screens,
press the ENTER button.
3. Press the DOWN button to select Main Menu
and press ENTER.
4. Press the up or down buttons to select a menu and
press ENTER.
5. Press the DOWN button to select the function
FS1 and press the ENTER button.
6. Press the RIGHT button to select the value.
7. Press the up or down buttons to change the
value and then press ENTER to conrm it.
2. Use the UP and DOWN buttons to enter numbers. Use
the LEFT and RIGHT buttons to move to each position.
When nished, press ENTER.
ESC
ESC
9. Press ESC one more time to return to the visualization screen.
8. When the change is conrmed, press ESC to return to
the Main Menu.
Note: FS display
is dierent from
4-10 full scale.
ACCESS CODE
Code: *******1
QUICK START
S.model= 000
FS1=dm3/s 04.000
FS2=dm3/s 04.000
Main menu
SCALES
FS1=dm3/s 04.000
FS2=dm3/s 04.000
MAIN MENU
1-Sensor
2-Units
3-Scales
4-Measure
5-Alarms
6-Inputs
MAIN MENU
1-Sensor
2-Units
3-Scales
4-Measure
5-Alarms
6-Inputs
Main menu
3-Scales
1-Sensor
1
FS1=dm3/s 04.000
SCALES
FS1=dm3/s 04.000
FS2=dm3/s 04.000
4
SCALES
FS1=dm3/s 04.000
FS2=dm3/s 05.000
5
SCALES
FS1=dm3/s 04.000
FS2=dm3/s 05.000
FS1=dm3/s 05.000
