2.5 Pulling Sensor Cable Through Electrical Conduit
It is very important to protect the end of the sensor cable when pulling it through a conduit. Water can accumulate in low
portions of conduit. Always use the factory supplied cable cover, or similar method, to seal the end of the cable against
water when pulling the cable through conduit (see Figure 10). This will ensure proper operation of the meter.
1. Tie a rope or cable-snake securely around the middle of the cable cover.
2. Carefully pull the rope or snake until the sensor cable end clears the conduit.
3. Bring the cable end to the converter location. If necessary, secure the cable so that it does not fall back through the
conduit.
4. Remove the cable cover by pulling the rip wire. The cable cover will tear o (discard the cover).
CAUTION: Do not cut the cable cover o. Doing so may damage the sensor cable and adversely eect
the calibration of the meter.
i
Cable Cover
Sensor Cable
Rip Wire
Secure rope or snake to this
area of the cable cover

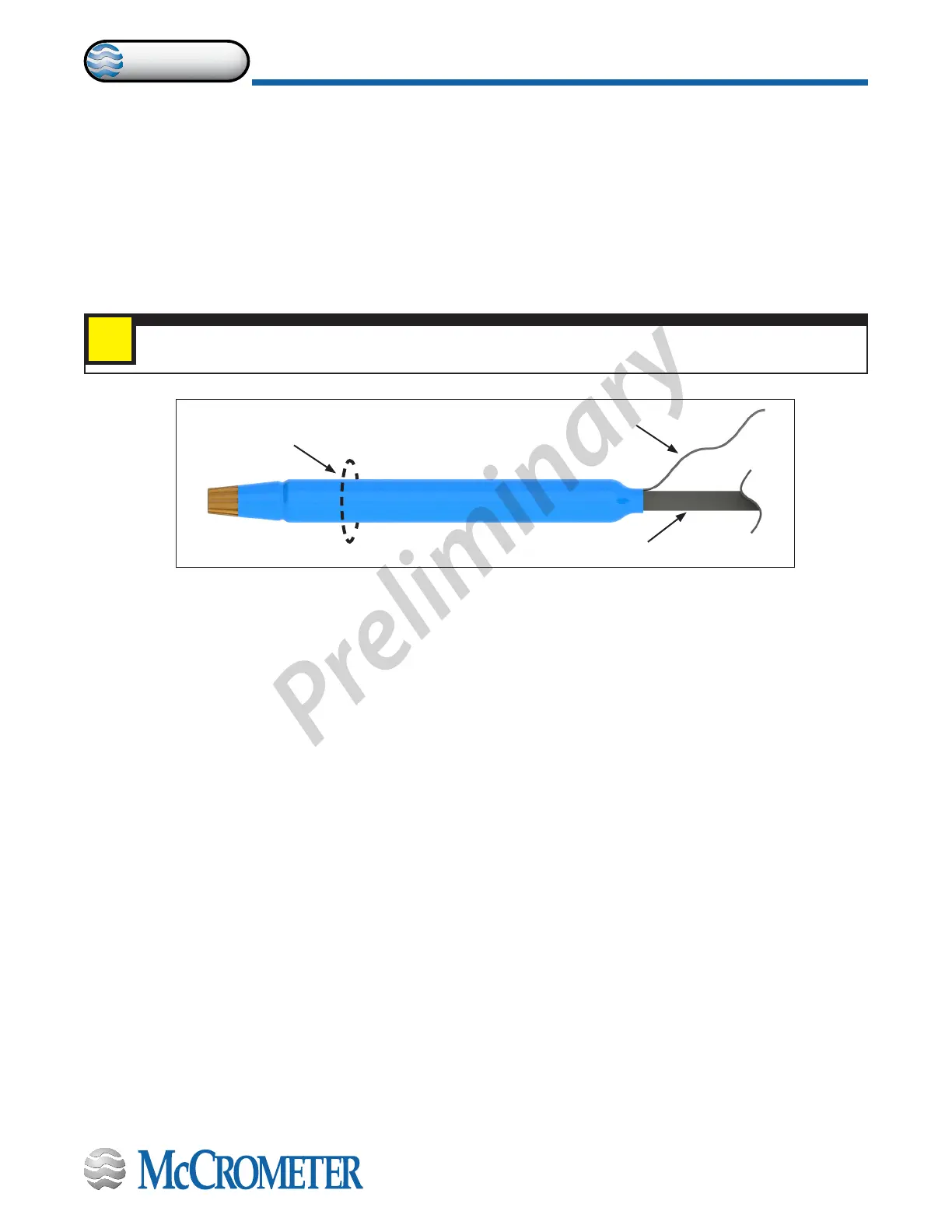

Figure 10. Cable Cover
