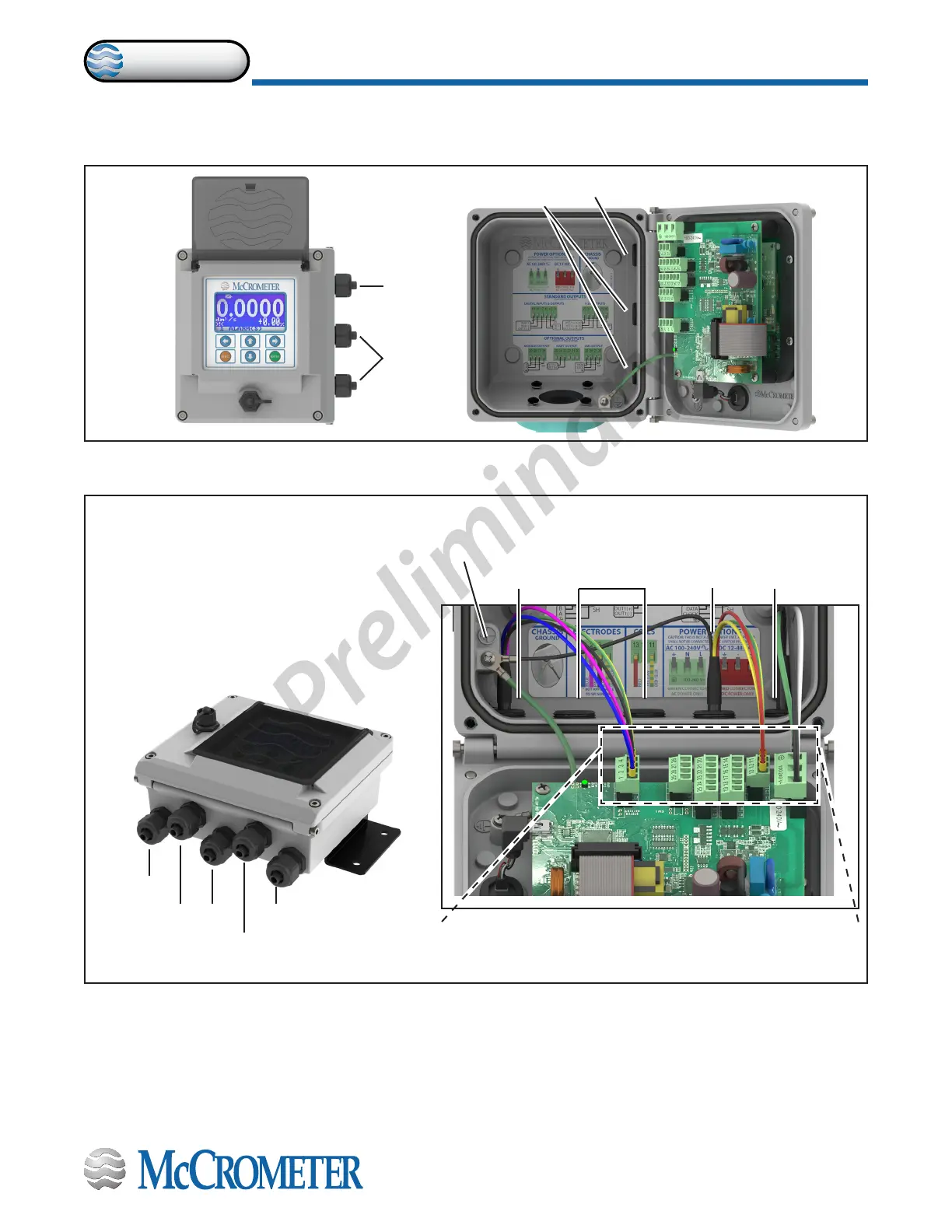

Figure 9. Remote mount converter cable assignments
Figure 8. Meter mount converter cable assignments
2.4 Cable Gland Assignment for Wiring Harnesses
To prevent signal interference and to keep the wiring organized, each cable gland is assigned for a specic wiring harness.
Refer to the assignment diagrams (Figure 8, Figure 9) below when you route your cable run.
Outputs
Power
Outputs
Power
Electrodes
Outputs
Coils and ground
Power
Electrodes
Chassis lug
Outputs
Coils and
ground
Power
30124-60 Rev. 1.0 | unreleased
Page 5
INSTALLING THE CONVERTER AND CABLES
ProComm
Preliminary
