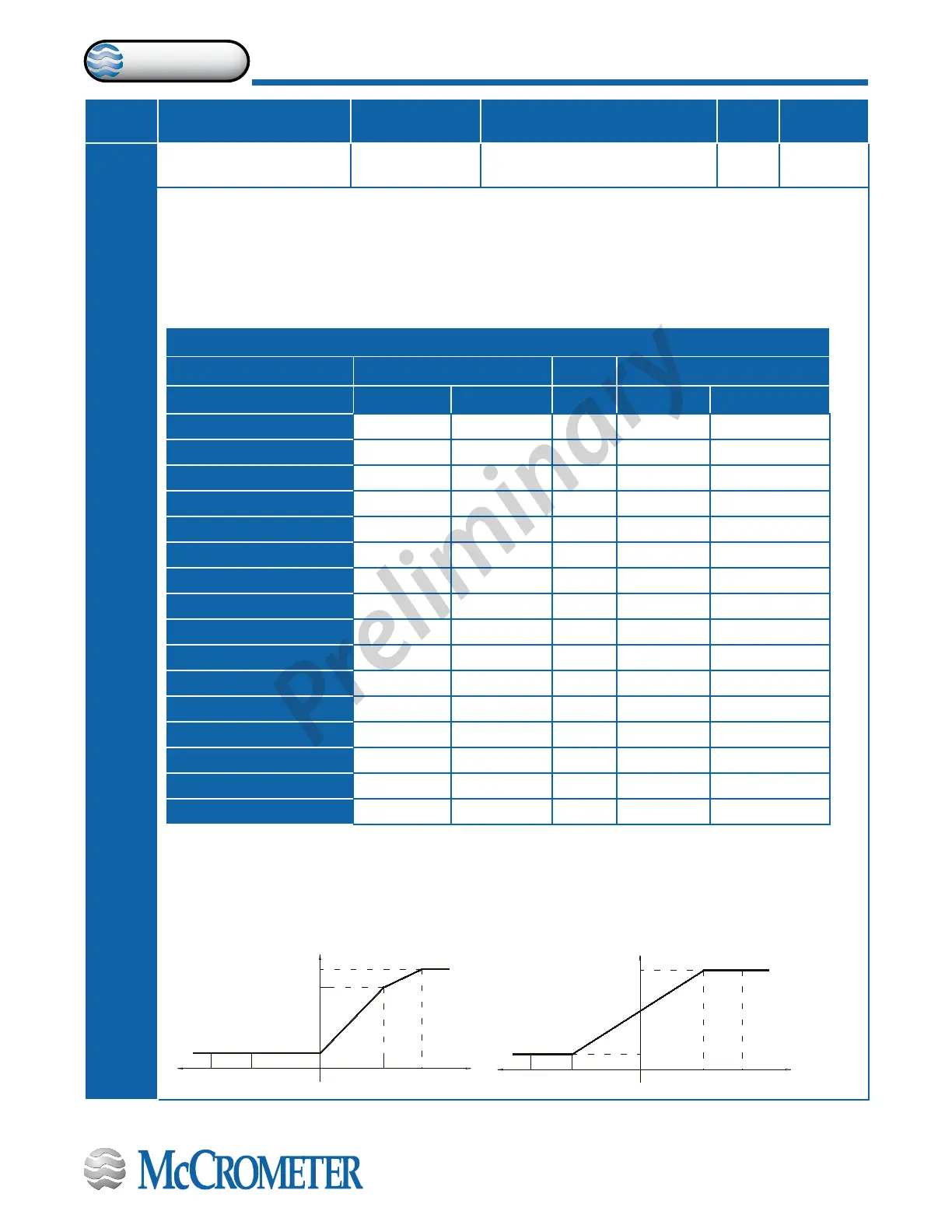

McCrometer ProComm - Page 32

Menu
Position
Converter Function Code Function Name Function Description
Access
Level
MCP
Command
7.4
[Out mA2=4_22+/-]
Current output
option and range
This function sets the current
output 2.
AL3 [OUT2F]
This function is optional and will not appear unless the option has been requested. There are three elds to
modify for this function:
• Scale zero: 4 or 0mA
• Full scale: 20 or 22mA
• Field: + = positive, - = negative, blank = both, -0+ = central zero scale
The values corresponding to the scale points are shown in the following chart:
CURRENT VALUES IN mA CORRESPOND TO THE % FULL SCALE VALUE
POSSIBLE FIELD REVERSE FLOW VALUE ZERO DIRECT FLOW VALUE
≤-110% -100% 0% +100% ≥+110%
Out.mA = 0 ÷ 20 + 0 0 0 20 20
Out.mA = 0 ÷ 22 + 0 0 0 20 22
Out.mA = 4 ÷ 20 + 4 4 4 20 20
*Out.mA = 4 ÷ 22 + 4 4 4 20 21.6
Out.mA = 0 ÷ 20 - 20 20 0 0 0
Out.mA = 0 ÷ 22 - 22 20 0 0 0
Out.mA = 4 ÷ 20 - 20 20 4 4 4
Out.mA = 4 ÷ 22 - 21.6 20 4 4 4
Out.mA = 0 ÷ 20 20 20 0 20 20
Out.mA = 0 ÷ 22 22 20 0 20 22
Out.mA = 4 ÷ 20 20 20 4 20 20
Out.mA = 4 ÷ 22 21.6 20 4 20 21.6
Out.mA = 0 ÷ 20 –0+ 0 0 10 20 20
Out.mA = 0 ÷ 22 –0+ 0 1 11 21 22
**Out.mA = 4 ÷ 20 –0+ 4 4 12 20 20
Out.mA = 4 ÷ 22 –0+ 2 4 12 20 22
* Example 1: out 4-22 +
** Example 2: out 4-20 –0+
In hardware alarm conditions “HARDW AL.” (interrupted coils, empty pipe, measure error) the current value is
programmed by the function “mA v.fault” (pos. 5.6) and it is expressed as percentage of a xed current range,
where: 0% = 0mA and 110% = 22mA.
The manufacturer guarantees only English text available on our web site www.isoil.com
1-7-1-MANUALE MV110_A4
38 di 67

In hardware alarm conditions “HARDW AL.” (interrupted coils, empty pipe, measure error) the current
value is programmed by the function “mA v.fault” (pos. 4.4) and it is expressed as percentage of a xed
current range, where: 0% = 0mA and 110% = 22mA.
CURRENT VALUES IN mA ASSOCIATE TO THE % FULL SCALE VALUE
POSSIBLE FIELD
REVERSE FLOW
VALUE
ZERO DIRECT FLOW VALUE
≤-110% -100% 0% +100% ≥+110%
Usc.mA = 0 ÷ 20 + 0 0 0 20 20
Usc.mA = 0 ÷ 22 + 0 0 0 20 22
Usc.mA = 4 ÷ 20 + 4 4 4 20 20
*Usc.mA = 4 ÷ 22 + 4 4 4 20 22
Usc.mA = 0 ÷ 20 - 20 20 0 0 0
Usc.mA = 0 ÷ 22 - 22 20 0 0 0
Usc.mA = 4 ÷ 20 - 20 20 4 4 4
v 22 20 4 4 4
Usc.mA = 0 ÷ 20 20 20 0 20 20
Usc.mA = 0 ÷ 22 22 20 0 20 22
Usc.mA = 4 ÷ 20 20 20 4 20 20
Usc.mA = 4 ÷ 22 22 20 4 20 22
Usc.mA = 0 ÷ 20 –0+ 0 0 10 20 20
Usc.mA = 0 ÷ 22 –0+ 0 1 11 21 22
**Usc.mA = 4 ÷ 20 –0+ 4 4 12 20 20
Usc.mA = 4 ÷ 22 –0+ 4 4.8 12.8 21 22
22 mA
20 mA
-110% F.S. -100% F.S. +100% F.S. +110% F.S.
zero
4 mA
I (mA)
I (mA)
20 mA
-110% F.S. -100% F.S. +100% F.S. +110% F.S.
zero
12 mA
4 mA
* Example 1: out 4-22 + ** Example 2: out 4-20 –0+
It allows to set the full scale value for analog output 1 independently from the main scale of the
instrument.
(POS. 7.5) Analog Output1 full scale [A1S= dm/s x.xxxx]
AL3 [AO1FS]
It allows to set the full scale value for analog output 2 independently from the main scale of the
instrument.
(POS. 7.6) Analog Output2 full scale [A1S= dm/s x.xxxx]
AL3 [AO2FS]
30124-60 Rev. 1.0 | unreleased
Page 30
Menu Descriptions
ProComm
Preliminary
