McHale Fusion 3 Baler & Wrapper
97
10.13.8 Chopper unit duplex chain adjustment
To adjust the duplex chain the following tools are required; two 24 mm spanners.
Follow the procedure below:
1. Hold the lower nut and loosen the upper nut.
2. To tighten - screw down the lower nut in the direction T.
3. When the chain is at the required tension, screw down the upper nut.
4. Lock the two nuts together to secure in place.

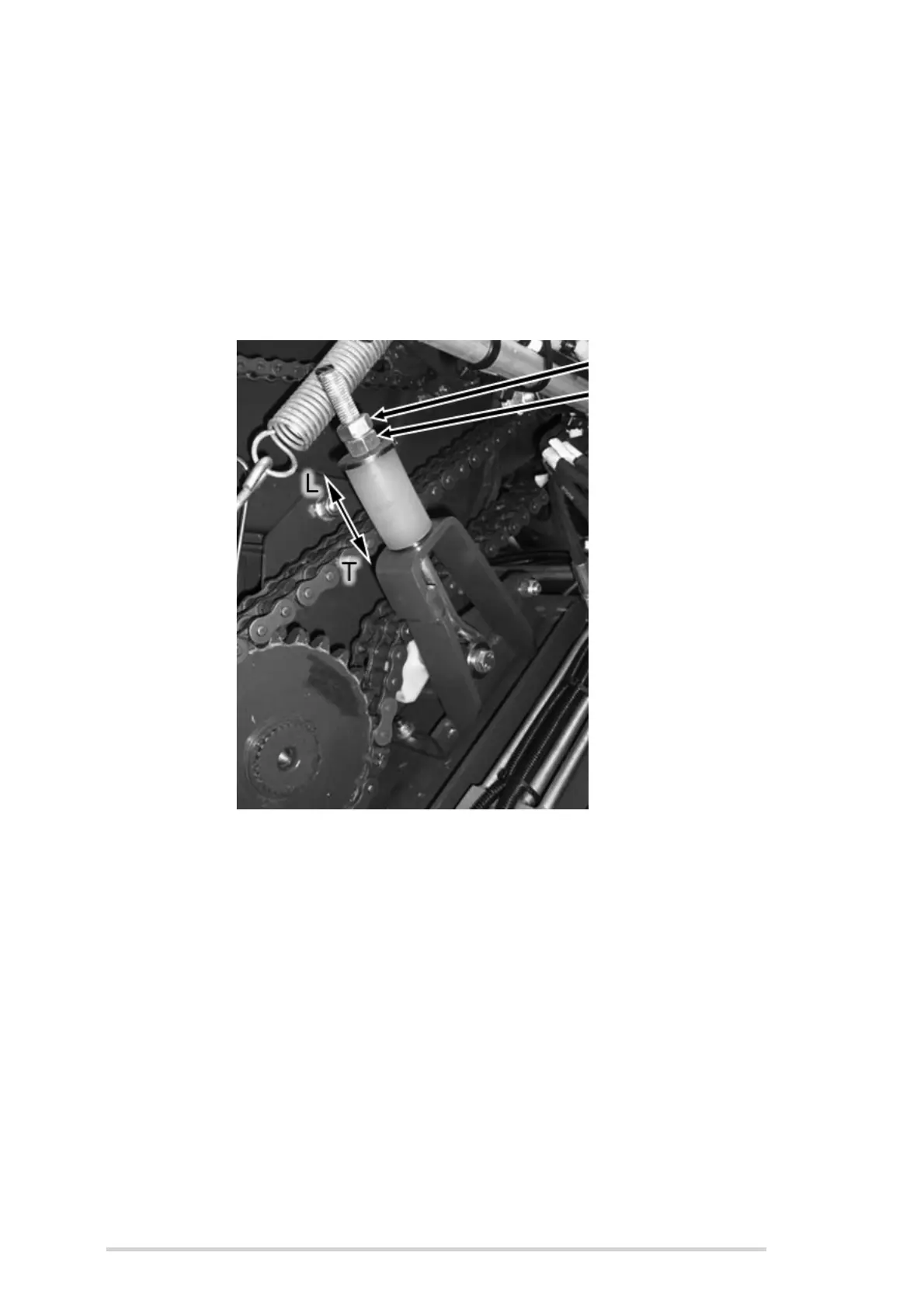

Figure 10.u - Chopper unit duplex chain adjustment
