McHale Fusion 3 Baler & Wrapper
96

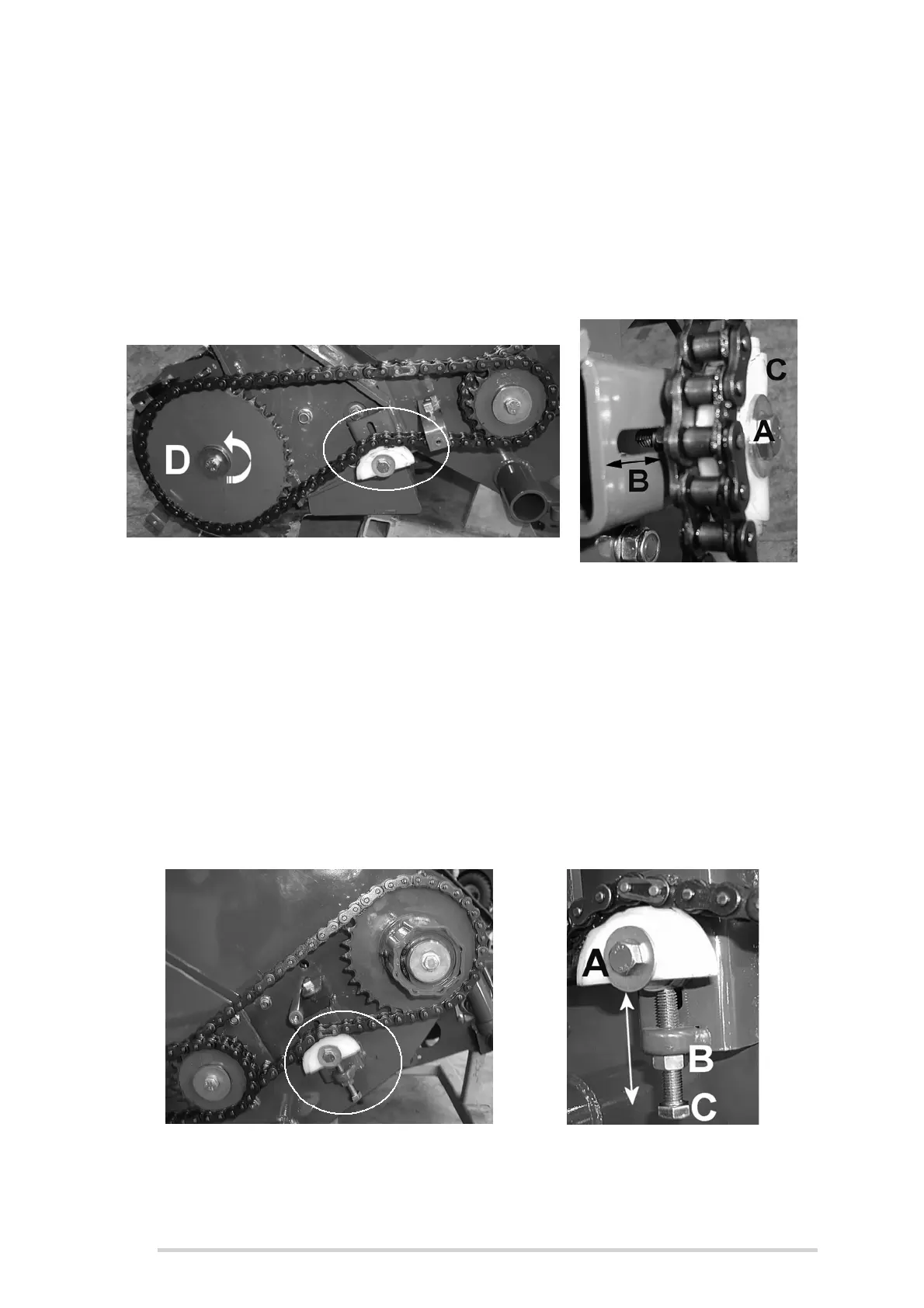

10.13.6 Pick-up reel tine chain adjustment
To adjust tine reel chain the use of a 17 mm spanner and socket is required.
1. Loosen (A) and turn tine sprocket (D) anticlockwise, as shown below.
2. Apply upward pressure (along slot B) to nylon chain slide (C), while continuing
to hold sprocket (D) in position.
3. Tighten (A) and ensure that sagging is kept to a minimum.
Figure 10.s - Pick-up reel tine chain adjustment
10.13.7 Reel drive chain adjustment
To adjust the reel drive chain the use of both a 17 mm and 19 mm spanner and socket
are required:
1. Using 17 mm tools, loosen (A) anticlockwise by approx. 1 turn.
2. Using a 19 mm spanner, loosen locknut (B).
3. Tighten setscrew (C) until there is little or no sagging of the chain and retighten
bolt (A).
4. Retighten locknut (B).
Figure 10.t - Reel drive chain adjustment
