10.13.4 Bottom door to main drive chain adjustment
Adjust as discussed in Section 10.13.2, but at the location as shown.

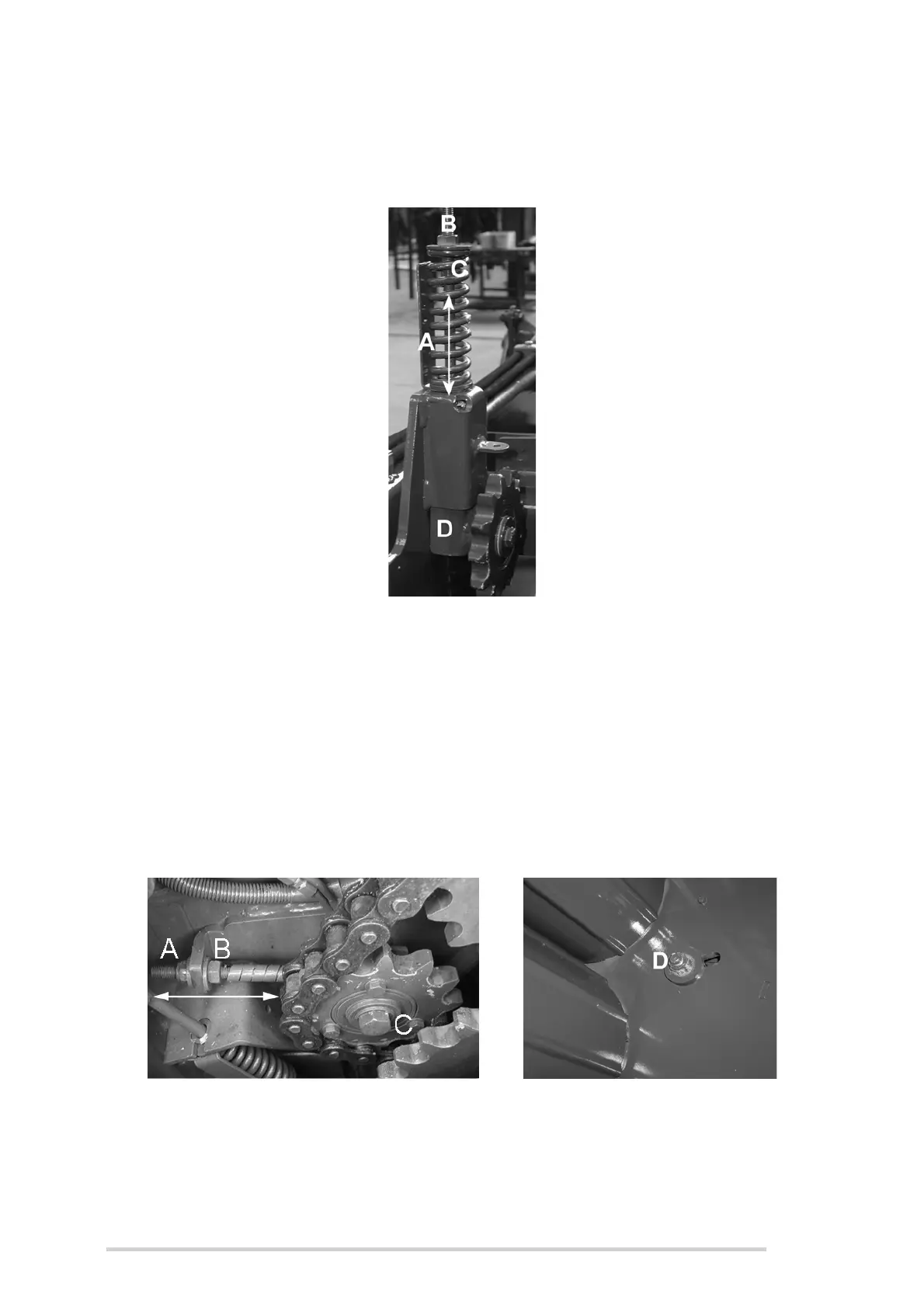

Figure 10.q - Bottom door to main drive chain adjustment
10.13.5 Front chamber segment chain adjustment
Adjustment of the front chamber chain will require the use of a 19 mm and 24 mm
spanners and socket and is carried out as follows:
1. Loosen nyloc nut (D) about 1 turn anti-clockwise and loosen locknut (B) in the
direction shown.
2. Tighten (A) until the chain is taut, do not overtighten!
3. Tighten nyloc nut (D) and bolt (C) when the chain is taut, i.e. minimal sag.
Figure 10.r - Front chamber segment chain adjustment
