McHale Fusion 3 Baler & Wrapper
94

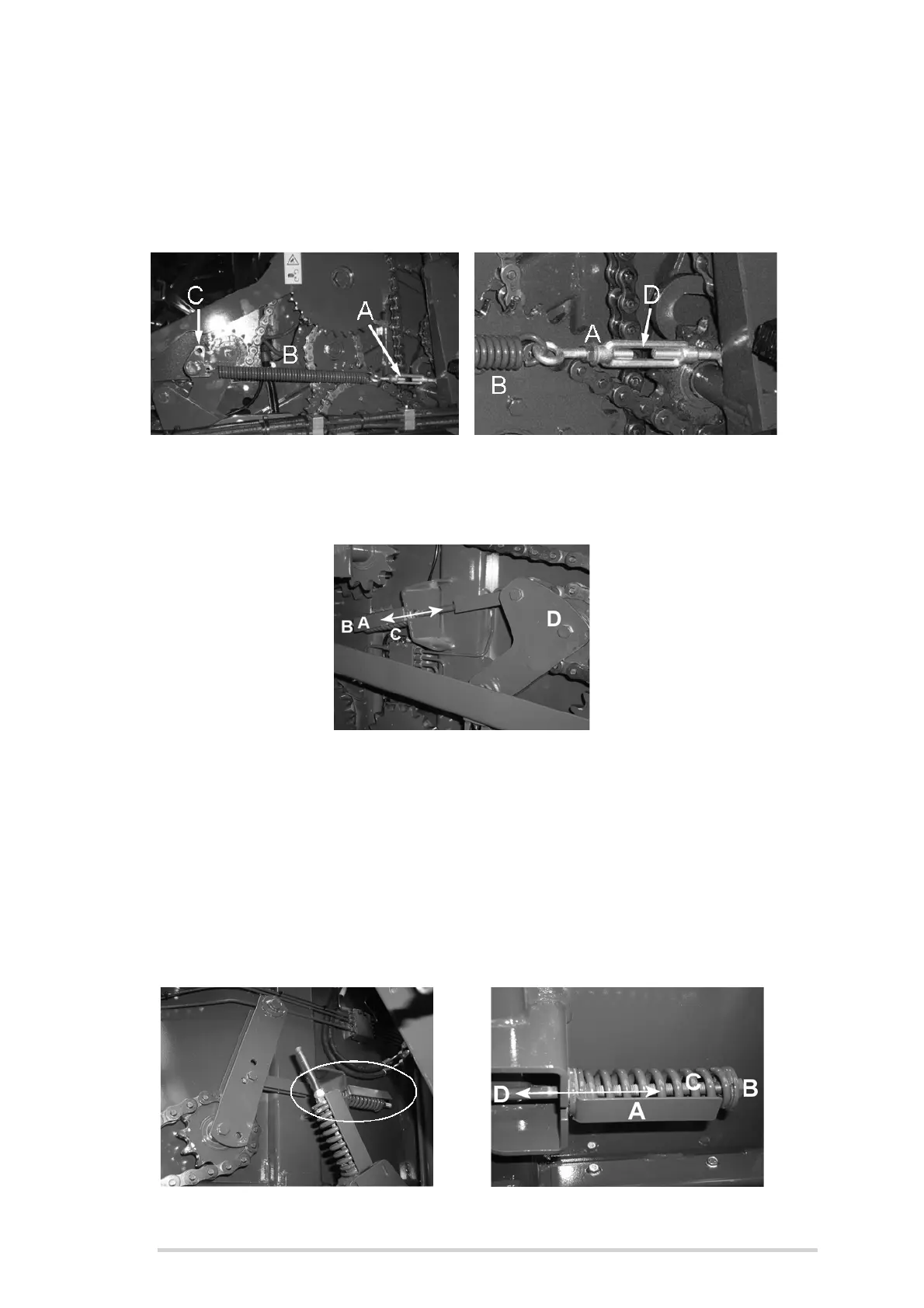

10.13.1 Main drive chain adjustment
Adjust turn buckle (A) until the gap (D) is 25 mm. As the chain wears the gap (D) will
need to be reduced. If there is no more adjustment available in the turn buckle (A), the
end of the spring (B) can be moved to location (C) on the chain tensioner bracket.
Figure 10.n - Main drive chain adjustment
10.13.2 Bottom chamber door chain adjustment
Figure 10.o - Bottom chamber door chain adjustment
Adjust M12 nyloc nut and nut (B) until compression of spring (C) has reached the same
length as spring guide (A). Spring guide (A) is an indicator only and always inspect
chain tension after adjustment, as greater spring compression may be required, due to
chain wear, chain damage, etc.
10.13.3 Top chamber door chain adjustment
Adjust as discussed in Section 10.13.2, but at the location as shown.
Figure 10.p - Top chamber door chain adjustment
