Service manual for medifa 6000 mobile operating tables, version 2.0
In the next disassembly process, loosen the four screws
[3] from the bottom of the base.
Then remove the two screws [4] from the inside of the
base to fix the pedal bracket.
After all screws are loosened, the complete system of
the 5th wheel can be pulled out forward through the
opening.
To replace the roller, simply loosen the hexagon head
screw [5]. This is secured by a nut on the other side.
The assembly of the complete system of the 5th wheel is
done in reverse order.

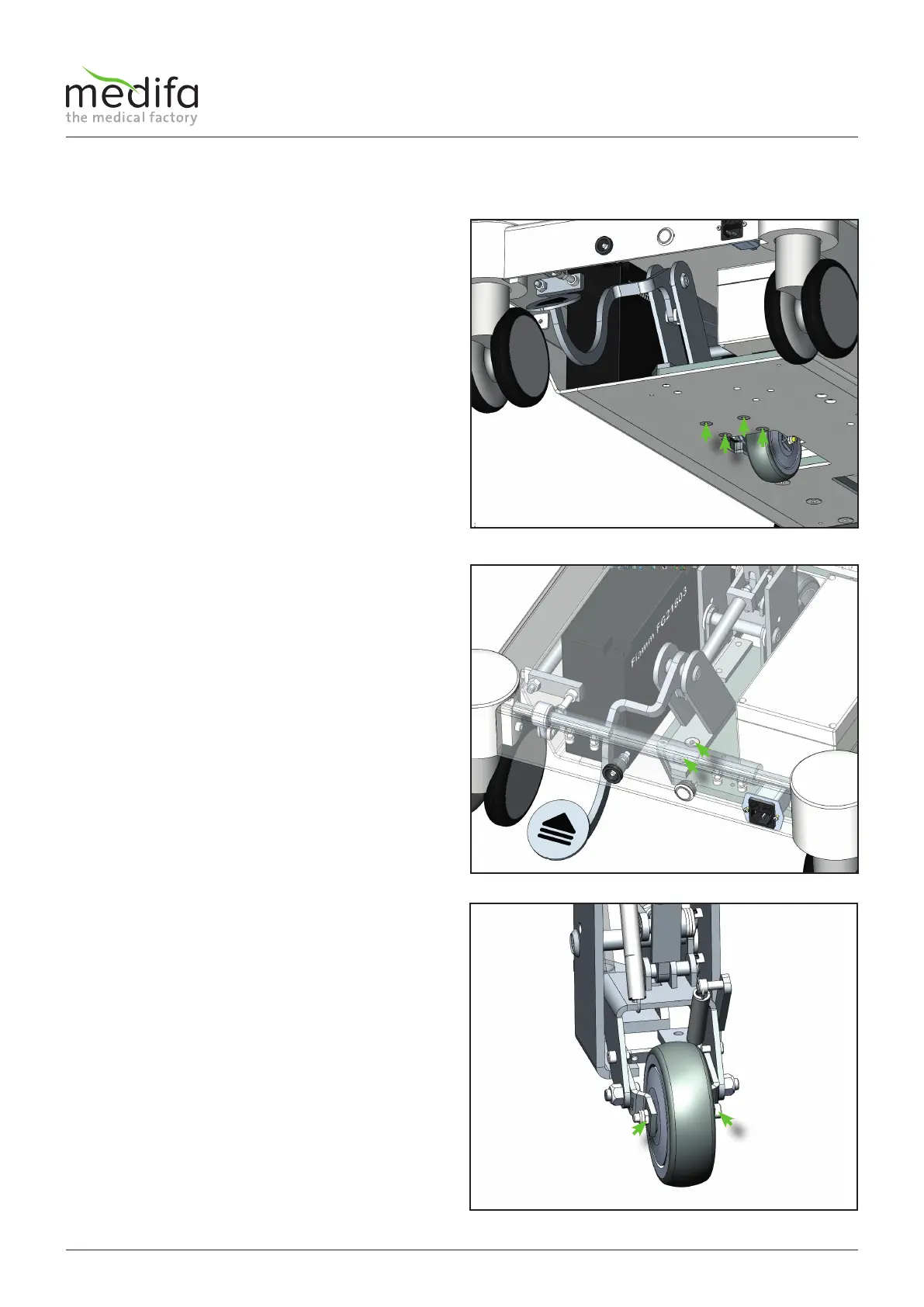

Components of base
Figure 58
Figure 59
Figure 60
To Next Page
