Service manual for medifa 6000 mobile operating tables, version 2.0
5. Components of base
To do this, remove the defective fuse [1]. Use a slotted
screwdriver. If the fuse has been removed, the new fuse
can be fitted to the fuse holder.
Fuse type: 5x20
250VAC, 4A,T,L

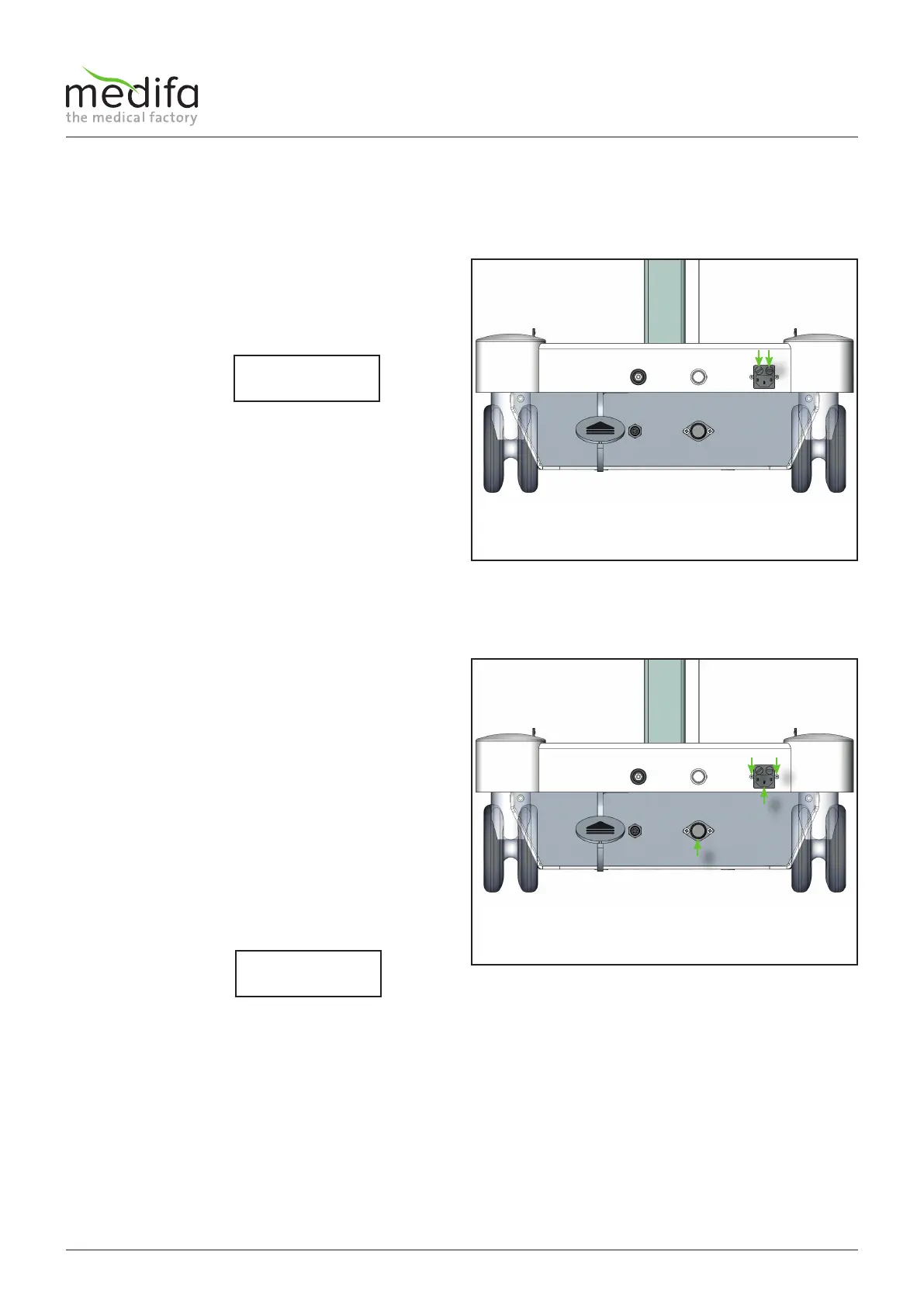

5.2 Replacing the power input module
To remove the power input module[1], simply remove the
two screws[2] and the electrical connection.
The two mains fuses must also be replaced in the new
mains input module (see chapter Replacing the mains
input fuse).
5.1 Replacing the mains input fuse
Components of base
5.3 Replacing the battery fuse
To do this, remove the battery fuse holder [1]. Use a
slotted screwdriver. If the fuse has been removed, the
new fuse can be fitted to the fuse holder.
Fuse type: 10,3x38
1k VDC, 15A, F, H
Figure 48
Figure 49
