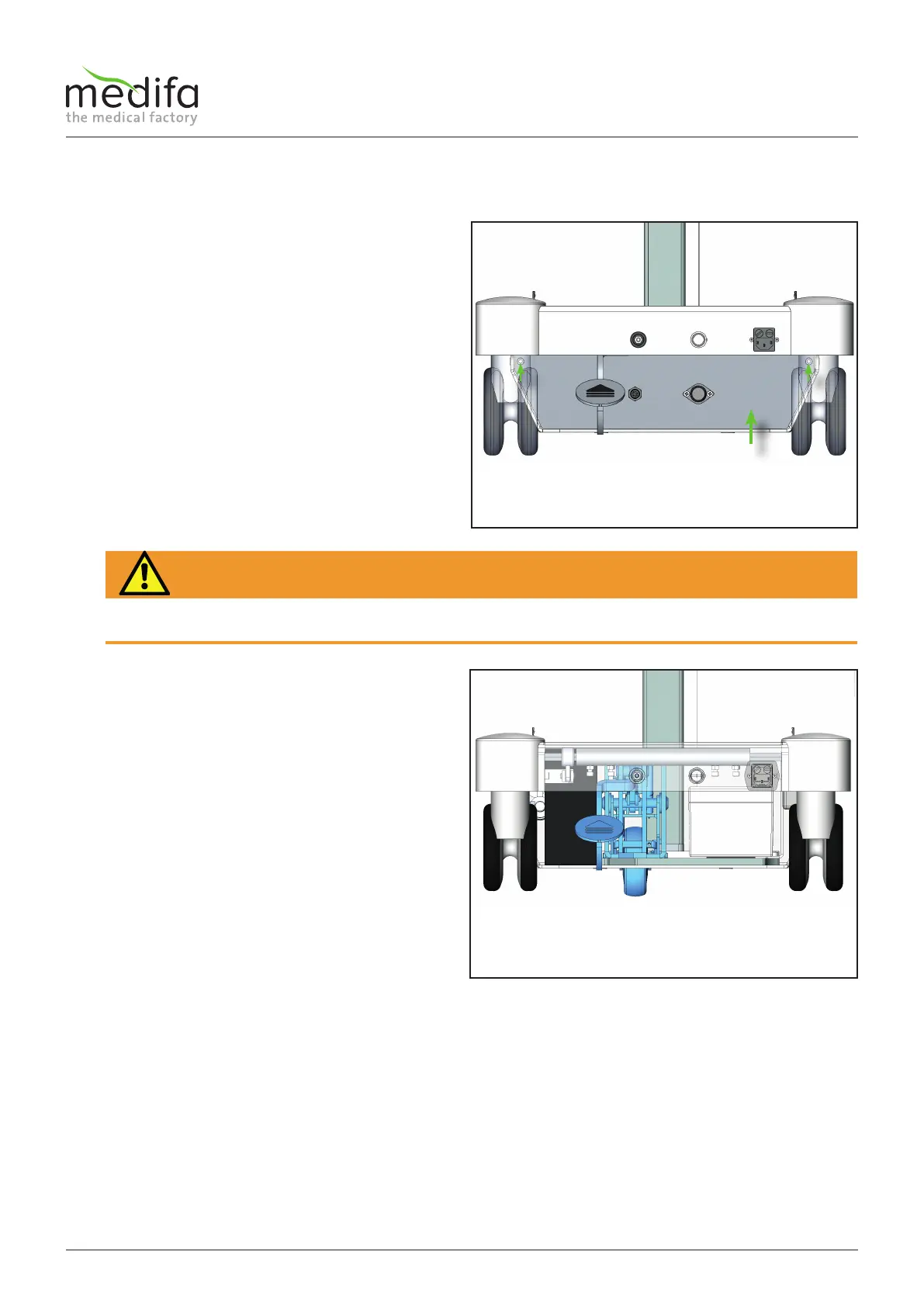

Service manual for medifa 6000 mobile operating tables, version 2.0
To replace the castors, the table must first be jacked up.
To replace the 5th wheel, it is necessary to remove the
base cover plate [1].
To do this, remove the two screws [2], carefully remove
the plate and lay it down with its front side on a flat
surface. Be careful not to damage the electrical cables.
5.7 Replacing the 5th wheel
WARNING
Danger of injury!
Solid stability must be guaranteed at all times when jacking up the table.
Figure 57
As soon as the base front panel has been removed, the
view of the entire system of the 5th wheel (marked blue)
becomes clear.
The complete system of the 5th wheel, is fixed with four
screws on the underside of the base and with two screws
inside the base.
Components of base
Figure 56
