Service manual for medifa 6000 mobile operating tables, version 2.0
5.8 Replacing the batteries
To replace the batteries, the table must first be jacked up.
To prevent short circuits, first remove the battery fuse [3].
To replace the batteries, it is necessary to remove the
base cover plate [1].
To do this, remove the two screws [2], carefully remove
the plate and lay it down with its front side on a flat
surface. Be careful not to damage the electrical lines of
the battery fuse [3] and the foot switch connector [4].
HAZARD
Danger of electric shock!
Please note that this work must be carried out in a zero-voltage state.
Once the base front panel has been removed, the view of
the batteries [5] is clear.
To replace the batteries, it is necessary to dismantle the
entire system of the 5th wheel. You will find information
on this in the chapter “Replacing the 5th wheel”.

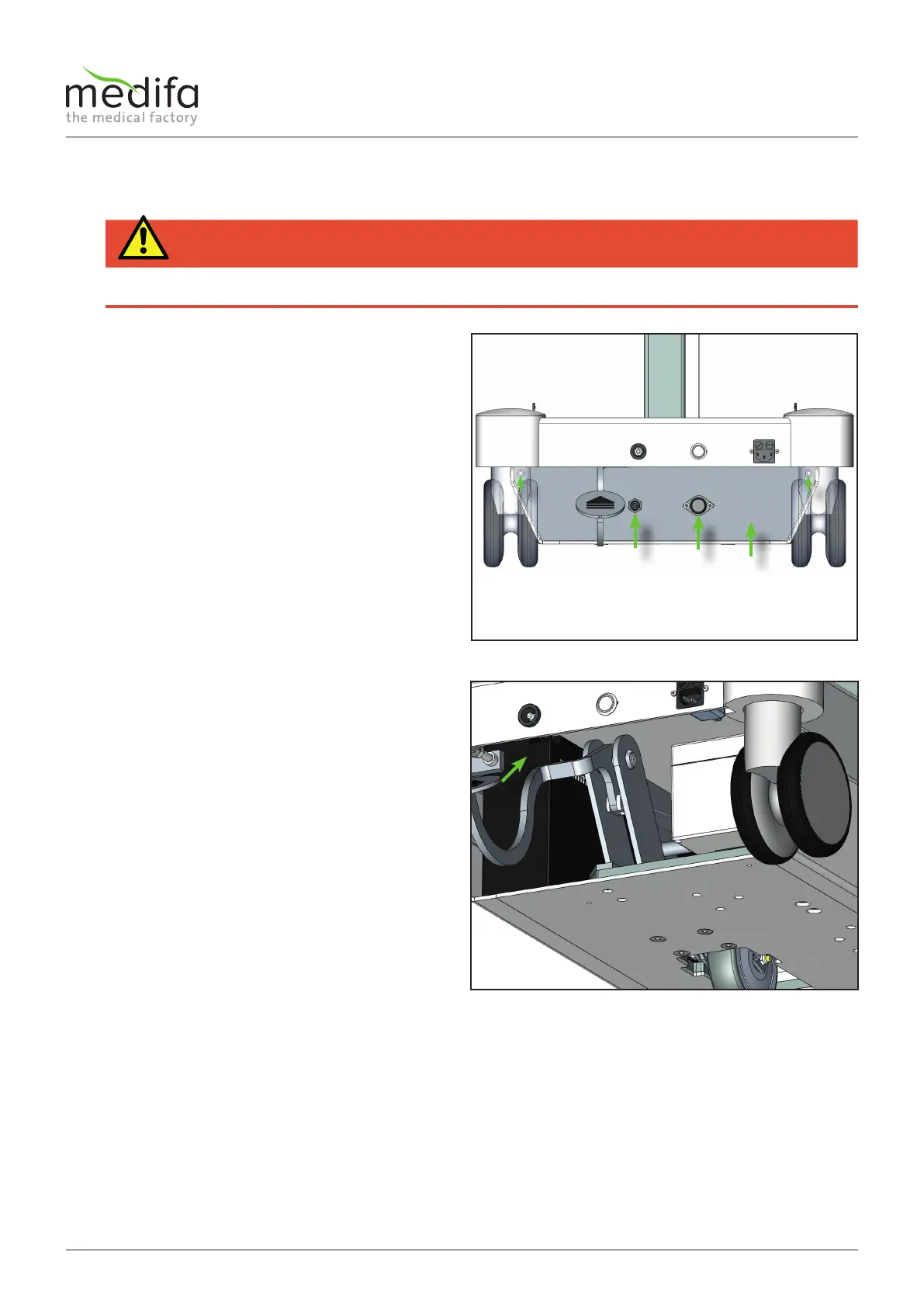

Figure 61
Figure 62
Components of base
