Service manual for medifa 6000 mobile operating tables, version 2.0
First of all, the connection of the two hexagonal shifting
rods of the driveability should be disconnected.
Loosen the fork head of the connecting rod from the
receptacle by removing the bolt with integrated safety
device.
Subsequently, the screw[7] must be removed from the
connecting tube of the shifting rod.
Now press the connecting rod of the mobile unit to the
left against the base wall.
Then pull the two batteries forwards, and by turning
them slightly to the right, pull them out of the base.
The battery cables must be removed according to the
cable diagram and connected to the new batteries. The
reassembly is carried out in reverse order.
Components of base

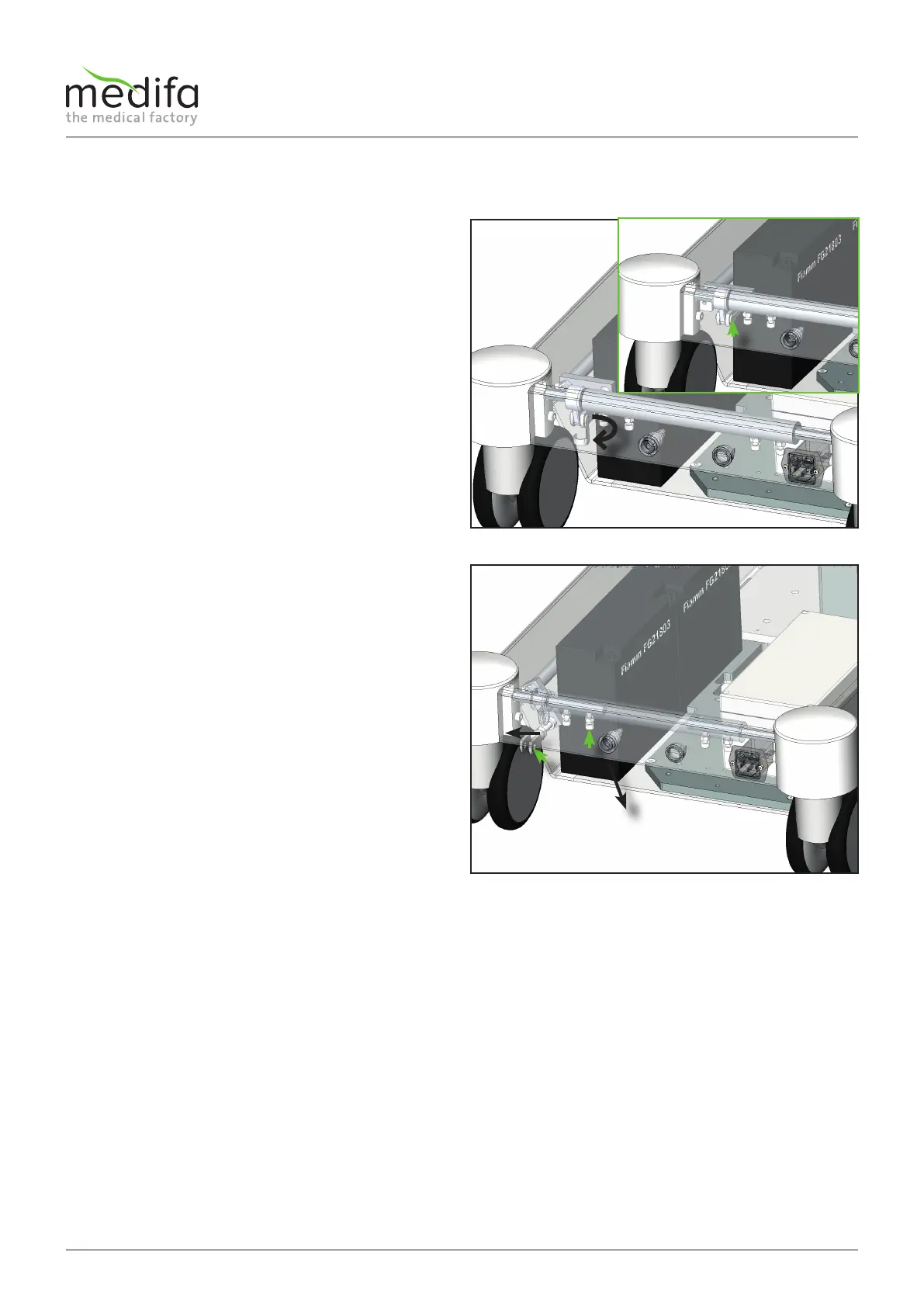

Figure 63
Figure 64
