12 Service manual for medifa 6000 mobile operating tables, version 2.0

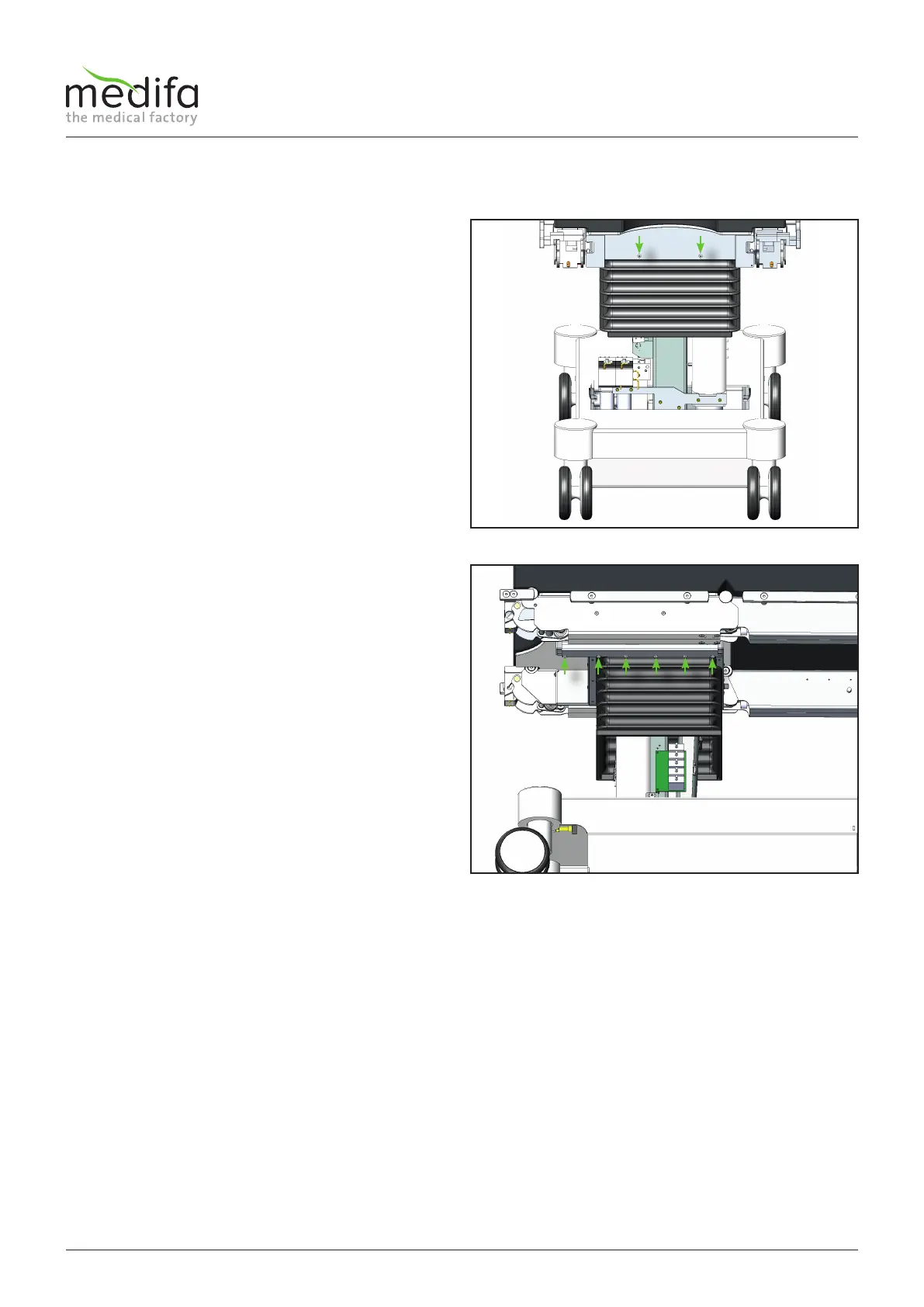

To loosen the bellows, the two screws on the top and
bottom side of the joint box must be removed.
4.2 Releasing the bellows
Then the lateral fixing plates must be loosened. Remove
all screws on the left and right side.
Now the bellows can be pulled over the two brackets and
placed on the base.
The entire technical equipment of the table can now be
easily handled.
Figure 10
Figure 11
Components column / top frame
