Service manual for medifa 6000 mobile operating tables, version 2.0
4.6.5 Displacement encoder system of the back plate adjustment
4.6.5.1 Replacement on model 601700
To dismantle the distance measuring system of the lower
backrest cylinders, the cladding, pelvic padding plate and
support should be removed beforehand. Please refer to
the relevant chapters of this manual for instructions!

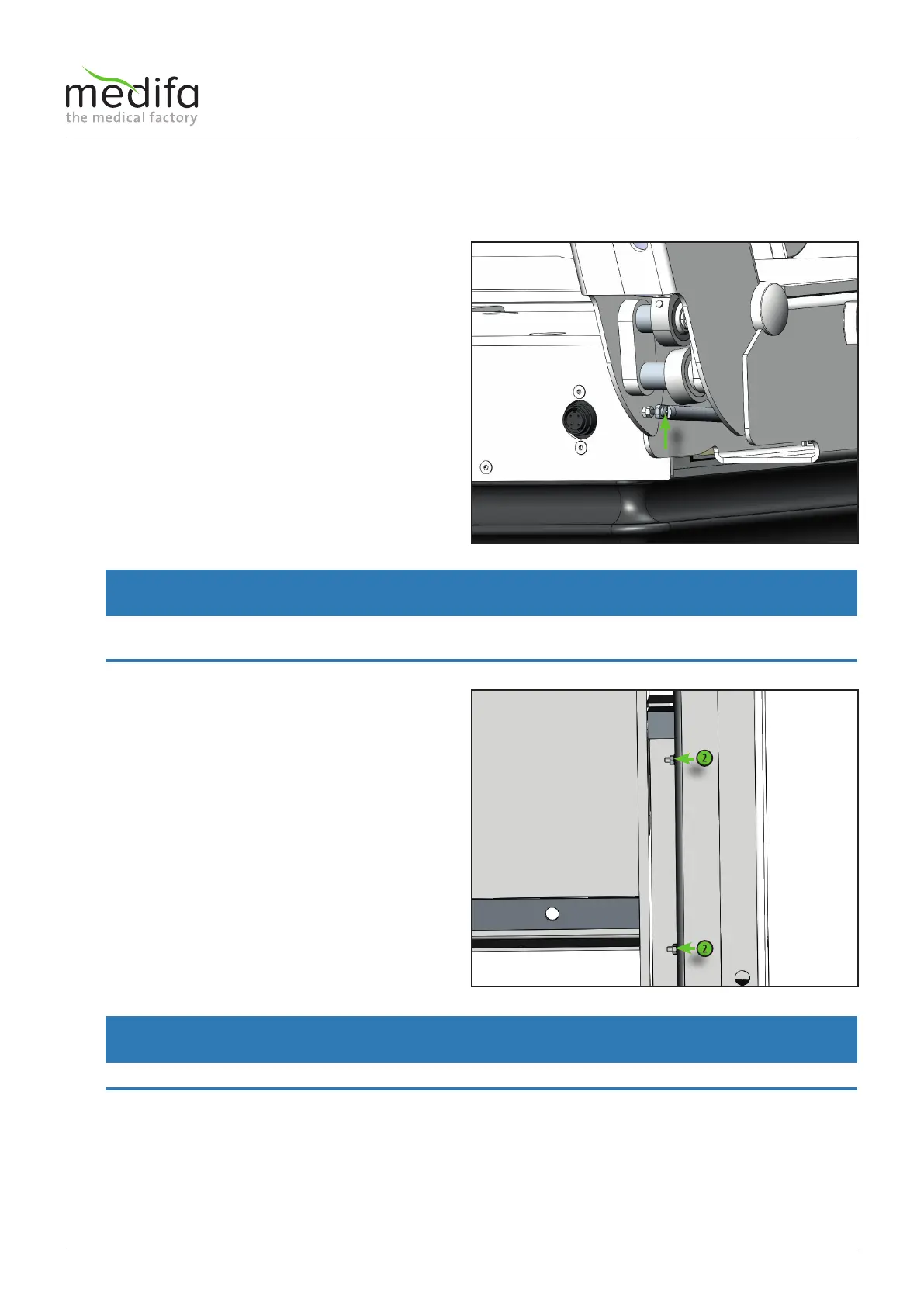

First remove the screw connection [1] of the adjustment
rod of the displacement encoder system below the
transition joint of the right backrest rail.
Then, remove the two screws[2] for fixing the
displacement encoder system. These are located on the
side between the joint box and the pelvic rail.
In the next step the wiring must be traced back to the
connection point and removed from the distributor
board. Document the position of the cables and the
cable ties before starting the disassembly. Now the
displacement encoder system can simply be pulled out of
the pelvic rail to the back. When installing the new cable,
replace the cable ties in their original position.
WARNING
Do not pull on the adjustment rod of the displacement encoder system, as this could pull the tab of the system out of the
rail and render the system useless.
WARNING
When installing the new cable, replace the cable ties in their original position.
Components column / top frame
Figure 23
Figure 24
