Service manual for medifa 6000 mobile operating tables, version 2.0
5.9 Replacing the twin swivel castors
To replace the castors, the table must first be jacked up.
Before starting disassembly work, the table should be
brought into an unlocked position.
Loosen the fork head [1] of the connecting rod from the
receptacle by removing the bolt with integrated safety
device.
In the following, all screws [2] must be loosened from the
connecting tube.
The hexagonal rods, which can now be moved, can
be pushed together and removed from the wheel
mountings.
At the top side, the mains input module must still be
removed. To do this, remove both screws [3] and the cable
of the mains input module.
The dismantling of the driveability is to be handled in the
same way on both the bottom side and the top side.
WARNING
Danger of injury!
Solid stability must be guaranteed at all times when jacking up the table.

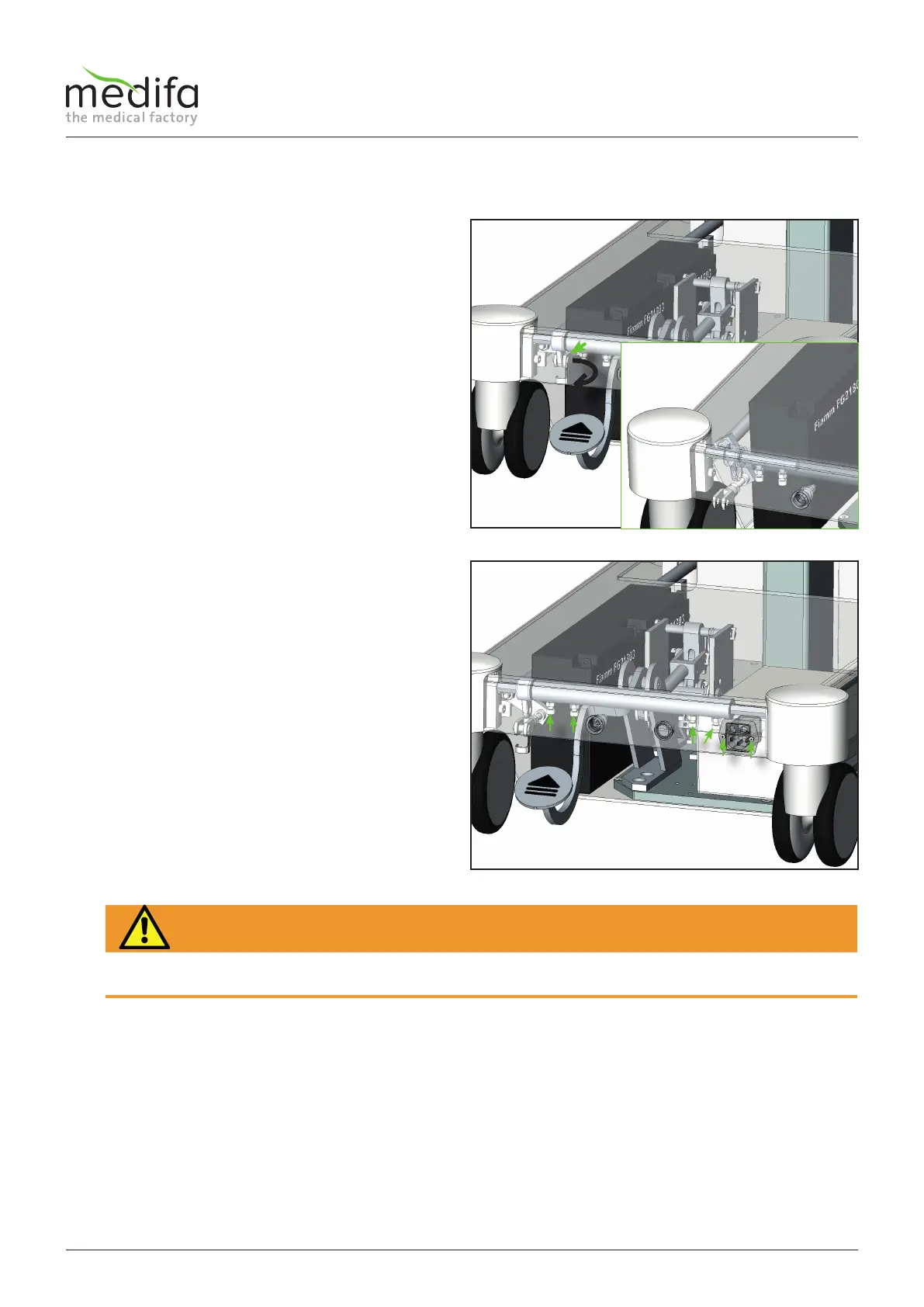

Figure 65
Figure 66
Components of base
