Service manual for medifa 6000 mobile operating tables, version 2.0

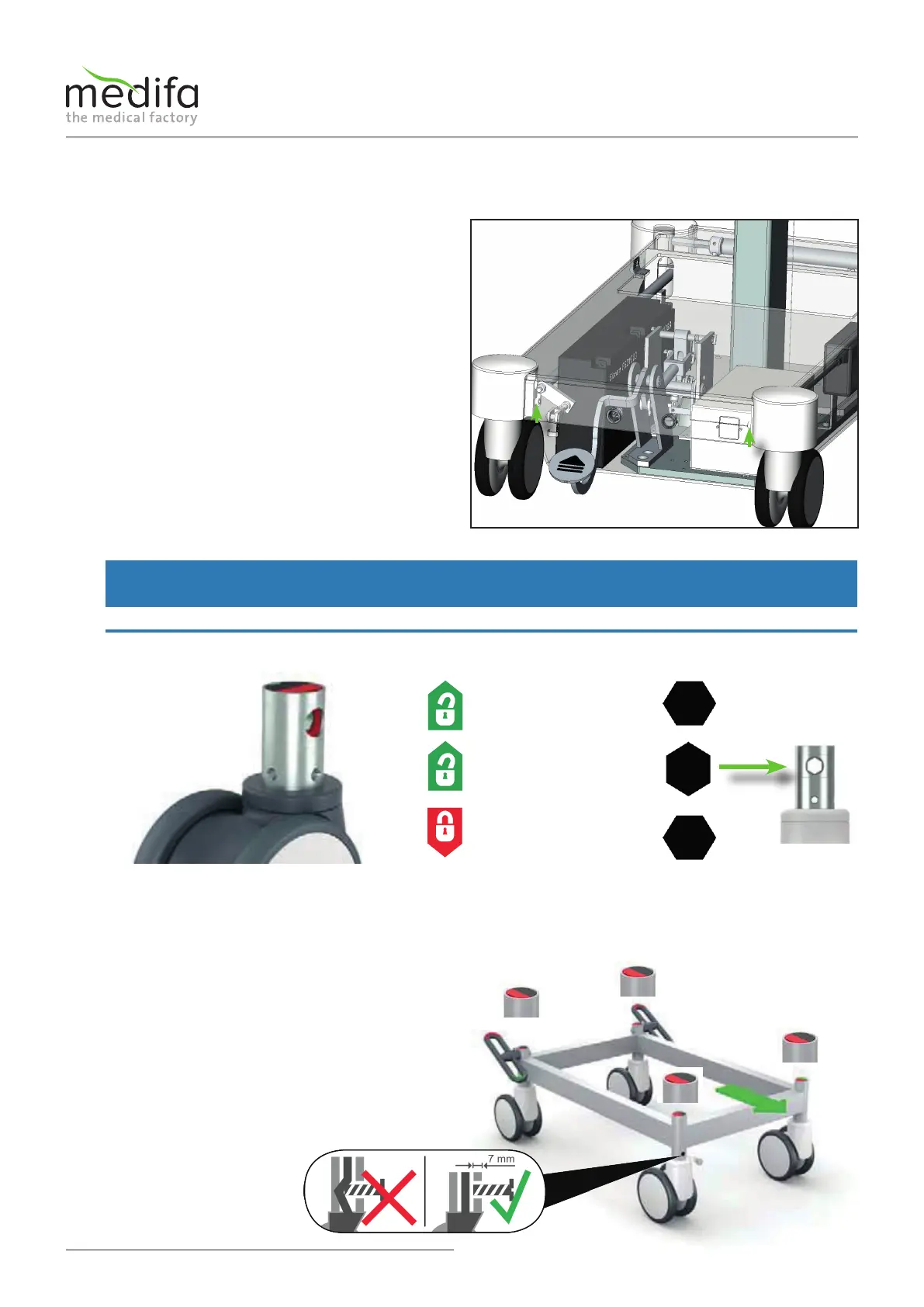

All parts marked in red must be aligned
with the same side of the frame.
After dismantling the shift linkage, the rollers can be
removed.
This is done by loosening the fixing screw [4] in the wheel
mount.
After inserting the new rollers, the shift linkage is
mounted in reverse order.
WARNING
To ensure that the rollers can be switched correctly, it is essential to follow the instructions in the following section!
Freewheel
Delivery condition:
Freewheel/zero
position
Completely locked
The switching of the hexagonal position on the rollers can now be installed as the rollers have been delivered.
This is unless the disassembly of the double swivel castors was done in braked condition. In this case, it is
necessary to switch the hexagonal position to total locking. Use a suitable hexagon socket tool for this.
Components of base
Figure 67
