5B-20 - MID-SECTION 90-830234R3 DECEMBER 1997

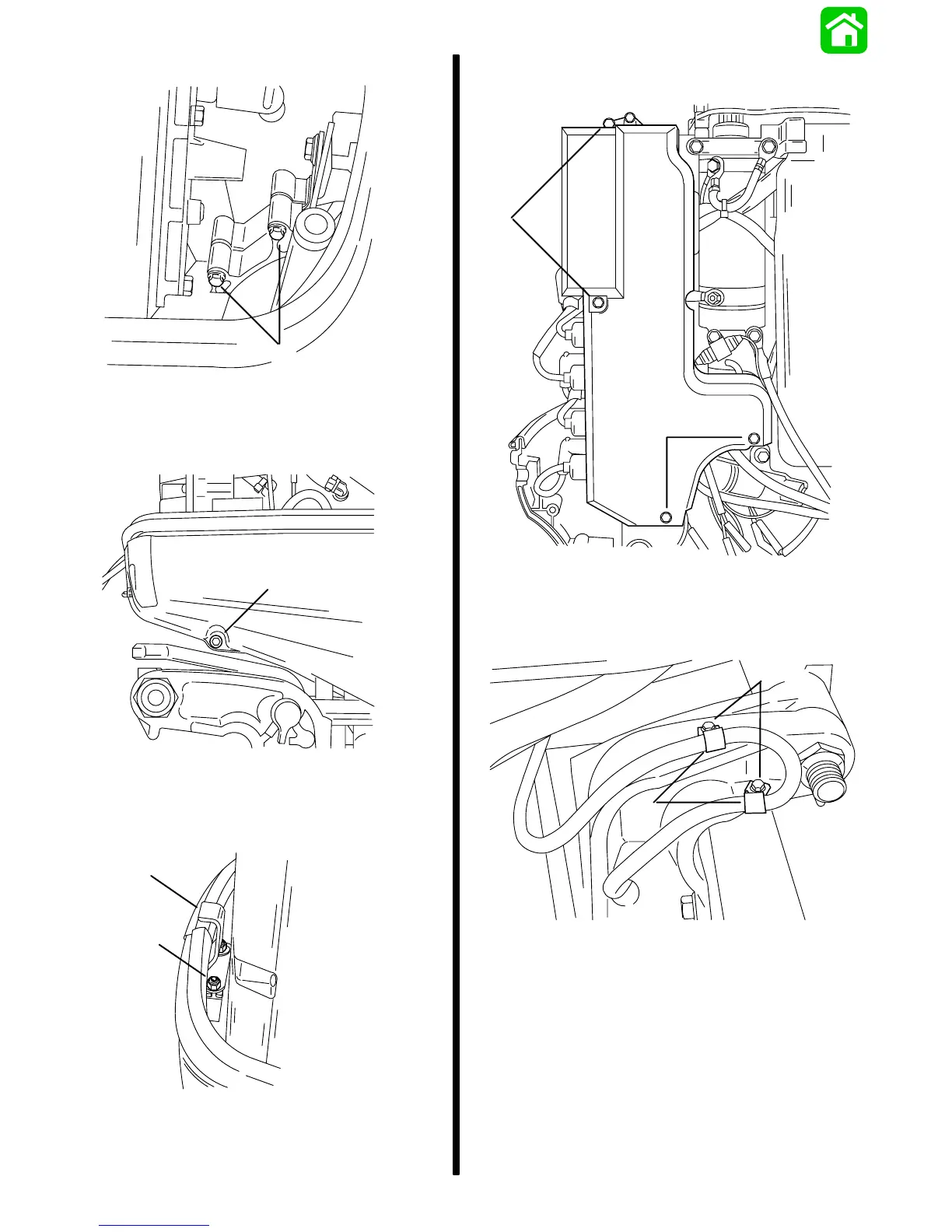

4. Remove 2 bolts securing aft end of lower cowling.
a
53953
a - Bolts
5. Remove bolt securing forward portion of lower
cowling.
a
53954
a - Bolt
6. Loosen PORT nut securing front latch to bottom
cowl and remove STARBOARD bottom cowl.
a
b
53955
a - Nut
b - Latch
7. Remove 4 bolts securing electrical plate cover
and remove cover.
a
a
53958
a - Bolts
8. Remove 2 bolts and J-clips securing trim motor
harness to starboard clamp bracket.
a
b
53957
a - Bolts
b - J-clips
