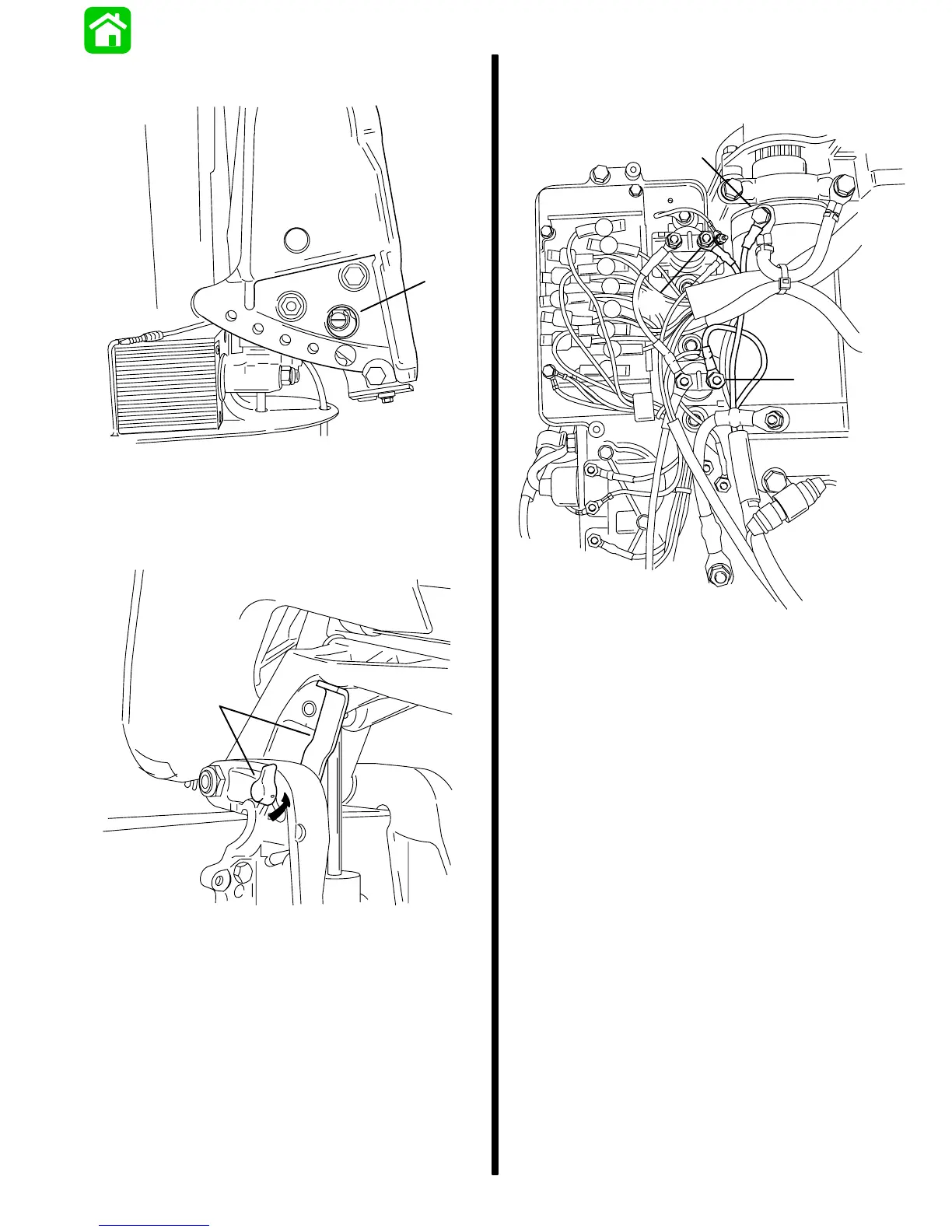

9. Turn manual release valve 3 turns COUNTER-
CLOCKWISE.
a
53969
a - Manual Release Valve
10. Manually raise outboard to the full UP position
and engage tilt lock lever to support outboard
while servicing power trim system.
a
53949
a - Tilt Lock Lever
11. Remove 2 nuts securing GREEN and BLUE trim
harness leads to solenoids. Remove bolt secur-
ing BLACK trim harness lead.
a
b
c
53940
a - GREEN Trim Lead
b - BLUE Trim Lead
c - BLACK Trim Lead
12. Remove trim gauge sender (if equipped).
