5B-22 - MID-SECTION 90-830234R3 DECEMBER 1997

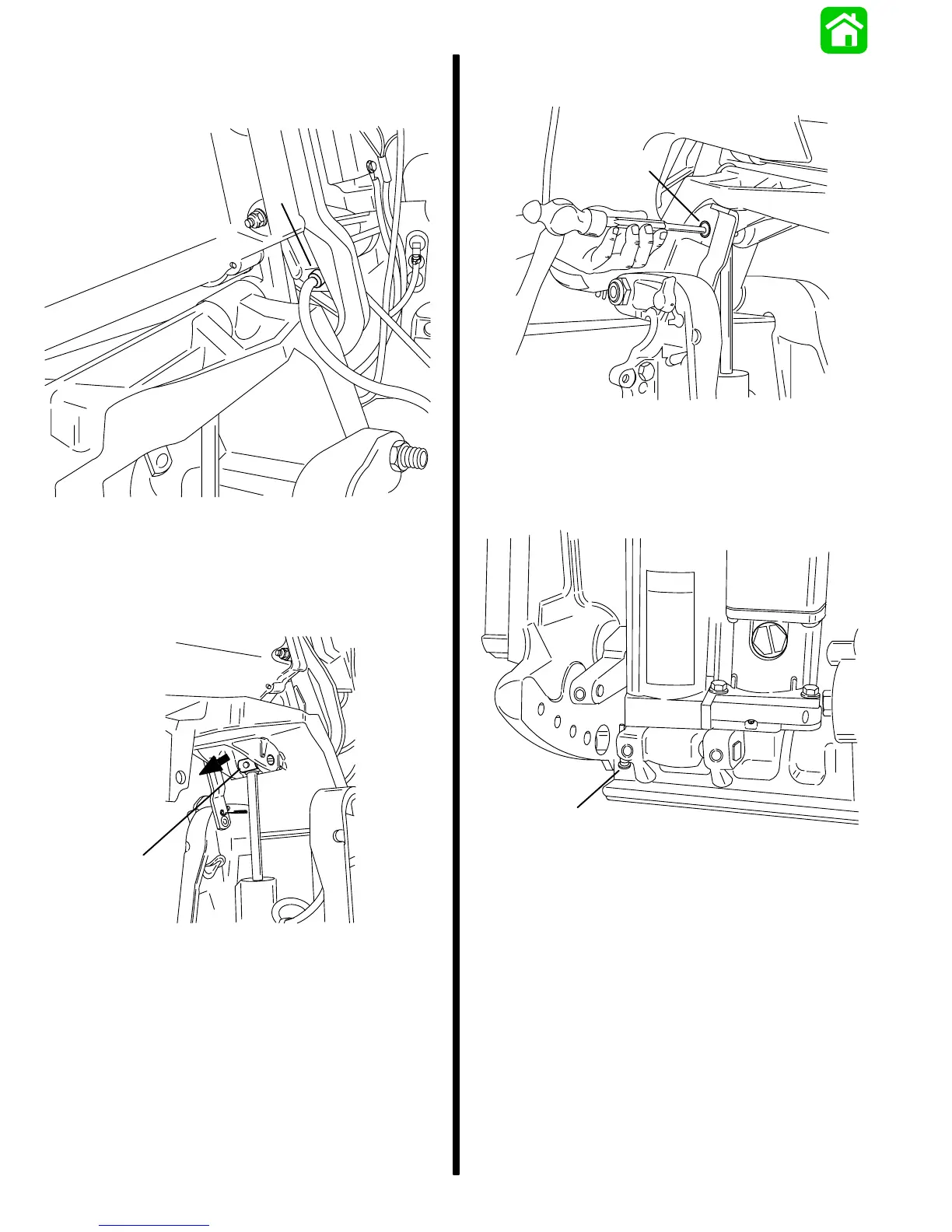

13. Push grommet up through engine tray and re-
move grommet from harness. Pull harness down
through engine tray.
a
53942
a - Grommet
14. Use suitable tool to remove upper headed cross
pin. Retain pin. Straight pin is hard to remove
(see item 15).
a
b
52941
a - Cross Pin (Design 1 - Straight)
b - Cross Pin (Design 2 - Headed)
15. If necessary, drive out upper pivot pin. This will
shear cross pin.
a
53949
a - Upper Pivot Pin
Inspect cross pin hole and pivot pin hole for damage.
16. Use suitable punch to remove lower cross pin.
Retain cross pin.
a
53950
a - Cross Pin
To Next Page
