90-830234R3
DECEMBER 1997
MID-SECTION - 5B-23

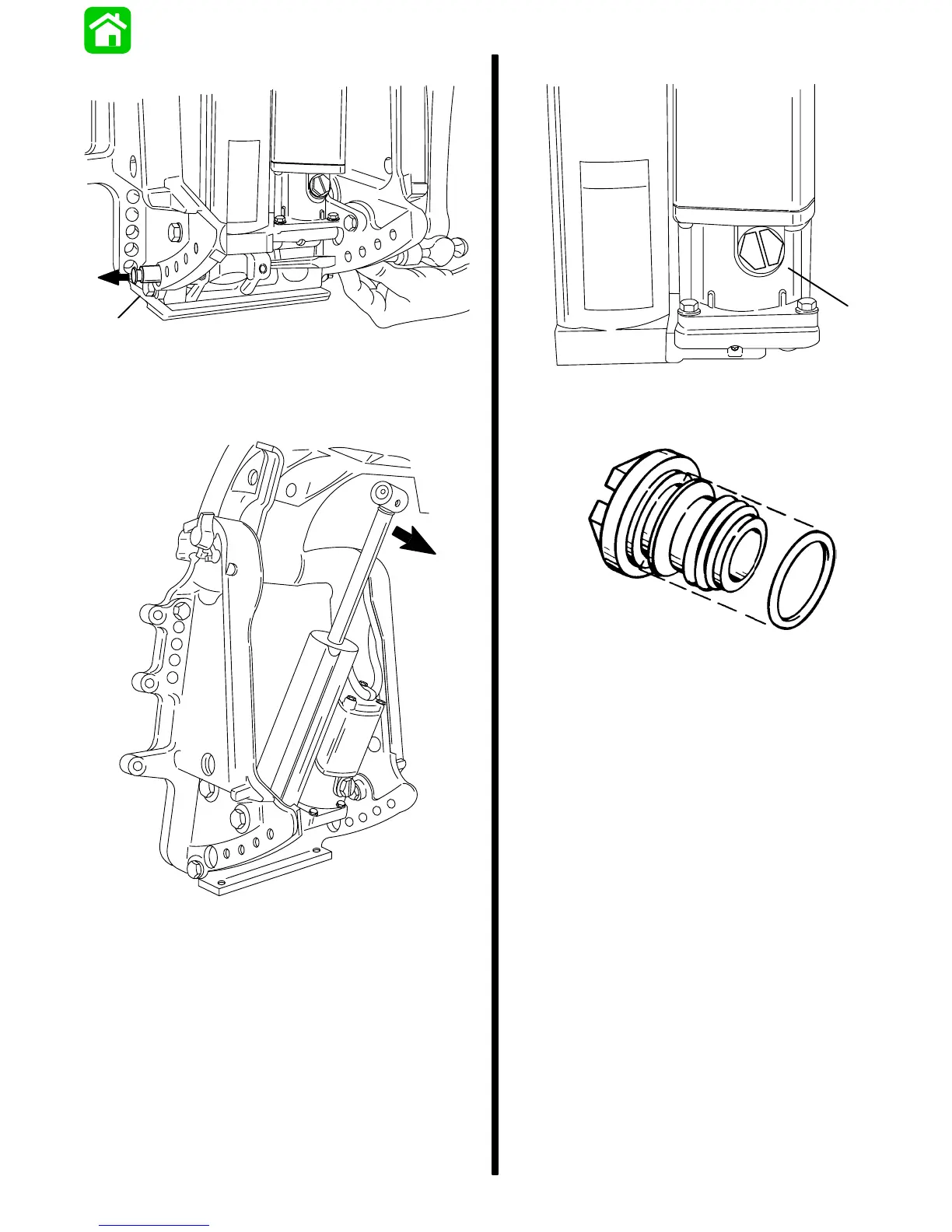

17.
Use suitable punch to drive out lower pivot pin.
a
53951
a
-
Pivot Pin
18.
T
ilt power trim assembly (top first) out from clamp
bracket and remove assembly
.
53944
19.
Remove fill screw and drain unit.
a
53945
a
-
Fill Screw
20.
Remove O-ring from fill cap.
51
194
340
342
