90-830234R3 DECEMBER 1997 MID-SECTION - 5B-39

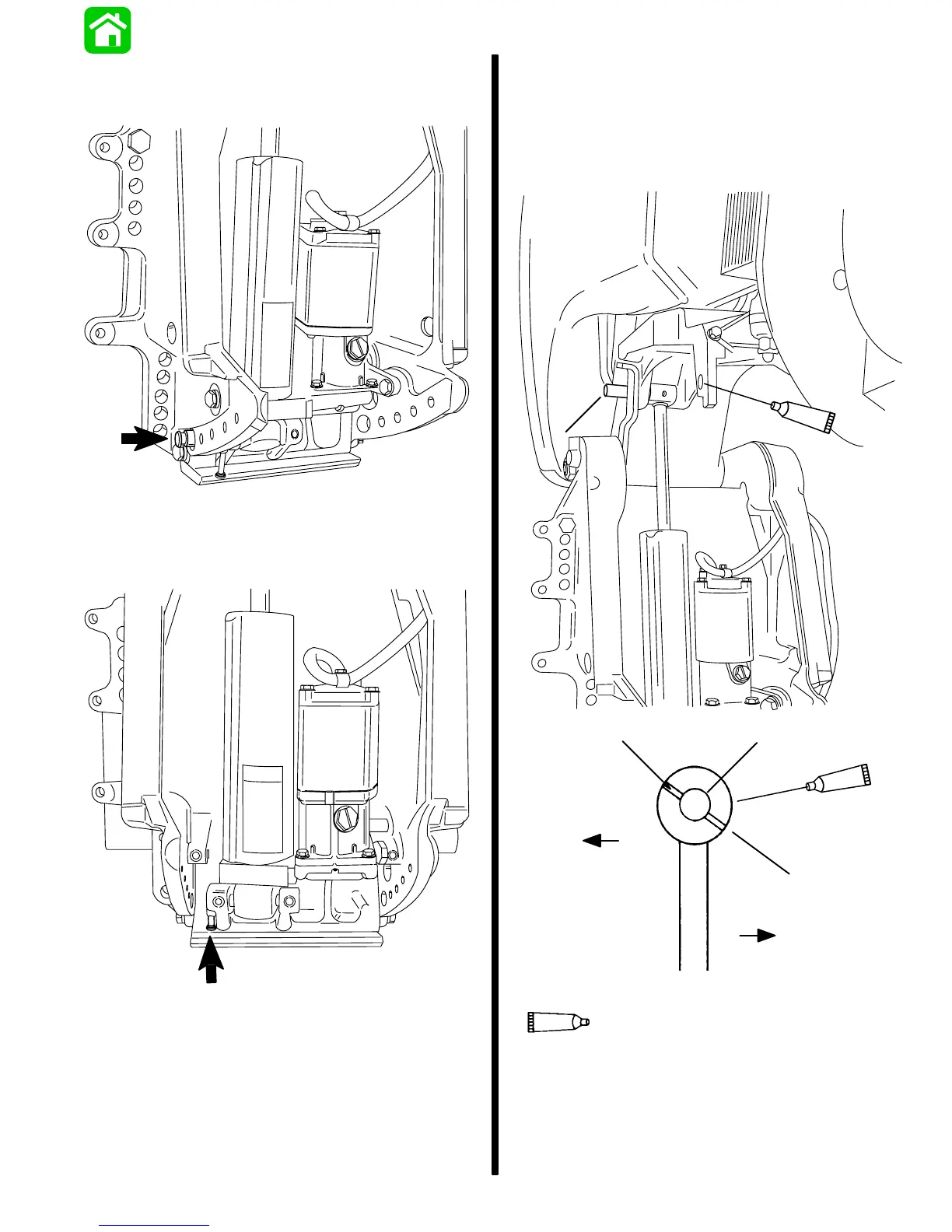

4. Using a suitable punch, drive lower pivot pin into
clamp bracket and trim cylinder assembly until
pivot pin is flush with outside surface.
a
53965
a - Lower Pivot Pin
5. Using a suitable punch, drive lower cross pin into
its respective bore until seated.
a
53967
a - Lower Cross Pin
6. Apply 2-4-C w/Teflon (92-825407A12) to surface
of upper pivot pin, pivot pin bore and trim ram
bore.
NOTE: Install trim ram with cross hole located as
shown .If trim ram is installed reversed, the trim send-
er (if installed) will not operate.
a
b
c
d
e
f
53966
95
2-4-C With Teflon (92-825407A12)
95
95
a - Pivot Pin
b - Trim Ram Bore
c - Install Trim Ram As Shown
d - Engine Side
e - Transom Side
f - Cross Hole
To Next Page
