5B-40 - MID-SECTION 90-830234R3 DECEMBER 1997

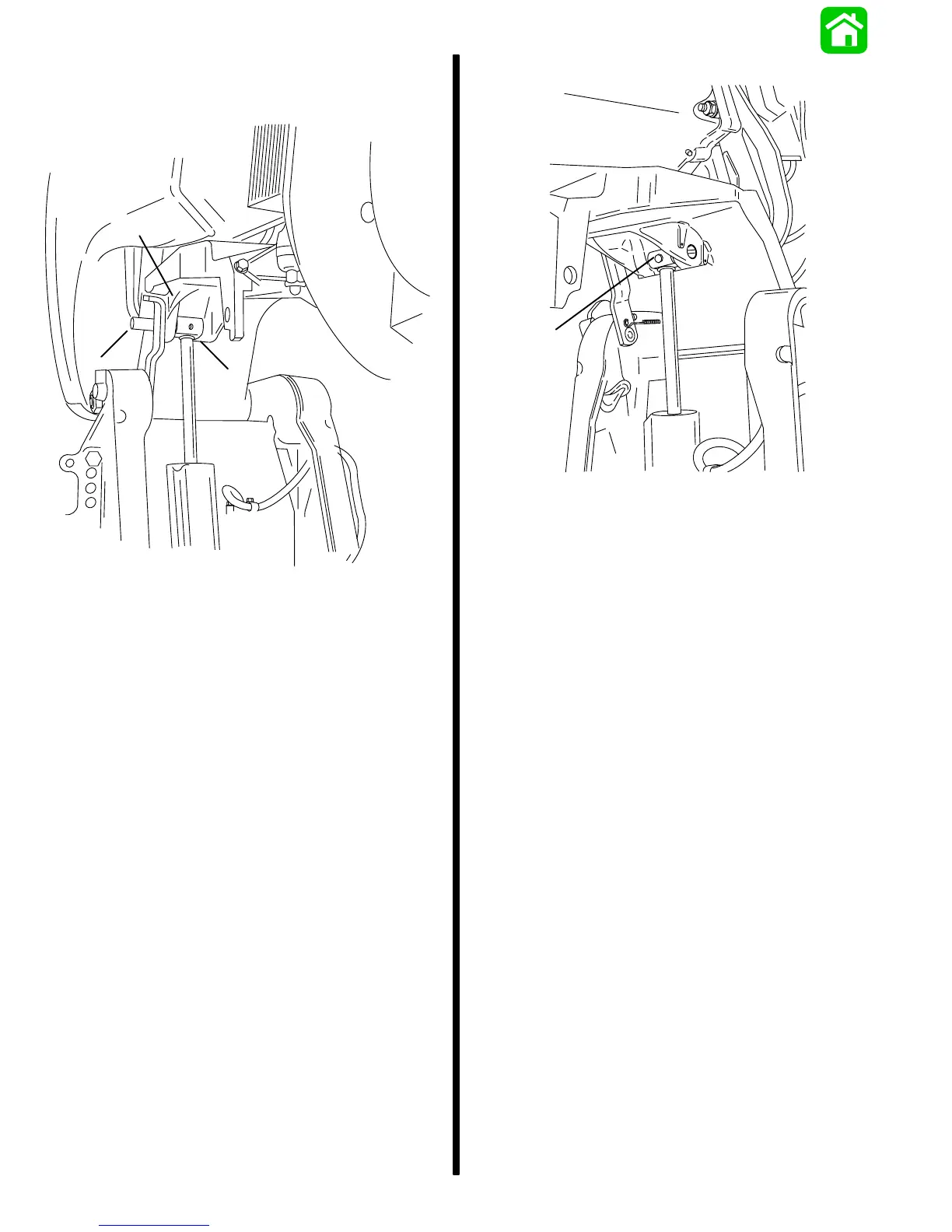

7. Using a suitable mallet, drive upper pivot pin into
swivel bracket and through trim ram until pivot pin
is flush with swivel bracket.
a
b
c
53966
a - Pivot Pin
b - Swivel Bracket
c - Trim Ram
8. Drive upper retaining pin in until seated.
a
52941
a - Retaining Pin
9. Recheck fluid level.
10. Power trim may now be operated to lower out-
board to desired position. Trim system is self
purging.
11. Reconnect power trim leads to relays under igni-
tion cover.
12. Reinstall spark plug leads to spark plugs.
13. Reinstall cowls.
14. Connect battery leads to battery terminals.
