5C-46 - MID-SECTION 90-830234R3 DECEMBER 1997

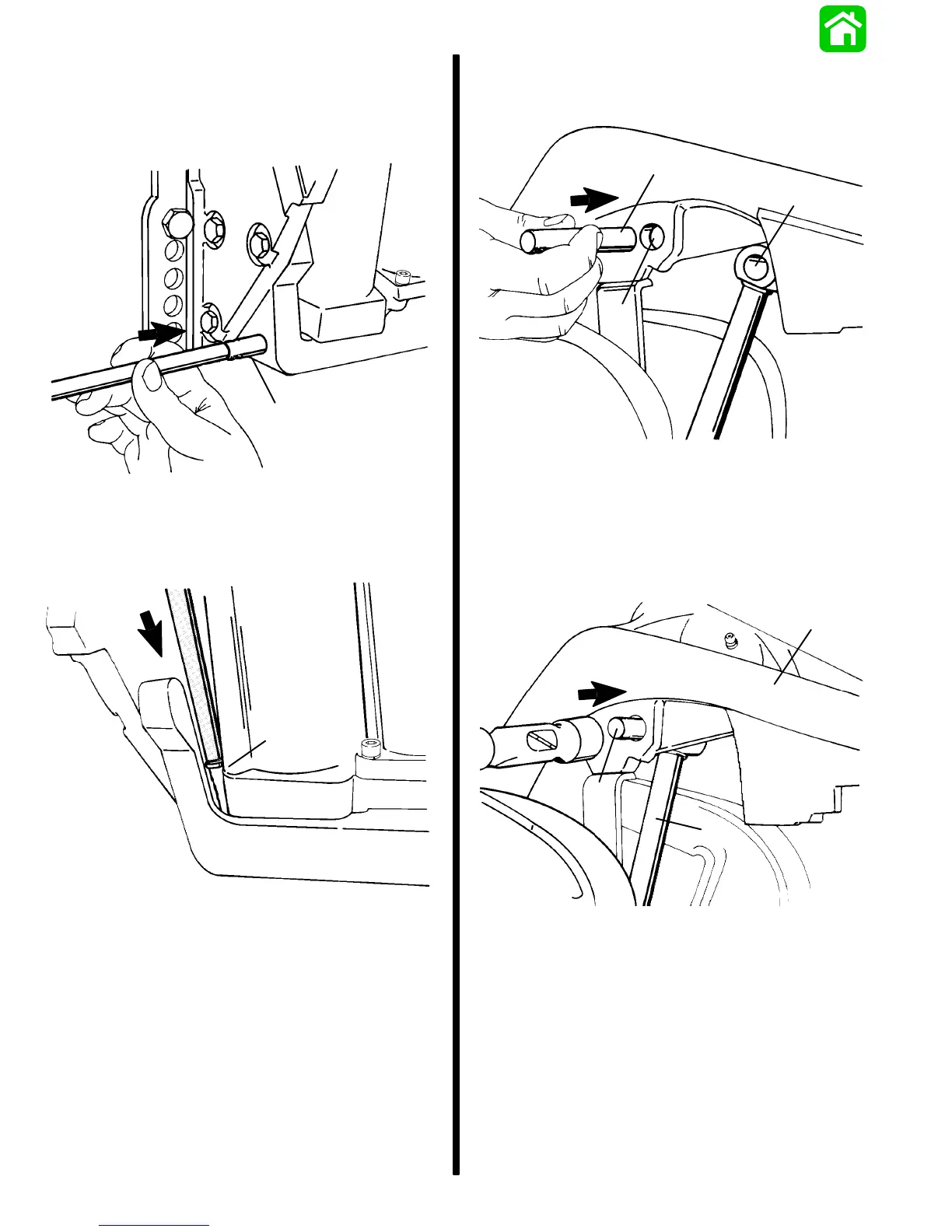

4. Apply 2-4-C w/Teflon Marine Lubricant
(92-90018A12) to lower pivot pin. Using a suit-
able punch, drive lower pivot pin into clamp
bracket and trim cylinder assembly until pivot pin
is flush with outside surface.
a
51147
a - Lower Pivot Pin
5. Using a suitable punch, drive lower dowel pin into
its hole until seated.
a
51148
a - Lower Dowel Pin
6. Apply 2-4-C Marine Lubricant (92-90018A12) to
surface of upper pivot pin, pivot pin bore and trim
ram bore.
a
c
b
51148
a - Pivot Pin
b - Pivot Pin Bore
c - Trim Ram Bore
7. Using a suitable mallet, drive upper pivot pin into
swivel bracket and through trim ram until pivot pin
is flushed with swivel bracket.
a
b
c
51148
a - Pivot Pin
b - Swivel Bracket
c - Trim Ram
