90-830234R3
DECEMBER 1997
MID-SECTION - 5C-47
8.

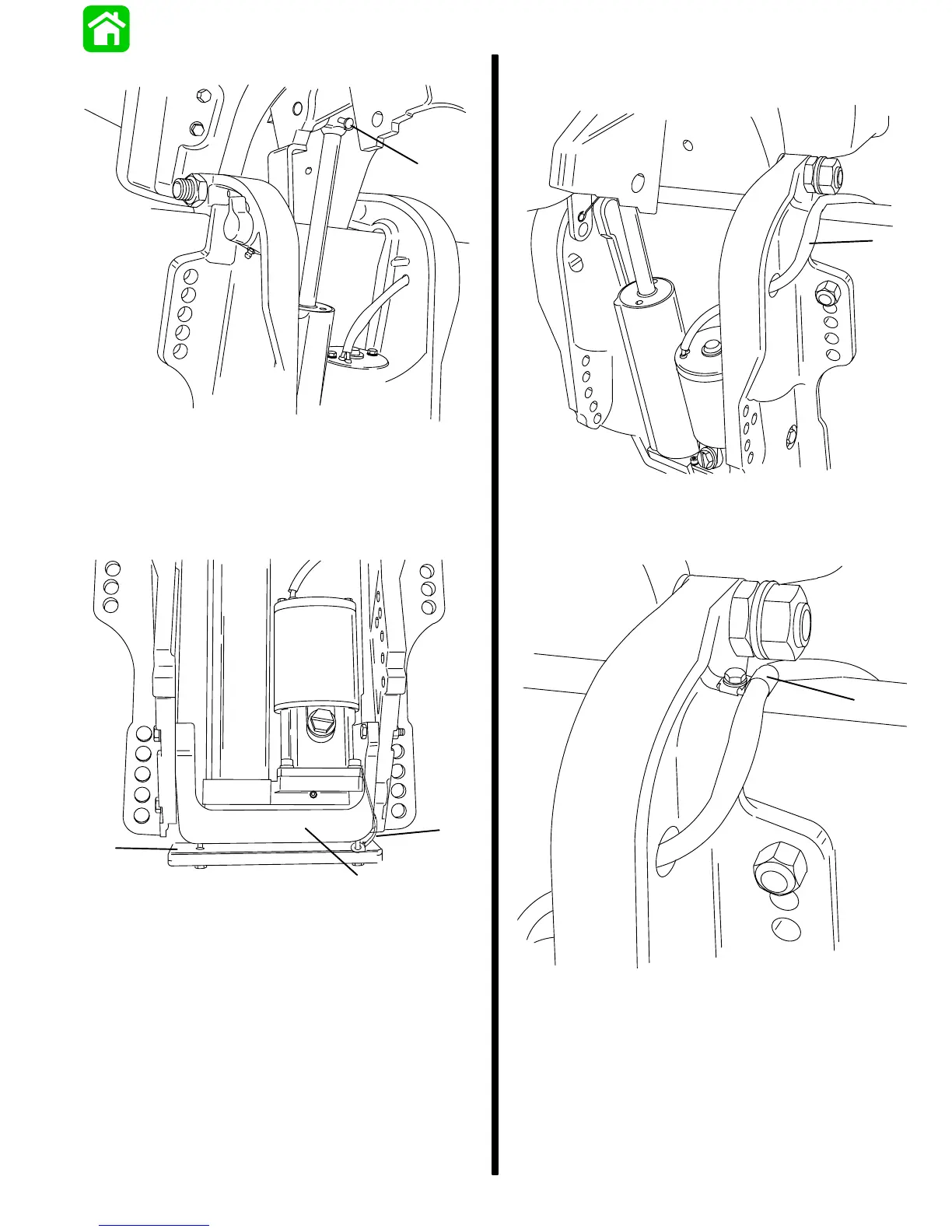

Drive trilobe pin (a) into its hole until seated.
a
55464
a
-
T
rilobe Pin
9.
Install sacrificial aluminum anode to reservoir
bracket placing ground strap between bracket
and anode as shown.
a
c
b
55465
a
-
Sacrificial Anode
b
-
Ground Strap
c
-
Bracket
10.
Route trim harness through clamp bracket and
cowling.
a
55264
a
-
T
rim Harness
1
1.
Secure trim harness with clamp as shown.
a
a
-
Clamp
406
408
