90-830234R3 DECEMBER 1997 ATTACHMENTS/CONTROL LINKAGE - 7B-11

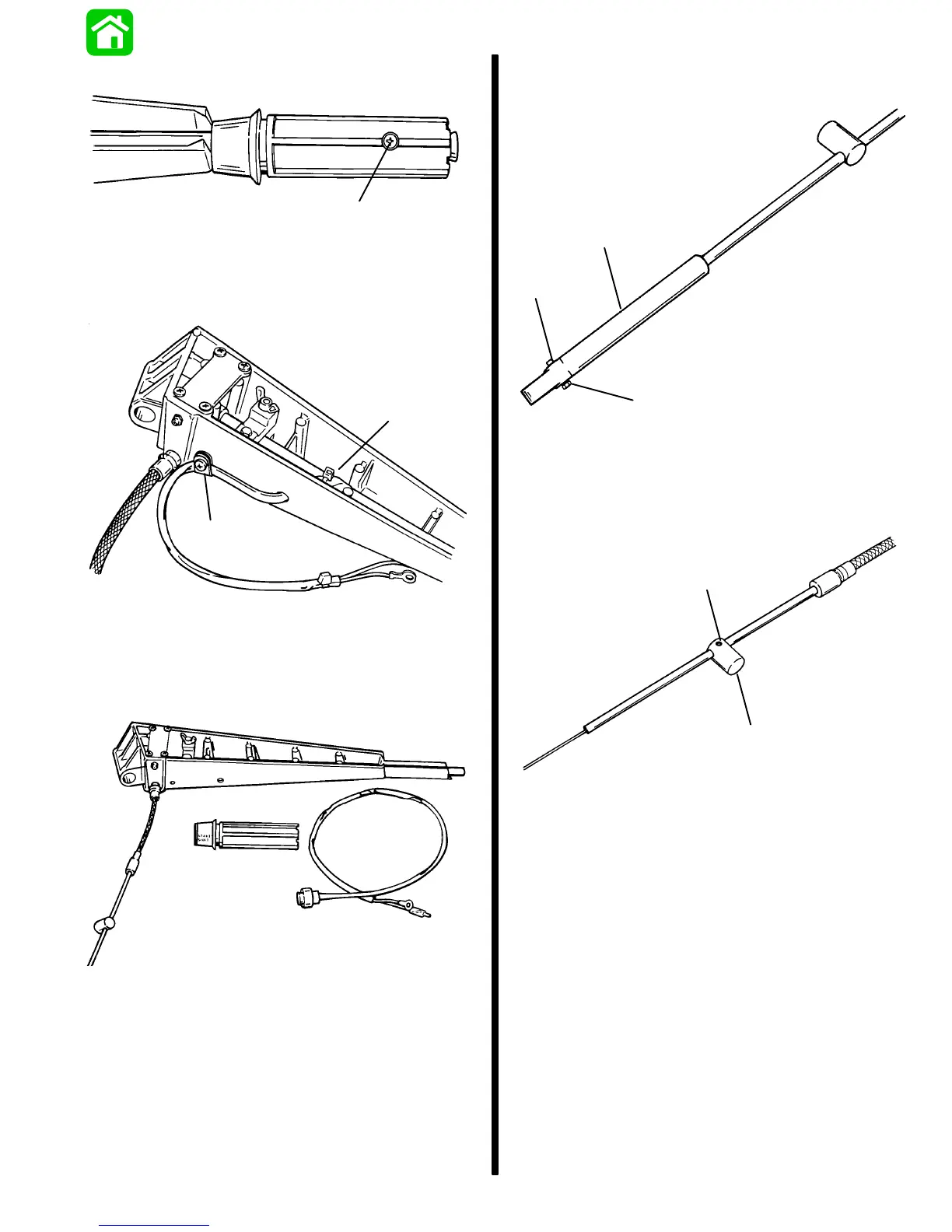

2. Remove screw from twist grip.
a
51603
a - Screw
3. Cut sta-strap securing stop switch harness and
remove screw from harness J-clip.
a
b
51603
a - Ties
b - Screw
4. Remove stop switch and twist grip from tiller
handle.
51603
5. Remove throttle cable anchor screws and re-
move cable guide.
a
b
a
51602
a - Anchor Screws
b - Throttle Cable Guide
6. Remove allen screw from brass barrel and re-
move barrel.
a
b
51602
a - Allen Screw
b - Brass Barrel
