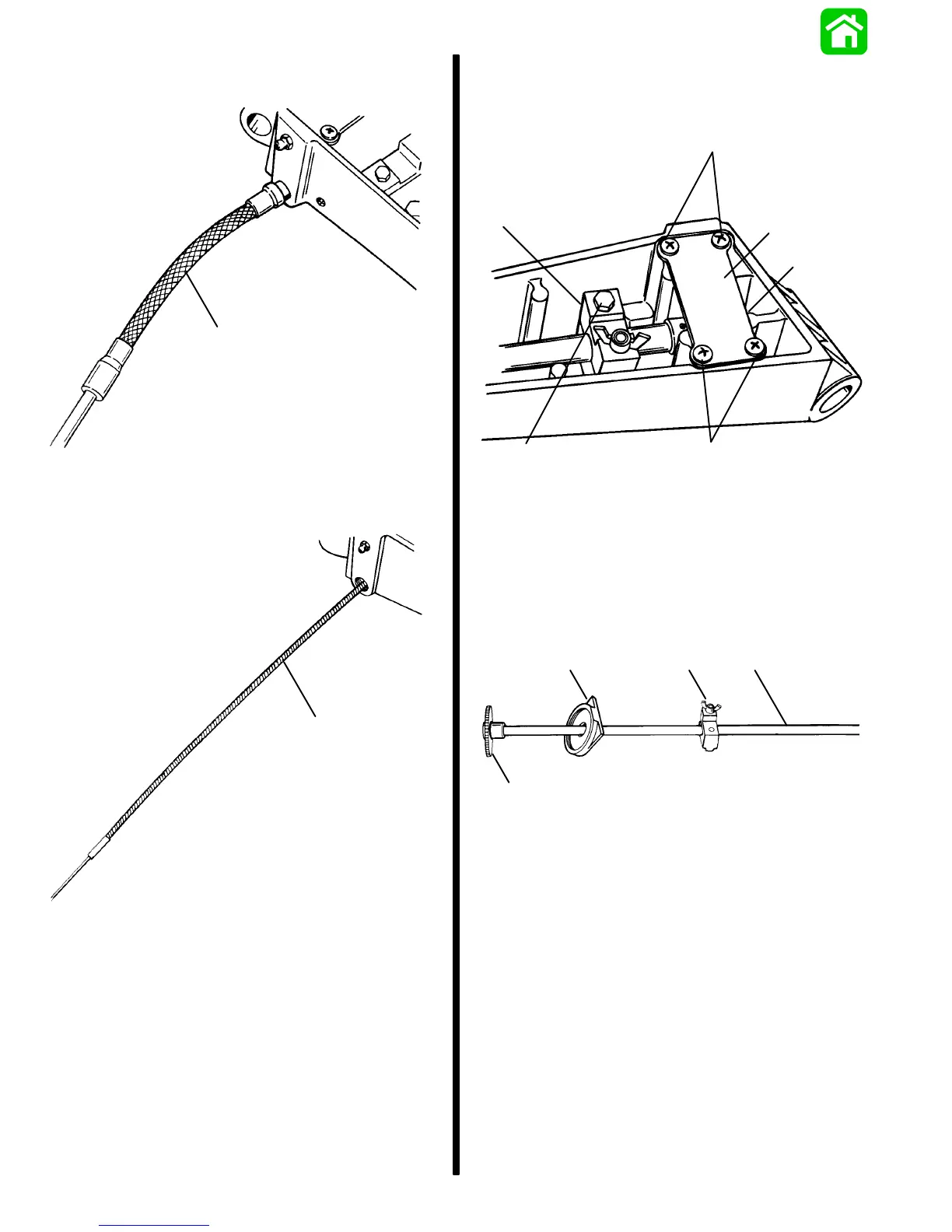

7. Unscrew (counterclockwise) stainless conduit
from tiller handle.
a
51603
a - Conduit
8. Pull throttle cable from tiller handle.
a
51604
a - Throttle Cable
9. Remove cover plate and gasket from tiller
handle.
10. Remove bolt from throttle friction assembly.
a
b
c
d
e
c
51604
a - Cover Plate
b - Gasket (below plate)
c - Screws
d - Throttle Friction Assembly
e - Bolt
11. Remove throttle arm, gear assembly and friction
device from tiller handle. Slide gear cover and
friction device off of throttle arm.
a
b
cd
51604
a - Throttle Arm
b - Gear Assembly
c - Friction Device
d - Gear Cover
