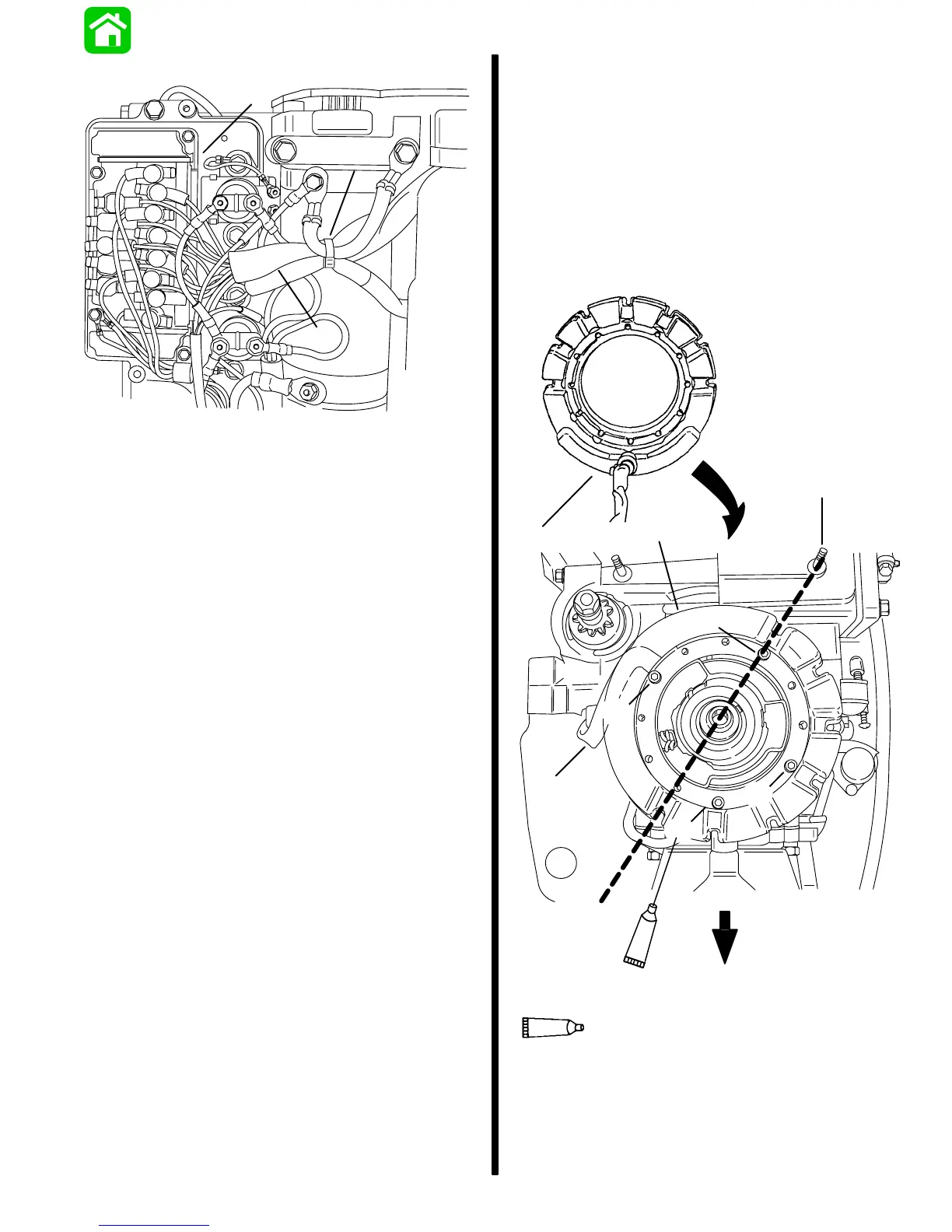

90-830234R3 DECEMBER 1997 ELECTRICAL - 2A-37
4 Cylinder Models
a
b
c
53970
a - Sta-Strap
b - Stator Harness
c - Switch Box
INSTALLATION
Two styles of stators are currently being used on
1994 through 1996 model 75 - 125 outboards.
These stators can be identified by a large rim or
small rim on the underside of the stator where the
stator harness exits the stator. These stators
MUST BE INSTALLED AS SHOWN RESPECTIVE-
LY OR PREMATURE STATOR FAILURE MAY OC-
CUR AS A RESULT OF STATOR INTERFERANCE
WITH THE ENGINE BLOCK.
Small Rim Stator
a
Front of Engine
b
c
d
d
d
e
d
51
Loctite 222 (92-809818)
51
54132
a - Small Rim
b - Exhaust Cover Bolt
c - High/Low Speed Winding Module of Stator
d - Stator Screws [Apply Loctite 222 to threads] [Torque
screws to 60 lb. in. (6.8 N·m)]
e - Stator Harness
To Next Page
