GASOLINE ENGINES BRAVO MODELS
Page 106 of 116
MCM 4.3L EFI, 5.0L EFI, 5.7L EFI, 350 Mag MPI, 6.2L MPI, 454 Mag MPI and 502
Mag MPI - Starting and Charging System Harnesses
76061
90 Amp
Fuse
A
B
C
a
b
c
1
1
2
1
2 3
4
5
6
7

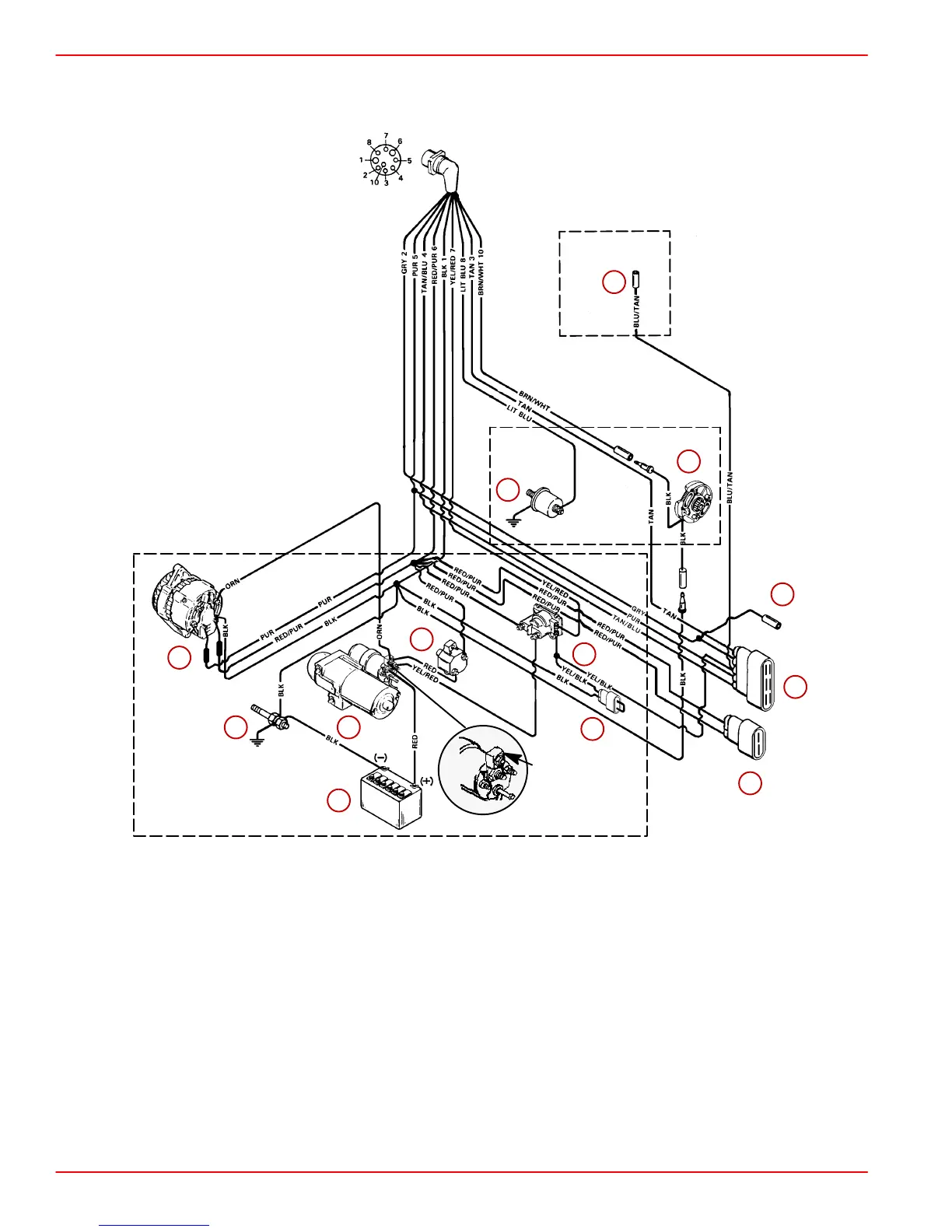

A - Audio Warning Components
1-Oil Pressure Switch
B - Instrumentation Components
1-Oil Pressure Sender
2-Trim Sender
C - Charging and Starting Components
1-Alternator
2-Ground Stud
3-Starter
4-Circuit Breaker
5-Starter Slave Solenoid
6-Jumper Wire Connection
7-Battery
a-Positive Power Wire To EFI System Harness
b-Harness Connector To EFI System Harness
c-Auxiliary Tachometer Lead
To Next Page
