GASOLINE ENGINES BRAVO MODELS
Page 107 of 116

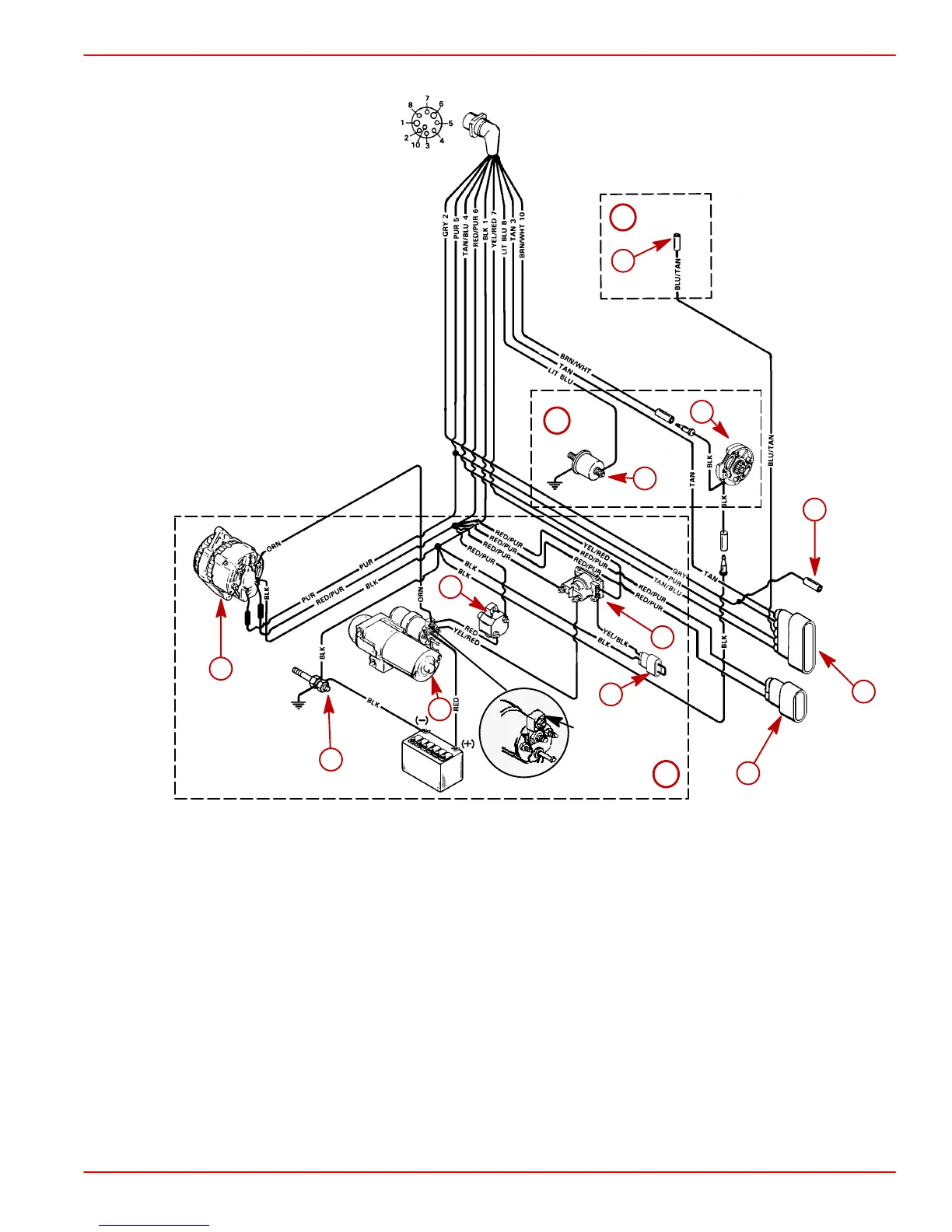

MCM 7.4L MPI Starting and Charging System Harness
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
ORN = ORANGE
PNK = PINK
PUR = PURPLE
RED = RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LIT = LIGHT
DRK = DARK
75995
90 Amp
Fuse
A
B
C
1
1
1
2
a
b
c
2
3
4
5
6
A - Audio Warning Components
1-Transmission Temperature Switch (If Equipped)
B - Instrumentation Components
1-Oil Pressure Sender - To Gauge
2-Trim Sender To Gauge
C - Charging and Starting Components
1-Alternator
2-Ground Stud
3-Starter
4-Circuit Breaker
5-Starter Slave Solenoid
6-Jumper Wire Connection
a-Positive (+) Power Wire Connector To EFI System Harness
b-Harness Connector To EFI System Harness
c-Auxiliary Tachometer Lead
To Next Page
