GASOLINE ENGINES BRAVO MODELS
Page 114 of 116
454 AND 502 CID BRAVO ENGINES

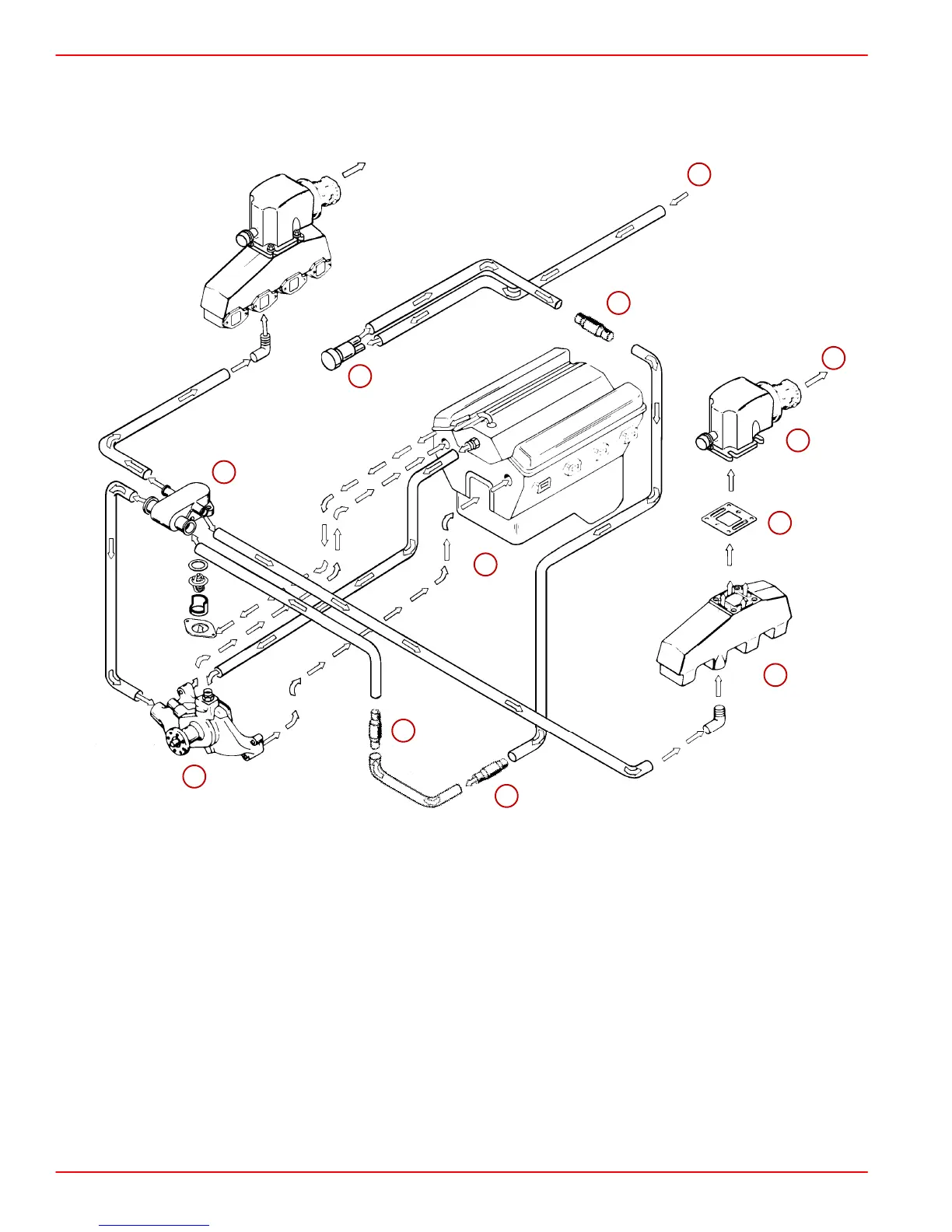

NOTE: Certain components in the following diagram may look different than on your particu-
lar power package, but the water flow paths remain similar on all engines.
75151
10
11
12
1
2
3
4
5
6
7
8
9
1-Seawater Intake (From Sterndrive)
2-Seawater Pump
3-Power Steering Cooler, If Equipped
4-Fuel Cooler
5-Engine Oil Cooler
6-Thermostat Housing and Cover Assembly
7-Engine Water Circulating Pump
8-Engine Block and Cylinder Head Assembly
9-Exhaust Manifold, Typical
10 - Restrictor Gasket
11 - Exhaust Elbow Assembly, Typical
12 - Water Flow Overboard
