GASOLINE ENGINES BRAVO MODELS
Page 115 of 116

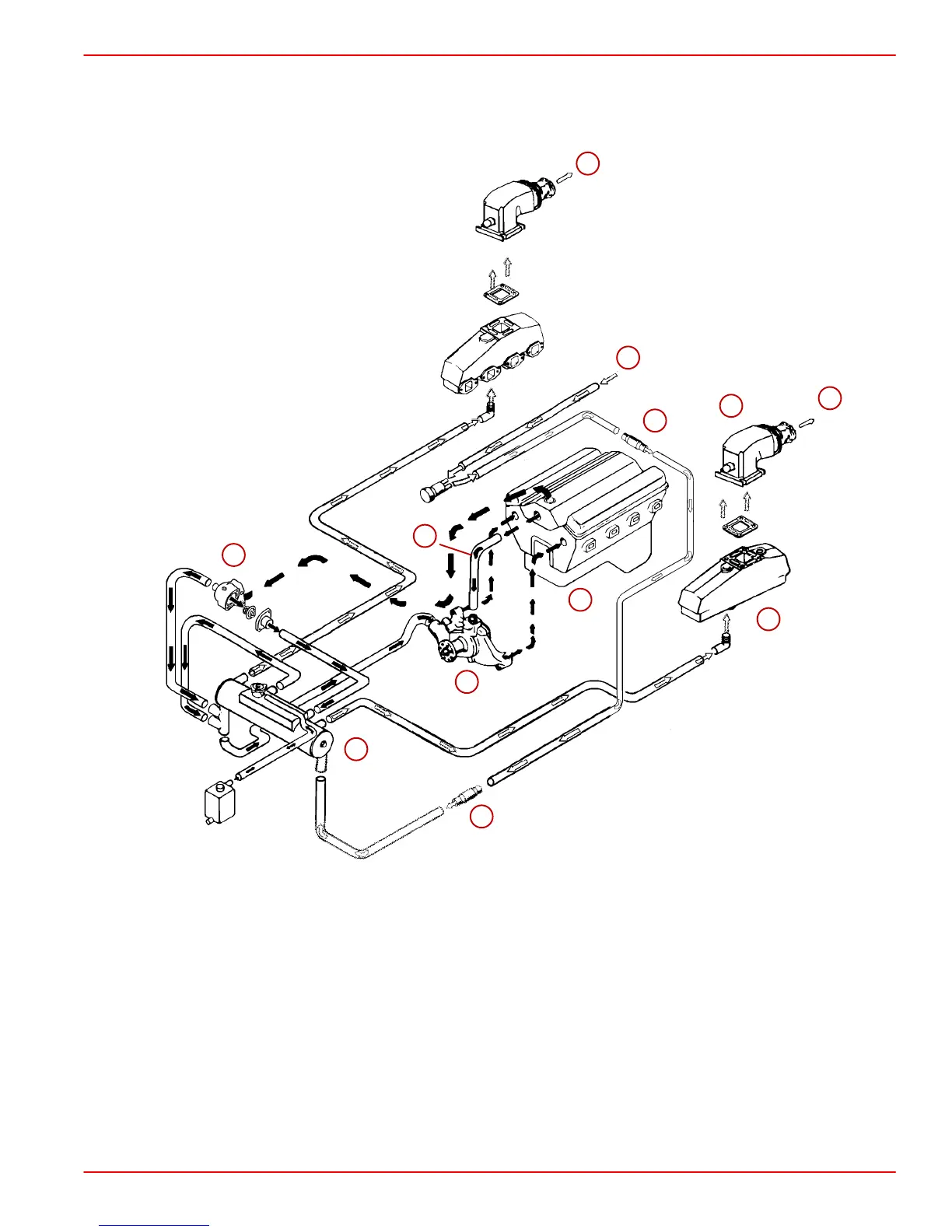

V6 and V8 Engines - Closed (Coolant) Cooling System
NOTE: Certain components in the following diagram may look different than on your particu-
lar power package, but the water and coolant flow paths remain similar on all engines.
75005
10
11
1
2
3
4
5
6
7
8
9
10
1-Seawater Intake (From Sterndrive)
2-Power Steering Cooler
3-Fuel Cooler, If Equipped
4-Heat Exchanger, Typical
5-Thermostat Housing and Cover Assembly
6-Engine Water Circulating Pump
7-Engine Block and Cylinder Head Assembly
8-Exhaust Manifold, Typical
9-Exhaust Elbow Assembly, Typical
10 - Overboard (Water and Exhaust Discharge)
11 - By-Pass Hose (454 and 502 CID Only)
