6. On all applications:
a. Move load weight and cargo weight to stern of boat to simulate greatest “stern-down”
attitude the boat will encounter such as when loading.
IMPORTANT: Be sure to consider swim platform loading and PWCs.
b. Recheck exhaust system measurements.
7. Measurements must be equal to or greater than, the following:
On All Applications:
Minimum Exhaust Elbow Height from Top of Elbow to Waterline
Model Measurement
All V6 and V8 13 in. (330 mm)
71533
a
b
c
d

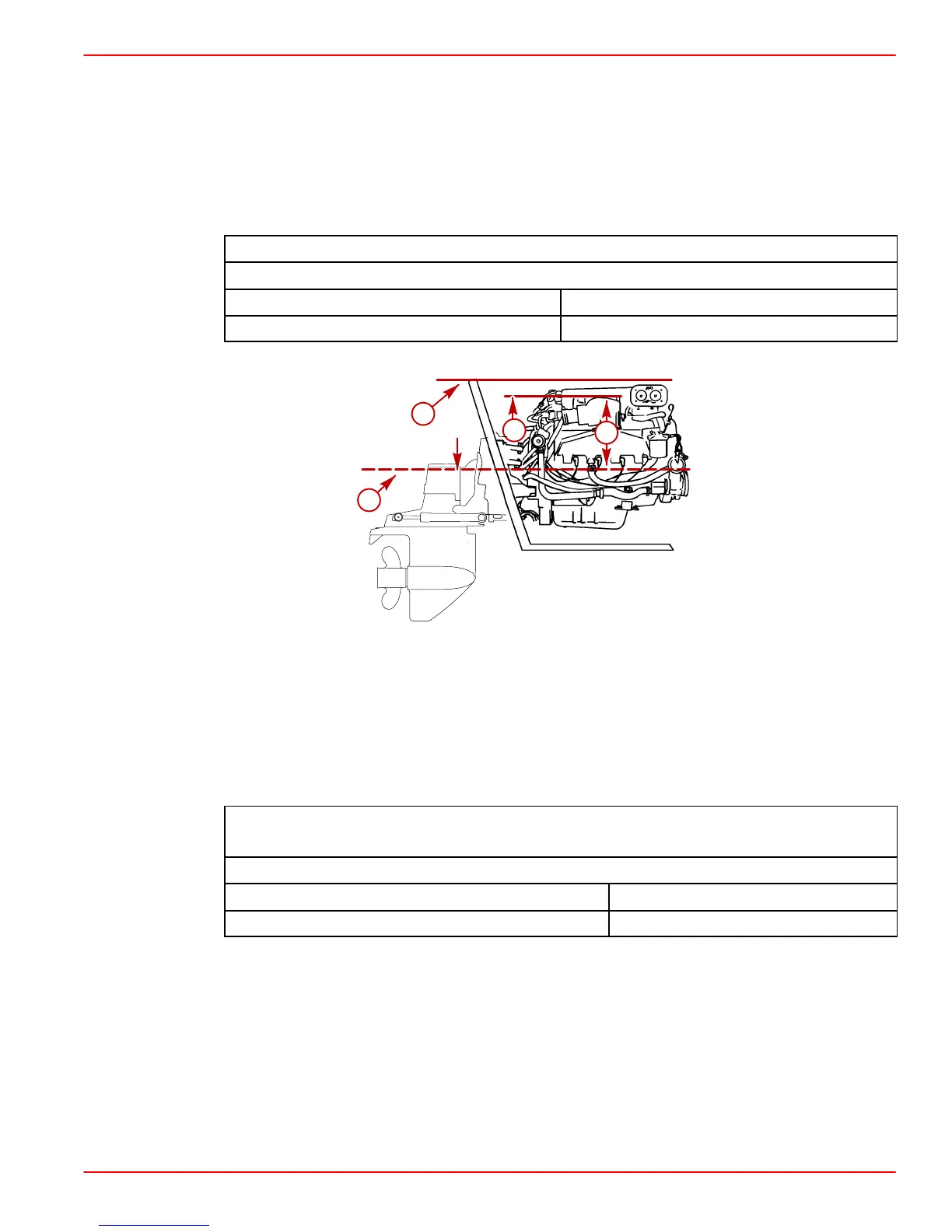

MCM 454/502 MPI Engine Shown (All V-6 and V-8 Engines Similar)
a-Top Of Transom
b-Highest Point On Exhaust Elbow
c-Measurement
d-Waterline
Additional Requirements for Through The Hull and
Through The Transom Exhaust System Applications:
Minimum Continuous Downward Slope (Exhaust Hoses, Collector, Etc.)
Model / Application Measurement
All Sterndrive 6°
