GASOLINE ENGINES BRAVO MODELS
Page 16 of 116
8. If measurements are less than shown in Step 7., exhaust elbow risers must be installed
to achieve proper dimension.
70621
a
b
c
d
e

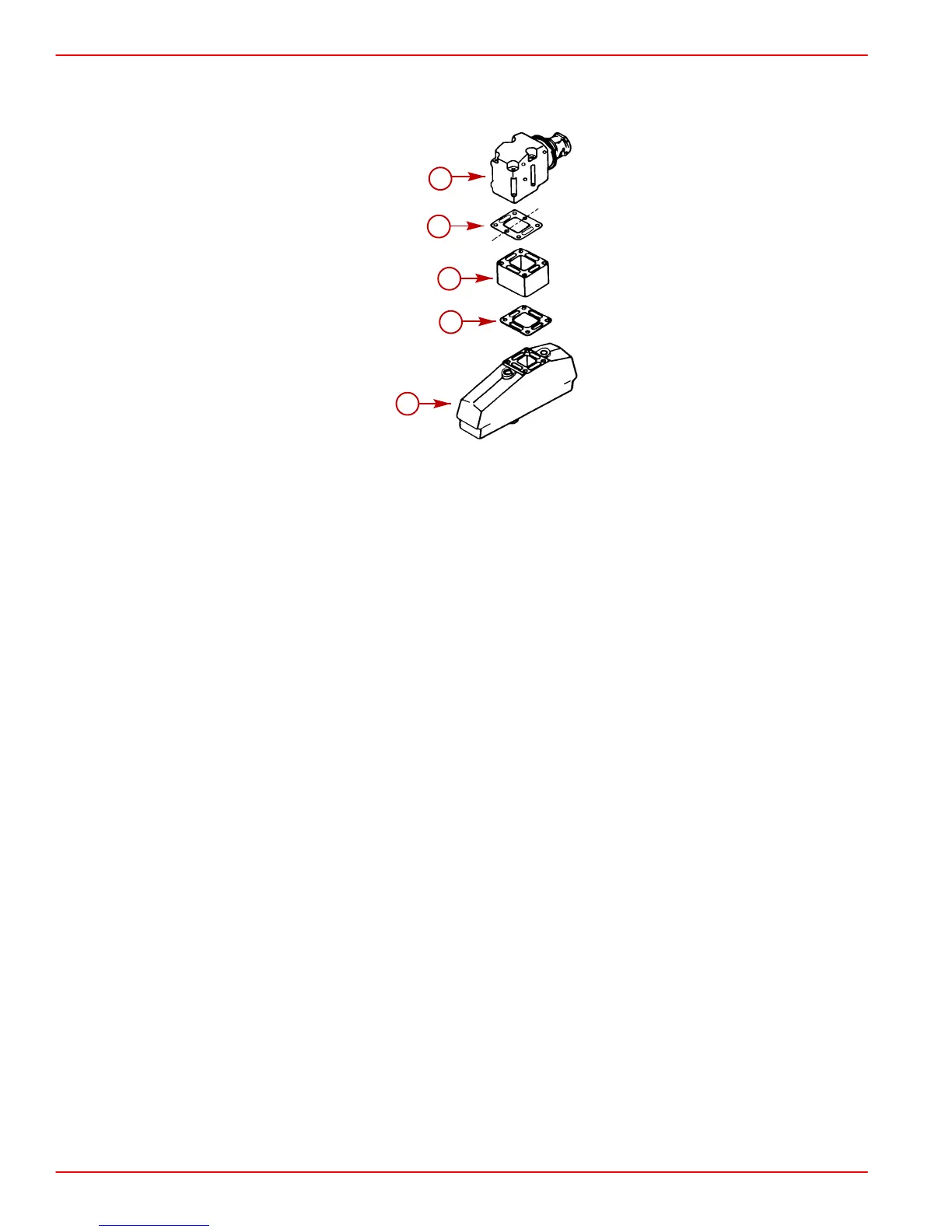

Typical Riser Installation
a-Exhaust Elbow
b-Restrictor Gasket
c-Riser
d-Open Gasket (4 Slots)
e-Exhaust Manifold
Additional information:
• No risers are available for the V6 engine with Single-Piece Exhaust Manifolds.
• Up to a maximum of 9 in. (229 mm) of riser height can be added, except on those engines
listed previously.
