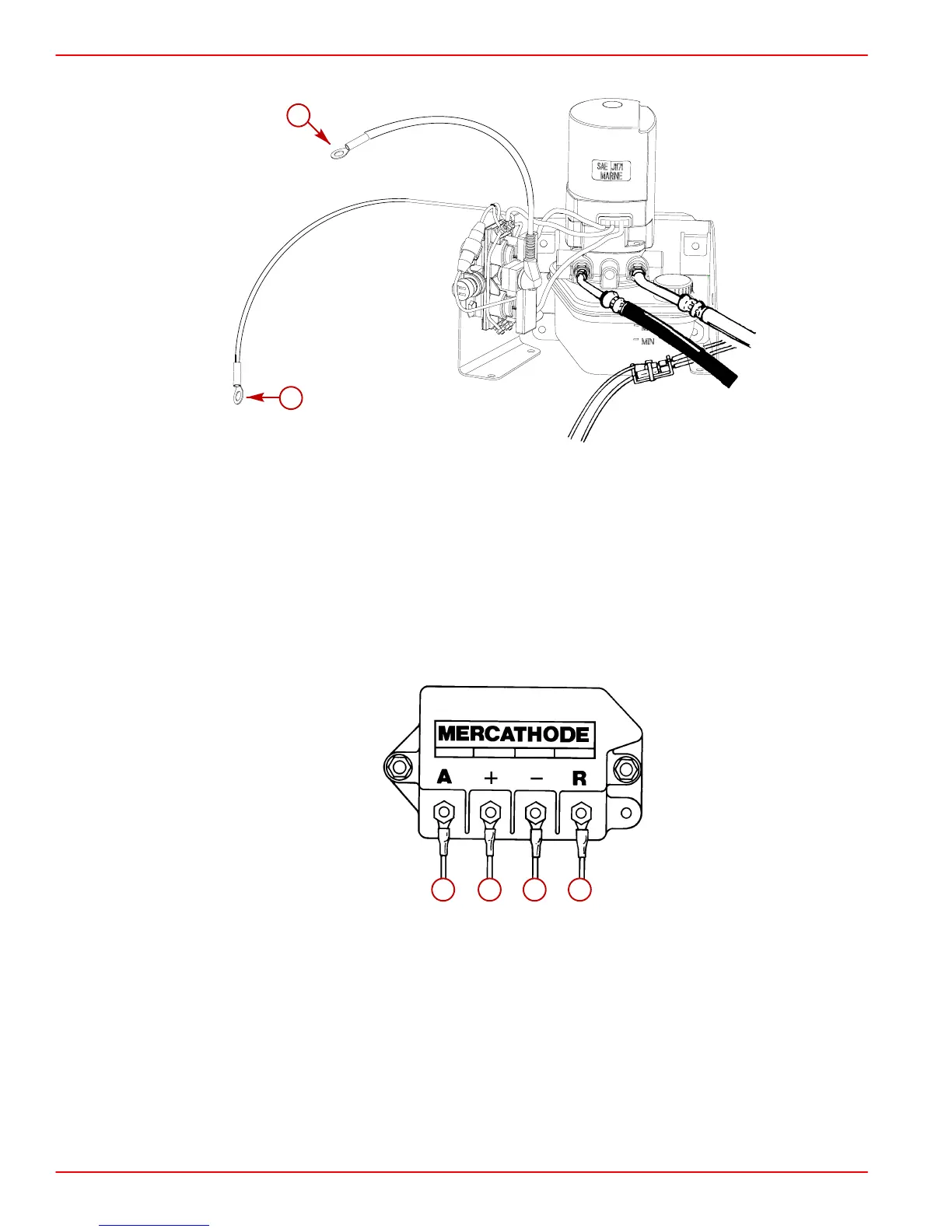

10. Connect power trim pump wires to battery.
76631
a
b
a-Positive Battery Lead
b-Negative Battery Lead
11. Connect trim position sender wires (from transom assembly) to engine harness.
12. Connect wires to MerCathode controller assembly as shown. Apply a thin coat of Liquid
Neoprene to all connections.
IMPORTANT: Opposite end of red/purple wire must be connected directly to battery
positive (+) terminal. DO NOT connect it to a switched positive (+) circuit. MerCathode
system must function continuously for proper corrosion protection.
22232
a
b
c
d
a-Orange Lead - From Electrode On Transom Assembly
b-Red/Purple Wire - Connect (Other End) To Positive (+) Battery Terminal
c-Black Wire - From Engine Harness
d-Brown Wire - From Electrode On Transom Assembly
