4.3L EFI, 5.0L EFI, 5.7L EFI, MX 6.2L MPI AND 350 MAG MPI MODELS
1. Place remote control handle(s) in neutral idle position.
IMPORTANT: Be sure that cable is routed to avoid sharp bends and/or contact with
moving parts. DO NOT fasten any items to throttle cable. Outer cable must be free to
move when cable is actuated.
2. Install cable end guide on throttle lever, then push cable barrel end lightly toward throttle
lever end. (This will place a slight preload on shift cable to avoid slack in cable when
moving remote control lever). Adjust barrel on throttle cable to align with hole in anchor
plate. Ensure hole in barrel positions cable as shown.

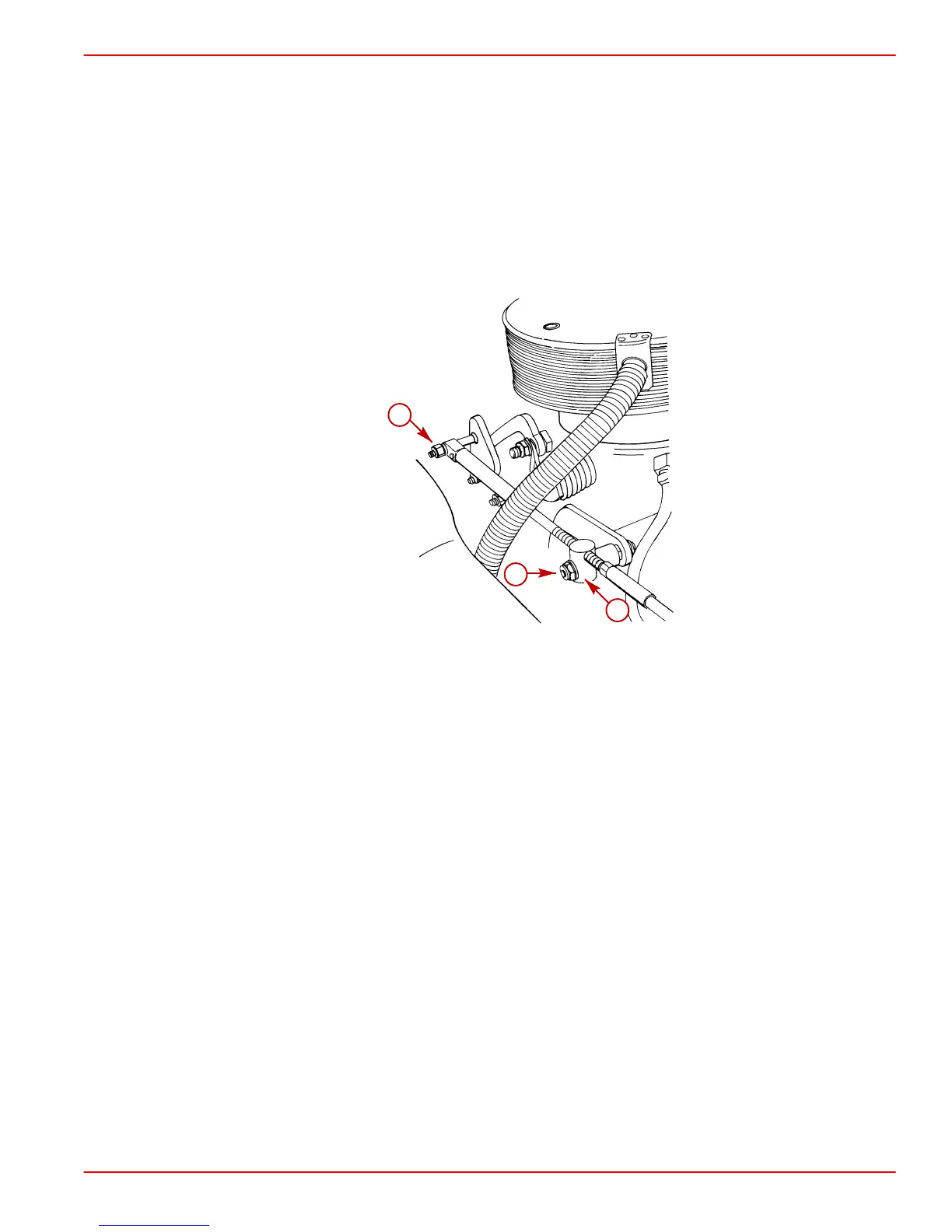

71711
a
b
c
a-Flat Washer And Locknut
b-Cable Barrel
c-Flat Washer And Locknut
3. Secure throttle cable with hardware as shown and tighten until nut contacts, then loosen
1/2 turn.
4. Place remote control throttle level in the wide open throttle (WOT) position. Ensure that
throttle plates are completely open.
5. Return remote control throttle lever to idle position and ensure that throttle lever is com-
pletely closed.
