GASOLINE ENGINES BRAVO MODELS
Page 82 of 116
IMPORTANT: The position of the Trim-In Limit Pin on the Bravo Three sterndrive unit
should only be changed after the boat has been properly tested. Refer to statement
at the front of this manual entitled; “Trim-In Limit Pin.”
IMPORTANT: To aid in installing rubber bushings, use a water and soap solution. DO
NOT use oil or grease.

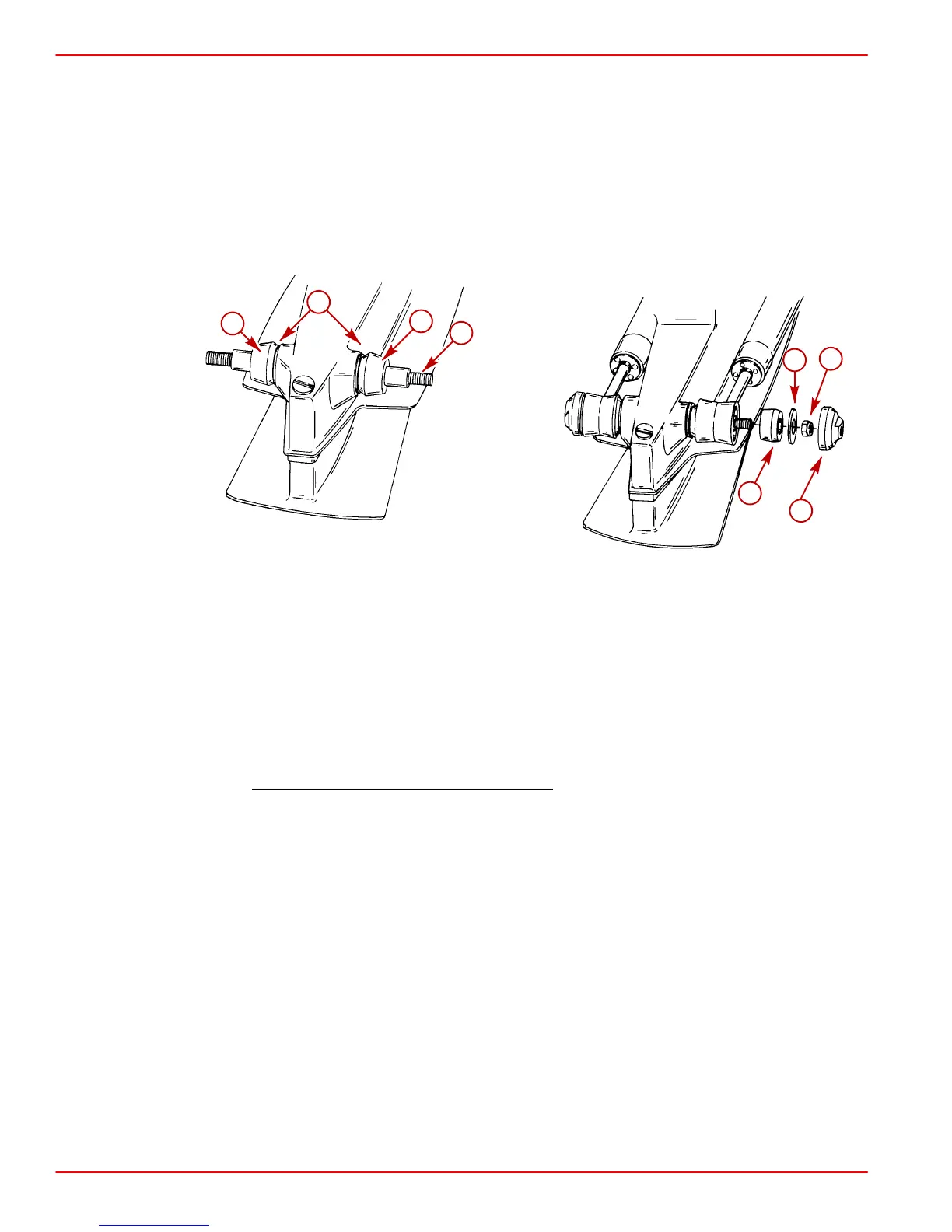

16. Install trim cylinders on aft end of sterndrive unit with hardware as shown. Coat anchor
pin threads with 2-4-C Marine Lubricant with Teflon and tighten nuts until they contact.
Install plastic caps and tighten hand tight only.
71668
71669
a
b
c
c
c
d
e
f
a-Aft Anchor Pin
b-Large l.D. Flat Washers (2)
c-Rubber Bushings (4)
d-Small l.D. Flat Washers (2)
e-Locknuts (2)
f-Plastic Caps (2)
17. Place sterndrive unit serial number decal as described in “General Information.”
18. On Bravo One and Two Sterndrive Units - Perform steps 19. through 21.
19. Raise sterndrive to gain access to area between gimbal housing and sterndrive, imme-
diately atop the transom end of the anti-ventilation plate.
