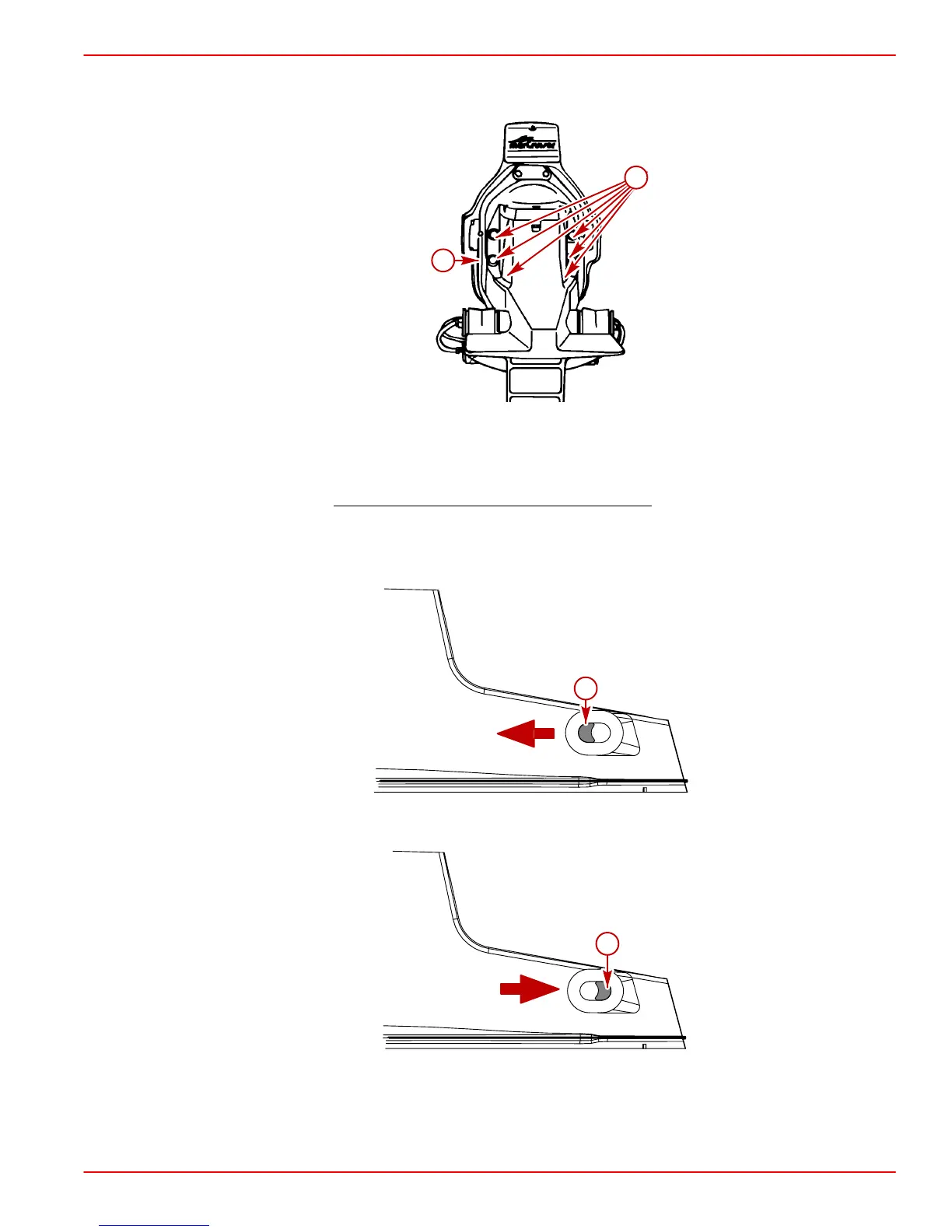

14. Secure sterndrive unit to bell housing with 5 flat washers and 6 locknuts. Torque
to 50 Ib-ft (68 Nm).
71244
b
a
a-Do Not Install Flat Washer Here
b-Elastic Stop Nuts (6) and Flat Washers (5)
IMPORTANT: On Bravo One, Two and Three Models,
the Trim-In Limit Pin must be
properly positioned before installing the trim cylinder anchor pin in the following
steps.
15. Ensure that the Trim-In Limit Pin is positioned as shown for the appropriate Bravo model.
75157
a
Bravo One and Two (Positioned Forward)
75158
a
Bravo Three (Positioned Aft)
a-Trim-In Limit Pin
