Mercusys AC12G User Manual

06
Chapter 2

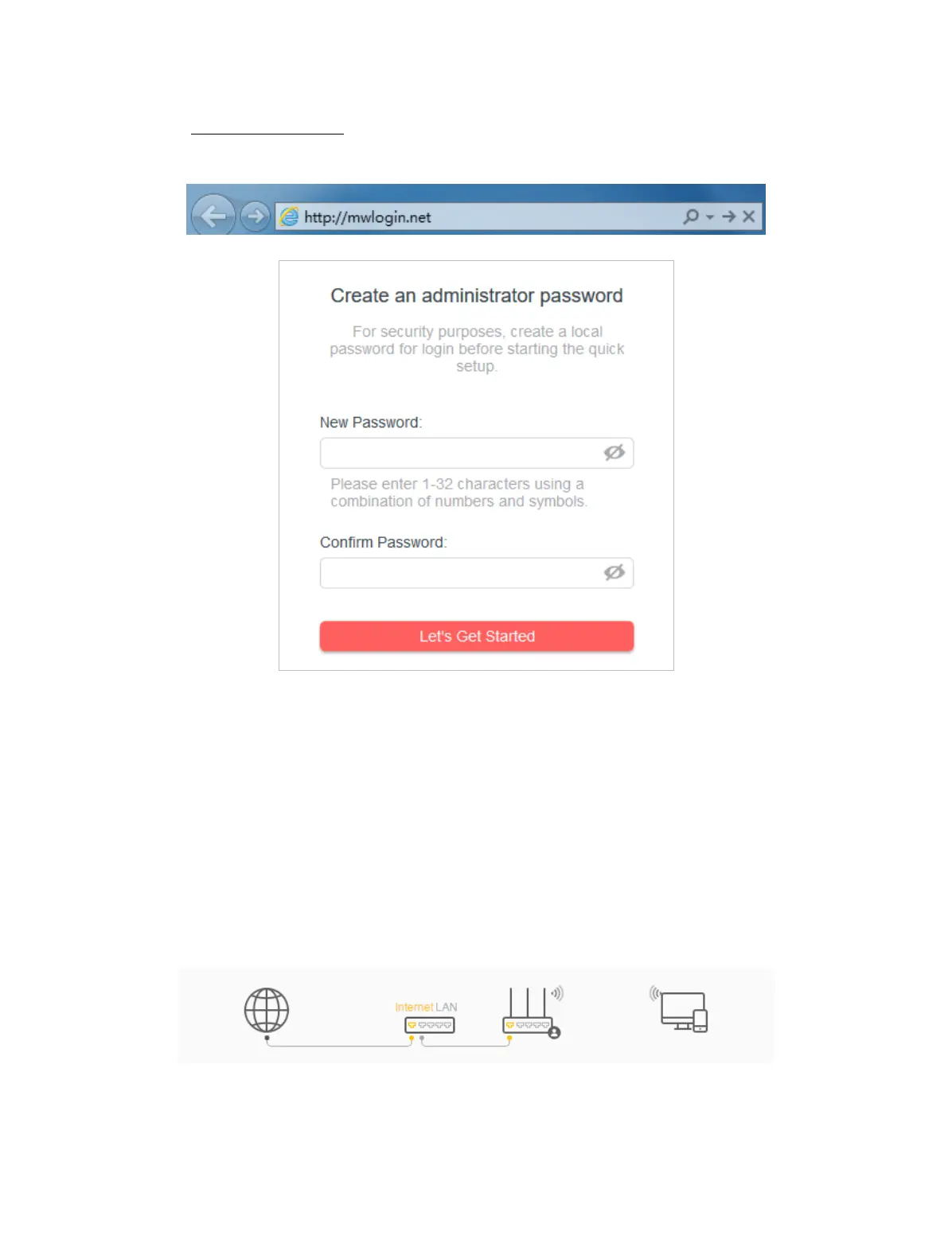

3. Enter http://mwlogin.net in the address bar of a web browser. Create a password to log
in.
Note:
If the above screen does not pop-up, it means that your IE Web-browser has been set to a proxy. Go to menu Tools >
Internet Options > Connections > LAN Settings, in the screen that appears, untick the Using Proxy checkbox, and click
OK.
4. Follow the Quick Setup to set up the internet connection.
5. Enjoy! For wireless devices, you may have to reconnect to the wireless network if you
have customized the SSID (wireless name) and password during the configuration.
2. 2. 2. Access Point Mode
In this mode, the router changes an existing wired network into a wireless one.
1. Connect the power adapter to the router.
2. Connect the router’s WAN port (recommended) to your wired host router’s LAN port via
an Ethernet cable as shown above.

Mercusys AC12G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Transmit power	20 dBmW
Antennas quantity	4
Output current	0.85 A
Output voltage	9 V
Power source type	DC
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Certification	CE, ROHS
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
